User manual Paralinx Triton 1:1 Wireless Video System 10-1271

Operating instructions and pdf manual for use - Paralinx Triton 1:1 Wireless Video System 10-1271 User manual, User manual Paralinx Triton 1:1 Wireless Video System 10-1271, Paralinx, Triton, 1:1, Wireless, Video, System, 10-1271,


User manual for Paralinx Triton 1:1 Wireless Video System 10-1271

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Paralinx Triton 1:1 Wireless Video System 10-1271
  • Manufacturer: Paralinx
  • Basic description and contents of package
  • Product classification: Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems
  • Safety instructions
  • Startup and operation of the wireless transmission systems
  • Tips for setting up your Paralinx
  • Settings and expert assistance
  • Contact Paralinx service
  • Troubleshooting
  • Warranty information
  • Price: 1000 USD
We recommend checking out our discussion threads on the Paralinx Triton 1:1 Wireless Video System 10-1271, which address similar problems with connecting and setting up Wireless Transmission Systems Paralinx.



User manual for the Paralinx Triton 1:1 Wireless Video System 10-1271

The user manual for the Paralinx Triton 1:1 Wireless Video System 10-1271 provides necessary instructions for the proper use of the product Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems.

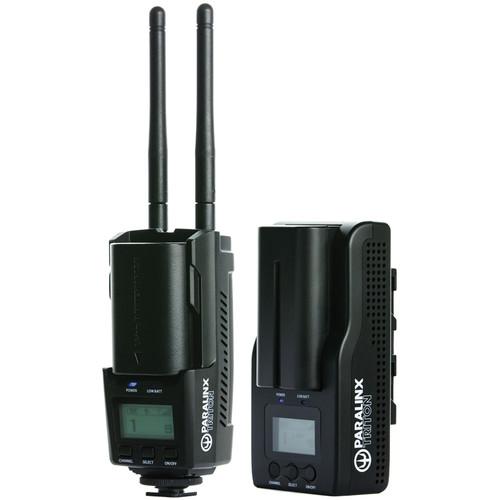

The Paralinx Triton 1:1 Wireless Video System consists of one Triton transmitter and one Triton receiver. The system transmits up to 1080p60 video with audio across 450' with a delay of less than 1 ms, allowing for near real-time monitoring and/or recording. One Triton transmitter can broadcast to an unlimited number of Triton receivers. Please note that the Triton transmitter will only work with Triton receivers, and the system supports 128-bit AES encryption to protect the security of your footage.

The Triton system features an HDMI input for video signals, and an HDMI output on the receiver. The transmitter incorporates an LP-E6 type battery plate, while the receiver incorporates an NP-F type battery plate with a pass through capability. The system operates on the license-free 5 GHz frequency band with 8 available channels. The transmitter and receiver each incorporate 1/4"-20 mounting holes, and the transmitter features a built-in cold shoe mounting foot so you can directly mount it to an optional camera with a hot/cold shoe. Both transmitter and receiver feature an LCD screen that displays signal strength, remaining battery power, and channel selection.
If you own a Paralinx wireless transmission systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Paralinx Triton 1:1 Wireless Video System 10-1271 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Paralinx Triton 1:1 Wireless Video System 10-1271:
Supported Video Up to 1080p60 4:2:2 uncompressed
Transmission Distance Line-of-Sight: 450' / 140 m
Latency Less than 1 ms
Input / Output 1x HDMI type A input
Image Resolution / Frame Rate 1080p: 60/50/30/29.97/25/24/23.98
720p: 60/50
Audio Formats I2S
PCM
SPDIF
AC-3
DTS
Dolby 5.1
Frequency Band Channels
1: 5150 MHz
2: 5190 MHz
3: 5210 MHz
4: 5230 MHz
5: 5735 MHz
6: 5755 MHz
7: 5775 MHz
8: 5795 MHz
Encryption 128-bit AES
Mounting Transmitter
Cold Shoe Mount
1/4"-20

Receiver
1/4"-20
Power Input Integrated Battery Plate
Transmitter: LP-E6 type
Receiver: NP-F type
Dimensions Transmitter: 4.6 x 2 x 1.7" / 118 x 52 x 43 mm
Receiver: 4.6 x 2.4 x 1.8" / 118 x 60.5 x 44.5 mm (without antennas)
Weight Transmitter: 4.6 oz / 130 g (without batteries)
Receiver: 4.8 oz / 136 g
Packaging Info
Package Weight 1.5 lb
Box Dimensions (LxWxH) 9.0 x 6.6 x 2.6"
The user manual for the Paralinx Triton 1:1 Wireless Video System 10-1271 can be downloaded in .pdf format if it did not come with your new wireless transmission systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Paralinx users keep a unique electronic library for Paralinx wireless transmission systemss, where you can use our link to download the user manual for the Paralinx Triton 1:1 Wireless Video System 10-1271.

The user manual lists all of the functions of the Paralinx Triton 1:1 Wireless Video System 10-1271, all the basic and advanced features and tells you how to use the wireless transmission systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Paralinx service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Paralinx Triton 1:1 Wireless Video System 10-1271. User manuals are also available on the Paralinx website under Professional Video - Camcorder & Camera Peripherals - Wireless Transmission Systems.
