User manual for Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590

Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590
  • Manufacturer: Peavey
  • Basic description and contents of package
  • Product classification: A/V Presentation - Assistive Listening - Components & Accessories
  • Safety instructions
  • Startup and operation of the components & accessories
  • Tips for setting up your Peavey
  • Settings and expert assistance
  • Contact Peavey service
  • Troubleshooting
  • Warranty information
  • Price: 40 USD
We recommend checking out our discussion threads on the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590, which address similar problems with connecting and setting up Components & Accessories Peavey.



User manual for the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590

The user manual for the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590 provides necessary instructions for the proper use of the product A/V Presentation - Assistive Listening - Components & Accessories.

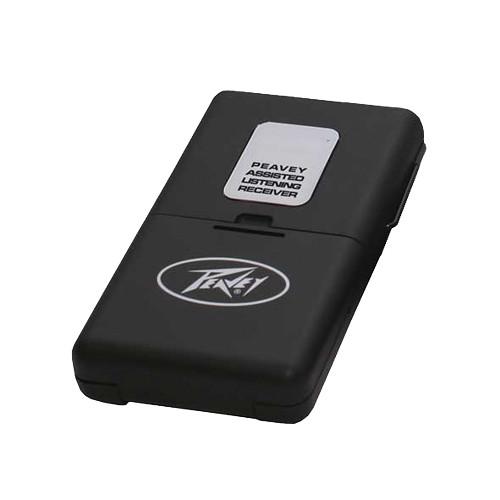

Peavey's Assisted Listening 72.9 MHz Wireless Receiver connects to Peavey Assisted Listening Transmitter. This receiver is a single channel unit with wide band modulation for quality audio. Unlike infrared listening devices, this receiver can be used outdoors and indoors in bright light without affecting performance, and has a wireless operating range of 300 feet.

The receiver operates on a single frequency in the 72.9 MHz auditory assistance band. Frequency stability is controlled by a phase locked loop synthesizer with crystal reference and accurate within +/-0.005% over 32-122°F. The receiver de-emphasis is 75 uS. The receiver has a 3.5mm headphone output jack mounted on the top panel.

The receiver is powered by two AA batteries and has an OFF/ON/VOLUME control mounted on the top panel, LED lamp to indicate battery strength, and an antenna on the earphone/ear bud cord.
If you own a Peavey components & accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590:
Specifications
    Frequency Response 100 Hz - 15 kHz, +/- 3dB
    Signal to Noise Ratio 60 dB
    Total Harmonic Distortion <0.5%
    RF Carrier Frequency 72.9 MHz
    Frequency Stability +/- 0.005%
    Modulation FM: +/- 75 kHz maximum
    Operating Range Up to 300' (100 m) line of sight
    Controls Combination VOLUME/ON-OFF wheel
    Audio Output 250 mW maximum into 16 ohms
    Connectors 3.5 mm mini jack for earphone output
    Earphone Mini binaural ear buds
    Antenna Integral with earphone cord
    Sensitivity 2 uV for 12 dB Sinad with squelch defeated, Squelches at 10 uV for min. 50 dB S-N ratio
    Mute Threshold: 8-10 uV
    Battery Life 17-20 hours with alkaline battery
    Indicators LED power on indicator
    Power Requirement Two AA batteries
    Dimensions 4.33 x 2.36 x 0.78" (110 x 60 x 20 mm)
    Weight 2.75 oz (80 g) without batteries
    Packaging Info
    Package Weight 0.2 lb
    Box Dimensions (LxWxH) 4.5 x 3.2 x 1.4"
    The user manual for the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590 can be downloaded in .pdf format if it did not come with your new components & accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Peavey users keep a unique electronic library for Peavey components & accessoriess, where you can use our link to download the user manual for the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590.

    The user manual lists all of the functions of the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590, all the basic and advanced features and tells you how to use the components & accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Peavey service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Peavey Assisted Listening 72.9 MHz Wireless Receiver 03010590. User manuals are also available on the Peavey website under A/V Presentation - Assistive Listening - Components & Accessories.
