User manual Peavey Classic 30 112 Tube Combo Amplifier 03602930

Operating instructions and pdf manual for use - Peavey Classic 30 112 Tube Combo Amplifier 03602930 User manual, User manual Peavey Classic 30 112 Tube Combo Amplifier 03602930, Peavey, Classic, 30, 112, Tube, Combo, Amplifier, 03602930,


User manual for Peavey Classic 30 112 Tube Combo Amplifier 03602930

Peavey Classic 30 112 Tube Combo Amplifier 03602930
  • Manufacturer: Peavey
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers
  • Safety instructions
  • Startup and operation of the guitar amplifiers
  • Tips for setting up your Peavey
  • Settings and expert assistance
  • Contact Peavey service
  • Troubleshooting
  • Warranty information
  • Price: 700 USD
We recommend checking out our discussion threads on the Peavey Classic 30 112 Tube Combo Amplifier 03602930, which address similar problems with connecting and setting up Guitar Amplifiers Peavey.



User manual for the Peavey Classic 30 112 Tube Combo Amplifier 03602930

The user manual for the Peavey Classic 30 112 Tube Combo Amplifier 03602930 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.

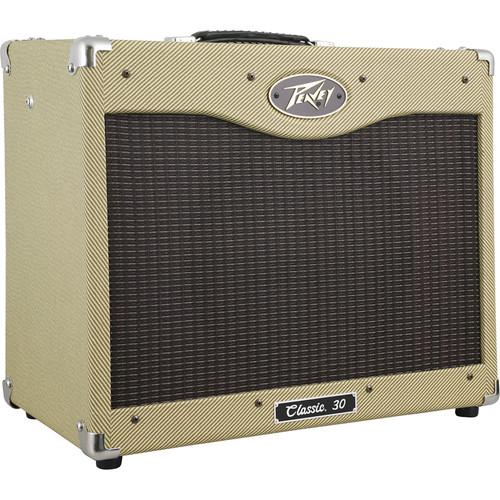

The Classic 30 112 Tube Amplifier from Peavey is a 30 watt true all-tube amplifier with a 12" speaker. Useful for blues, country and rock players alike, the Classic 30 spans the tonal landscape from vintage to contemporary sounds with ease, relying on the distinctive tone produced by the combination of its three 12AX7 and four EL84 tubes.
If you own a Peavey guitar amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Peavey Classic 30 112 Tube Combo Amplifier 03602930 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Peavey Classic 30 112 Tube Combo Amplifier 03602930:
Specifications
    Power Amp Tubes: 4x 6BQ5/EL84s with 12AX7 driver
    Speaker 1x 12" Blue Marvel, 16 ohms
    Rated Power & Load 30 W RMS into 16 or 8 ohms
    Power @ Clipping (Typically) (5% THD, 1 kHz, 120 VAC line)
    30 W RMS into l6 or 8 ohms
    (Bias must be reduced to measure.)
    Frequency Response +0, -2 dB, 50 Hz to 15 kHz, @ 20 W RMS into 16 ohms
    Hum & Noise No greater than 80 dB below rated power
    Power Consumption 150 watts, 50/60 Hz, 120 VAC (Domestic)
    Preamplifier Tubes: 2x 12AX7

    Specs are measured @ 1 kHz with the controls preset as follows:
    Pre & Post (lead): 0
    Reverb Level: 0
    Bass & Treble EQ: 12
    Middle EQ @ 0
    Channel Select Out
    Boost Switch Out
    Nominal level is with Input Gain @ 6
    Minimum level is with Input Gain @ 12
    Preamp Normal Input Impedance: Very high Z, 470 kOhms
    Lead Channel Nominal Input Level (Post Gain @ 12): -40 dBV, 10 mV RMS
    Minimum Input Level (Post Gain @ 12): -70 dBV, 0.3 mV RMS
    Normal Channel Nominal Input Level (Post Gain @ 12): -17 dBV, 140 mV RMS
    Minimum Input Level (Post Gain @ 12): -28 dBV, 40 mV RMS
    Maximum Input Level (Post Gain @ 12): 0 dBV, 1.0 V RMS
    Equalization Custom bass, middle, and treble, passive-type EQ (Lead and Normal Channels)
    Effects Send Load Impedance: 1 kOhm or greater
    Nominal Output Level: -6 dBV, 0.5 V RMS
    Effects Return Impedance: High Z, 2 MOhms
    Designed Input Level: -6 dBV, 0.5 V RMS
    (Switching jack provides effects send to effects return connection when not used.)
    Footswitch Input Jack 1: Reverb Defeat (when reverb control is raised)
    Jack 2: Normal/Lead Channel Select (when Lead activated)
    Boost on/off
    Weight 39.5 lb (17.9 kg)
    The user manual for the Peavey Classic 30 112 Tube Combo Amplifier 03602930 can be downloaded in .pdf format if it did not come with your new guitar amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Peavey users keep a unique electronic library for Peavey guitar amplifierss, where you can use our link to download the user manual for the Peavey Classic 30 112 Tube Combo Amplifier 03602930.

    The user manual lists all of the functions of the Peavey Classic 30 112 Tube Combo Amplifier 03602930, all the basic and advanced features and tells you how to use the guitar amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Peavey service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Peavey Classic 30 112 Tube Combo Amplifier 03602930. User manuals are also available on the Peavey website under Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Guitar Amplifiers.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Peavey Classic 30 112 Tube Combo Amplifier 03602930

    Post new comment to Peavey Classic 30 112 Tube Combo Amplifier 03602930

    Subject: Peavey Classic 30 112
    Date: 25.08.2022 05:13:20Author: Brent Bazzell
    Dear Peavey, I just purchased and received the above amp at a blemished price. An absolute great amp which I have owned and used other models for over fifty years. In the box this amp arrived in had everything but the paper owners manual. Could you please see fit to mail me one? My address is:
    Brent Bazzell
    1714 Valley Rd
    Clarksville, TN 37043
    P.S. I don't own a printer or I would print it off from web site.
    Thank you, Brent Bazzell
    Reply
