User manual for the Peavey HIsys 12 2-Way Speaker System (12") 03611800
The user manual for the Peavey HIsys 12 2-Way Speaker System (12") 03611800 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

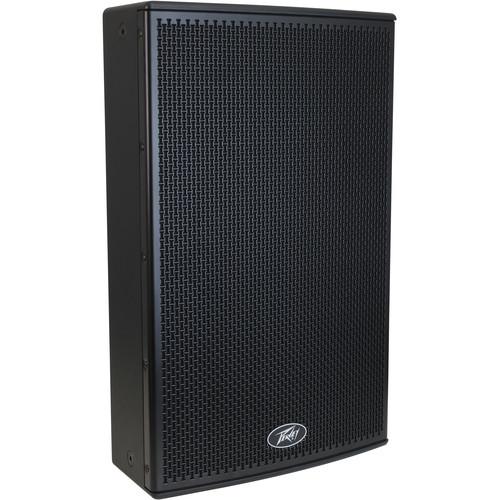

The HIsys 12 2-Way Speaker System from Peavey is a 12" powered speaker which benefits from Class-D amplification and a large aluminum plate, to strengthen the rear of each respective cabinet. The aluminum plate serves as a heat sink for the amplifier. The HIsys 12 satellite shares a rotatable horn, symmetrical design and easy cable-socket location perfect for mirror monitoring as well as standard applications. This speaker system utilizes a 1" driver and 40-bit, 96 kHz DSP for optimum performance. In addition, it has four comprehensive presets: Standard, Indoor, Monitor, and "Low Cut," the latter of which allows the enclosure to match to one of the HISYS subwoofers.
For easy transportation, the speaker comes with handles, a stand support, and sturdy birch plywood construction. It has a black opaque finish and comes with a custom-designed grille.
|
If you own a Peavey pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Peavey HIsys 12 2-Way Speaker System (12") 03611800 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Peavey HIsys 12 2-Way Speaker System (12") 03611800:
| Speaker | 12" (30.5 cm) with 2.5" (6.3 cm) voice coil | | Frequency Range | 54 Hz - 19 kHz | | Maximum SPL | 131 dB | | Power | 1200 W peak power (500 W + 100 W continuous) | | Compression Driver | 1" (25 mm) | | DSP | 96 kHz, 40-bit floating point | | Power Consumption | 200 VAC | | Coverage | 90 x 70° with rotatable horn | | Indicators and Controls | 2 x indicator, Power and Dynamic control
1 x control, Signal level
2 x switch, Mic/Line and Ground Lift | | Connectors | 1 x Combo XLR 1/4" phone jack, input
1 x Connector, Thru output | | Input Sensitivity | Line: +4 dBu
Microphone: +34 dBu | | Finish | Graphite black with epoxy high-resistant paint, birch plywood construction | | Dimensions | 28.0 x 20.0 x 16.5" (71.1 x 50.8 x 41.9 cm) | | Weight | 45.4 lb (20.6 kg) | |
