User manual for the Pelco EH2508-2 8" Outdoor Enclosure EH2508-2

The user manual for the Pelco EH2508-2 8" Outdoor Enclosure EH2508-2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housings.

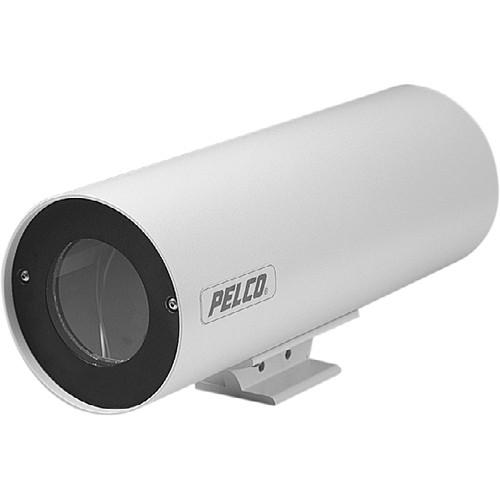

The Pelco EH2508-2 Dust-Tight Aluminum Water-Proof Enclosure is a rain and dust-proof enclosure that houses a wide range of cameras either with fixed focal length or motorized zoom lenses. It is designed to protect CCTV cameras from adverse weather conditions.

This dust-tight enclosure comprises a T-handle on the rear plate and a sled for the camera mounting to assist in the removal of the plate during installation and servicing. Additionally, its rear plate features two adjustable cable glands for unobstructed cable entry.

The enclosure's heater consists of two elements that aid in easy switch from a heater to a defroster. While the unit switches on to defog in case of a temperature drop below 70°F (21°C), it automatically changes to defrost, if the temperature falls further to 40°F (4°C).

The aluminum construction makes this enclosure compact and lightweight. It can be installed easily on pan/tilt units or fixed mounts. Its optional accessories include a sun shroud which blocks the lens from direct sunlight during day, thus preventing the images from being washed out due to harsh light.
If you own a Pelco housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco EH2508-2 8" Outdoor Enclosure EH2508-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco EH2508-2 8" Outdoor Enclosure EH2508-2:
Mount Type Ceiling/Pedestal: EM1009U / EM1015U / EM3000
Wall: EM1450 / EM2400
Pipe/Pole: EM1109 / EM2000 / EM2200
Compatible Cameras Fixed CCTV camera
Maximum Camera/Lens Size 2.8 x 5.3 x 2.8" (7 x 13.3 x 7.0 cm)
Clear or Tinted Clear
Construction Material: Aluminum with gray polyester powder coat
Window: 0.375" (0.95 cm) thick Lexan
Cable Entry: Two adjustable 1/2-NPT liquid-tight glands
Heater/Blower Dual element heater is thermostatically controlled

Defroster; activates on at 70°F (21°C), off at 85°F (29°C)

Heater; activates on at 40°F (4°C), off at 67°F (19°C)
Enclosure Rating Meets NEMA Type 4 standards
Certifications CE, Class B
Meets NEMA Type 4 standards
Meets IP66 standards
Operating Temperature -50 to 122°F (-48 to 50°C)
Power Requirements 24 VAC
Power Consumption 15W
Diameter and Height 4.3 x 8.0" (10.8 x 20.3 cm)
Weight 3.1 lb (1.4 kg)
Packaging Info
Package Weight 5.05 lb
Box Dimensions (LxWxH) 10.9 x 8.5 x 8.4"
The user manual for the Pelco EH2508-2 8" Outdoor Enclosure EH2508-2 can be downloaded in .pdf format if it did not come with your new housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco housingss, where you can use our link to download the user manual for the Pelco EH2508-2 8" Outdoor Enclosure EH2508-2.

The user manual lists all of the functions of the Pelco EH2508-2 8" Outdoor Enclosure EH2508-2, all the basic and advanced features and tells you how to use the housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pelco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pelco EH2508-2 8" Outdoor Enclosure EH2508-2. User manuals are also available on the Pelco website under Surveillance - Surveillance Video - Mounts & Housings - Housings.
