User manual Pelco EH3010 10" Enclosure EH3010

Operating instructions and pdf manual for use - Pelco EH3010 10" Enclosure EH3010 User manual, User manual Pelco EH3010 10" Enclosure EH3010, Pelco, EH3010, 10, Enclosure, EH3010, Video


User manual for Pelco EH3010 10" Enclosure EH3010

Pelco  EH3010 10
  • Manufacturer: Pelco
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Mounts & Housings - Housings
  • Safety instructions
  • Startup and operation of the housings
  • Tips for setting up your Pelco
  • Settings and expert assistance
  • Contact Pelco service
  • Troubleshooting
  • Warranty information
  • Price: 90 USD
We recommend checking out our discussion threads on the Pelco EH3010 10" Enclosure EH3010, which address similar problems with connecting and setting up Housings Pelco.



User manual for the Pelco EH3010 10" Enclosure EH3010

The user manual for the Pelco EH3010 10" Enclosure EH3010 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housings.

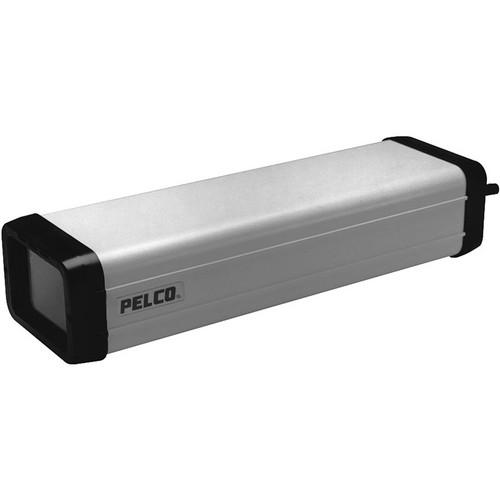

The Pelco EH3010 Enclosure, manufactured with a gray polyester powder coat finish, complements any office or business décor. The camera enclosure is designed to accommodate small-to-medium sized cameras with fixed or vari-focal lenses.

While the removable rear cap lets you easily access the slide-out platform on which the camera is mounted, the adjustable glands on the rear cap enables easy installation of the power and video cables. With the removable front cap, you get to manually adjust the camera lens without removing the camera.

The low cost indoor camera enclosure is ideal for upright or inverted use. Additionally, this enclosure can be used in fixed mount applications or mounted to a light duty pan/tilt. Besides, the 10" Enclosure can be used indoors with the PS20 Series scanner.
If you own a Pelco housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco EH3010 10" Enclosure EH3010 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco EH3010 10" Enclosure EH3010:
Indoor/Outdoor Indoor
Mount Type Ceiling/Pedestal: CM4400 / EM1009U / EM1015U / EM3000
Wall: EM1400 / EM1900U / EM2400 / EM4400
Pipe/Pole: EM1109 / EM2000 / EM2200
Motorized P/T: PT280 Series
Compatible Cameras Fixed CCTV Camera
Clear or Tinted Clear
Maximum Camera/Lens Size 3.8 x 2.8 x 8" (9.5 x 7 x 20.3cm)
Construction Material: Extruded aluminum body; injection molded black ABS plastic end caps

Finish: Gray polyester powder coat

Viewing Window: 0.125" (3.17 mm) thick Lucite SAR (Super Abrasion Resistant) acrylic

Cable Entry: Two compression glands on rear cap
Operating Temperature 32 - 120°F (0 - 49°C)
Dimensions (WxHxD) 4.7 x 3.4 x 11.5" (11.8 x 8.6 x 29.2cm)
Weight 4 lbs (1.8kg)
The user manual for the Pelco EH3010 10" Enclosure EH3010 can be downloaded in .pdf format if it did not come with your new housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco housingss, where you can use our link to download the user manual for the Pelco EH3010 10" Enclosure EH3010.

The user manual lists all of the functions of the Pelco EH3010 10" Enclosure EH3010, all the basic and advanced features and tells you how to use the housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pelco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pelco EH3010 10" Enclosure EH3010. User manuals are also available on the Pelco website under Surveillance - Surveillance Video - Mounts & Housings - Housings.
