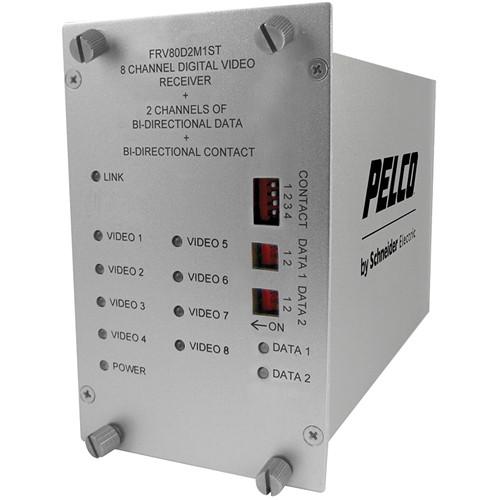

The Pelco FRV80D2M1ST Fiber Receiver is a multimode version that receives 8 channels of unidirectional video, 2 channels of bi-directional data, and 1 bi-directional contact closure over one optical fiber in a 3-slot wide design.
If you own a Pelco signal extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco FRV80D2M1ST Fiber Receiver FRV80D2M1ST in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco FRV80D2M1ST Fiber Receiver FRV80D2M1ST:
Video
Number of Channels 8
Video Input & Outputs 1.0 Vpp, 75 , NTSC, PAL, SECAM
Overload >1.5 Vpp
Bandwidth 10 Hz to 6.5 MHz per channel
Differential Gain <2%
Differential Phase <0.7°
Tilt <1%
Signal-to-Noise Ratio 67 dB at maximum optical loss budget
Coaxial Cable Capability Maximum (RG59): 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth
Power Surface Mount: 8 to 15 VDC at 4 W
Rack Mount: Supplied by rack
MTBF >100,000 hours
Indicators LED: Link, Video, Data
Data
Number of Channels 2
Data Communication RS-232, RS-422, and RS-485 (2-wire/4-wire), Manchester, and Bi-Phase
Data Rate 250 Kb/s
Contact Closure
Number of Channels 1
Interface Contact: 0.5 ms response time
Input Dry
Output SPST relay, 0.15 A contact rating, normally open
Mechanical
Connector Optical: ST
Power: Terminal block
Video: BNC (gold-plated center pin)
Data: Terminal block
Number of Rack Slots 2
Certifications & Ratings CE, Class A
FCC, Class A
C-Tick
Designed to meet NEMA TS 1/TS 2 and Caltrans traffic signal control equipment environmental standards
General
Compatible With FTV80D2M1ST Transmitter
Mode Multimode: 62.5/125 μm
Connector Type Fiber Optical: ST
Number of Fibers 1
Wavelength 1310/1550 nm
Optical Power Budget 16 dB
Maximum Transmission Distance 1.2 mi (2 km)
Operating Temperature -40 to 167°F (-40 to 75°C)
Storage Temperature -40 to 185°F (-40 to 85°C)
Relative Humidity 0 to 95%, non-condensing
Dimension (D x W x H) 6.1 × 5.3 × 3.3" (15.5 × 13.5 × 8.3 cm)
Weight 1.65 lb (0.75 kg)
