User manual Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2

Operating instructions and pdf manual for use - Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2 User manual, User manual Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2, Pelco, LRD41C222, Legacy, Variable, Speed, Receiver, LRD41


User manual for Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2

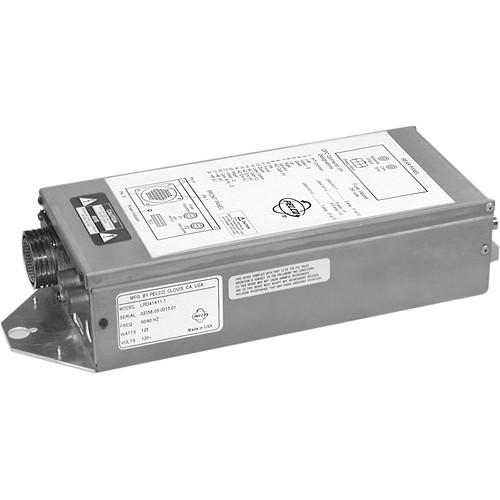

Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2
  • Manufacturer: Pelco
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Data Transmission
  • Safety instructions
  • Startup and operation of the data transmission
  • Tips for setting up your Pelco
  • Settings and expert assistance
  • Contact Pelco service
  • Troubleshooting
  • Warranty information
  • Price: 710 USD
We recommend checking out our discussion threads on the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2, which address similar problems with connecting and setting up Data Transmission Pelco.



User manual for the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2

The user manual for the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Data Transmission.

The Pelco LRD41C222 Legacy Variable Speed Receiver (24 VAC Input) transfers control data and video on the same line, and supports 8 alarm inputs/1 alarm output. Storing up to 64 preset positions, the unit can sequence between the alarm presets when multiple alarms are activated. The alarm contacts connected to the receiver can activate up to 8 presets, and the alarm inputs can activate an external device via an open collector output. The receiver can operate up to 2 remotely activated auxiliary functions.
If you own a Pelco data transmission and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2:
Specifications
    Connectors
  • RS-422 Connector: 4-position connector
  • Aux/Alarm Connector: 18-position double-stack header for interface. (Aux/Alarm mating connectors not supplied)
  • Video and Sync Connectors: BNC
  • Pan/Tilt Connector: 37-pin connector
  • Power Connector 6-position (mating connector on switch bracket)
  • Electrical
  • Input Voltage: 24 VAC
  • P/T Voltage: 12 VDC
  • Camera Voltage: 24 VAC
  • Enclosure Voltage: 24 VAC
  • Frequency: 60/50 Hz
  • Video Input: 75 ohms terminating
  • Video Output: 75 ohms terminating
  • Video Bandwidth: 10 MHz
  • Video Gain: Unity
  • Video Formats: NTSC or PAL
  • Control Method: Coaxitron, 15-bit and 32-bit protocols or 2-wire RS-422
  • D-type Control: 2400 baud only
  • P-type Control: 2400/4800/9600 baud
  • Alarm In: GND to operate, +5V or open to disable
  • Alarm Out: One open collector, TTL 5 VDC, 15-25 mA
  • Aux 1 and 2 Relay: 1 A at 24 VDC
  • Lens Output:
    - Voltage 6 VDC to 10 VDC - Current 25 mA at 10 VDC, 100 mA at 9 VDC
  • Operating Distance Coaxitron Version:
    750 ft (229 m) on RG59/U
  • Operating Distance RS-422 Version: 4,000 ft (1,219 m) on 24 AWG twisted pair (for point-to-point and daisy-chain configurations only)
  • Fuse Values F1 Input Power (LRD): 1.25A
  • Fuse values F2 Enclosure: 6.3A
  • Operating Temperature 0 - 110°F (-18 ~ +43°C)
    Dimensions (WxHxD) 4.5 x 2.8 x 11.5" (11.4 x 7 x 29.2cm)
    Weight 5 lbs (2.3kg)
    Packaging Info
    Package Weight 4.7 lb
    Box Dimensions (LxWxH) 20.0 x 9.25 x 4.75"
    The user manual for the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2 can be downloaded in .pdf format if it did not come with your new data transmission, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pelco users keep a unique electronic library for Pelco data transmissions, where you can use our link to download the user manual for the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2.

    The user manual lists all of the functions of the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2, all the basic and advanced features and tells you how to use the data transmission. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pelco service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pelco LRD41C222 Legacy Variable Speed Receiver LRD41C22-2. User manuals are also available on the Pelco website under Surveillance - Surveillance Video - Video Transmission - Data Transmission.
