User manual for the PNY Technologies NVIDIA Quadro K5200 Professional VCQK5200-PB

The user manual for the PNY Technologies NVIDIA Quadro K5200 Professional VCQK5200-PB provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Graphic Display Cards.

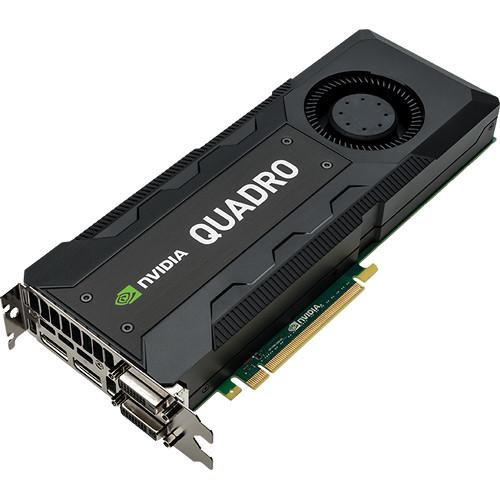

With a memory bandwidth of 192 GB/s, the NVIDIA Quadro K5200 Professional Graphics Card from PNY Technologies is designed for applications such as 3D graphics and video editing where having a dedicated graphics card is often essential. It features 2304 CUDA Cores which not only act as shaders for rendering display graphics, they also allow API-enabled applications that support GPU acceleration to perform hundreds of computations simultaneously. To help move data to and from these mini processors as efficiently as possible, there is 8GB of GDDR5 RAM over a 256-bit memory interface.

Not just for compute power, the K5200 can be used to connect displays as well. It features a DVI-I dual-link port, and a VGA to DVI adapter is included for legacy analog displays. Plus there is a DVI-D dual-link port that is exclusively for digital displays. In addition to DVI, there are two DisplayPort outputs, which have DP 1.2 support enabling the connection of 4K displays or the use of an MST hub to connect multiple displays to a single output. Finally, a second PCIe bracket is included that features a stereo connector compatible with sync hardware used by select professional 3D systems.
If you own a PNY Technologies graphic display cards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PNY Technologies NVIDIA Quadro K5200 Professional VCQK5200-PB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the PNY Technologies NVIDIA Quadro K5200 Professional VCQK5200-PB:
Specifications
    Performance
    GPU Quadro K5200
    Stream Processors (CUDA Cores) 2304
    Memory 8 GB
    Memory Type GDDR5
    Memory Interface 256-bit
    Memory Bandwidth 192 GB/s
    Connectivity
    Outputs 1 x DVI-I dual-link
    1 x DVI-D dual-link
    2 x DisplayPort (DP 1.2 and audio support)
    1 x Stereo Connector on 3-pin mini-DIN (on separate bracket from video outputs)
    Maximum Resolution DisplayPort (Direct Connection): 3840 x 2160 at 60 Hz
    DVI-I DL: 2560 x 1600 at 60 Hz
    DVI-I SL: 1920 x 1200 at 60 Hz
    VGA (DVI to VGA Adapter Supplied): 2048 x 1536 at 85 Hz
    Number of Displays Supported Direct: 4
    MST: 4 through a single DisplayPort output using separately available MST hubs
    HDCP Support Yes
    3D Support Via supplied stereo bracket
    Quadro Sync Support Yes
    System Requirements
    Software Windows: 8.1, 8, 7, Vista, XP SP3
    Linux
    Solaris
    Hardware 1 x Free PCIe expansion slot
    2 X Free PCIe slot's physical it Stereo Connector Bracket is used
    2 GB RAM (8 GB or more recommended)
    200 MB free disk space for driver installation
    Blu-ray or DVD-ROM drive to install driver from disc
    Internet connection to install driver as download
    Feature Support
    Supported APIs Graphics: Shader Model 5.0, OpenGL 4.4, DirectX 11
    Compute: CUDA, DirectCompute, OpenCL
    NVIEW Support NVIDIA Mosaic: Supported on Windows 8.1, 8, 7, and select Linux distributions
    NVIDIA 3D Vision and 3D Vision Pro: Via USB connection to 3D Vision hub
    General
    Host Interface PCIe 3.0 x16
    Thermal Solution Active fansink
    Power Consumption Maximum: 150 W
    Form Factor Dual-Slot: Full-height, full-length
    Dimensions 4.4 x 10.5" / 11.2 x 26.7 cm
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 3.35 lb
    Box Dimensions (LxWxH) 14.409 x 8.583 x 3.071"
    The user manual for the PNY Technologies NVIDIA Quadro K5200 Professional VCQK5200-PB can be downloaded in .pdf format if it did not come with your new graphic display cards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PNY Technologies users keep a unique electronic library for PNY Technologies graphic display cardss, where you can use our link to download the user manual for the PNY Technologies NVIDIA Quadro K5200 Professional VCQK5200-PB.

    The user manual lists all of the functions of the PNY Technologies NVIDIA Quadro K5200 Professional VCQK5200-PB, all the basic and advanced features and tells you how to use the graphic display cards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PNY Technologies service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PNY Technologies NVIDIA Quadro K5200 Professional VCQK5200-PB. User manuals are also available on the PNY Technologies website under Computers & Solutions - Computer Components - Graphic Display Cards.
