User manual for the Pro Co Sound MBT-1 1:1 Microphone Bridging Transformer PT1

The user manual for the Pro Co Sound MBT-1 1:1 Microphone Bridging Transformer PT1 provides necessary instructions for the proper use of the product Pro Audio - Recording - Preamp Accessories.

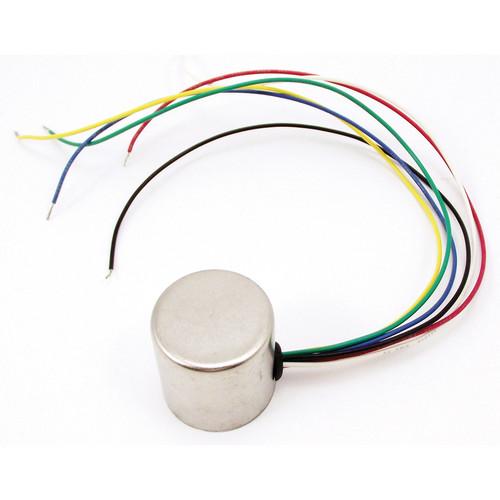

The MBT-1 Microphone Bridging Transformer from Pro Co Sound is a carefully designed, custom-built 1:1 microphone bridging transformer whose characteristics are optimized for use with balanced low-impedance microphones or similar sources. Special winding techniques and a high-permeability (80% nickel) core lamination preserve full frequency response while minimizing signal losses and other "loading" effects. MU metal can and separate electrostatic shields for primary (input) and secondary (output) windings reduce capacitive coupling of ground-borne electrical noise between main and stage monitor or recording mixers, eliminating annoying 60-Hz hum and buzz. The source impedance of the MBT-1 is very similar to that of a low impedance microphone to ensure proper matching to the input circuitry of the mixer. The result is clean transient response (minimal overshoot or ringing) and low distortion even at low frequencies and high input levels.
If you own a Pro Co Sound preamp accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pro Co Sound MBT-1 1:1 Microphone Bridging Transformer PT1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pro Co Sound MBT-1 1:1 Microphone Bridging Transformer PT1:
Performance
Voltage Loss <1.0 dB at 1.0 kHz

All measurements made with 150 ohms source and 1.0 kOhms load to simulate typical real-world microphone and mic preamps (0 dBv ref = 0.775V).

Input Impedance >1050 ohms at 1.0 kHz
>1080 ohms at 10 kHz
Nominal source impedance is 150 ohms
Source Impedance Secondary:
<270 ohms at 1.0 khz
<300 ohms at 10 khz
Nominal output impedance is 1.0 kOhms
Total Harmonic Distortion <0.03% 20 Hz to 20 kHz at -30 dBv output
<0.1% 30 Hz to 20 kHz at -15 dBv output
<0.25% 20 Hz to 20 kHz at -15 dBv output
Maximum Input Level For 1% THD:
0 dBv at 20 Hz
+4 dBv at 30 Hz
+8 dBv at 50 Hz
Frequency Response 20 Hz to 20 kHz, ± 0.5 dB at -15 dBv output
-3 dB at approximately 65 kHz
Phase Response <-20° at 20 kHz (refer 1.0 kHz)
Rise Time <4.5 μs (2.0 kHz square wave, 10 to 90%)
Overshoot <1%
Voltage Common Mode:
>1500 VRMS (maximum)
Common Mode Rejection >80 dB at 1.0 kHz
General
Turns Ratio 1:1
Impedance Ratio 150:150 ohms
Primary Impedance Source Impedance: 1.0 kOhm (typical microphone)
Secondary Impedance 1.0 kOhm (typical microphone preamp)
Shield Faraday Shield: 2 shields with separate leads
Material Core: 80% nickel alloy
Maximum Input Level At 20 Hz: 0 dBv (ref = 0.775 V)
Physical Characteristics
Package MU metal can
Termination 9.0" (228.6 mm) 28 AWG tinned copper, color-coded leads
Mounting 2 holes, 0.09375" (2.3813 mm) diameter, 0.7185" (18.2499 mm) centers

It is recommended to use only #4 Type-B self-tapping screws to mount transformer through mounting holes. They do not allow more than 0.15" of penetration into the transformer housing.

Dimensions (L x W x H) 1.125 x 1.125 x 1.050" (28.575 x 28.575 x 26.670 mm)
