User manual for Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX

Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX
  • Manufacturer: Promise Technology
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - NAS Enclosures
  • Safety instructions
  • Startup and operation of the nas enclosures
  • Tips for setting up your Promise Technology
  • Settings and expert assistance
  • Contact Promise Technology service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX, which address similar problems with connecting and setting up NAS Enclosures Promise Technology.



User manual for the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX

The user manual for the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

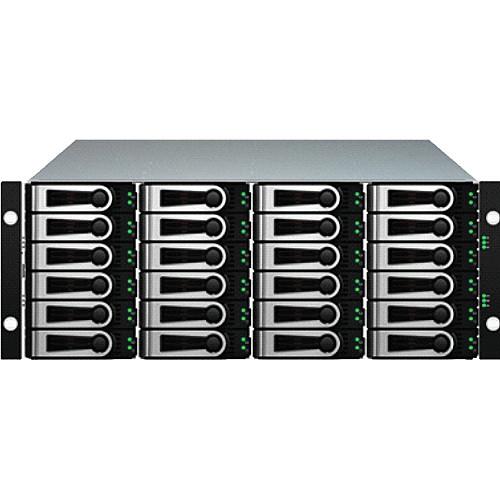

The VTrak x30 Series 6G SAS 4U 24 Bay Single Controller Expansion Chassis from Promise Technology is robust, high-availability 6G SAS JBOD storage expansion platform with single I/O module. The 4U 24 Bay Expansion Chassis allows storage applications to access their data at fast speeds, providing up to 24 Gbps of bandwidth over the external multilane 6G SAS host interface.
If you own a Promise Technology nas enclosures and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX:
Controller Single
Form Factor 4U
Compatible SAS & SATA drives, HBAs and RAID controllers
JBOD I/O Module Features
Drive Support
  • Up to twenty-four 3.5/2.5” (8.89 / 6.35 cm) HDDs or SSDs
  • SAS 6 Gbps, 3 Gbps, SATA 6 Gbps, 3 Gbps and 1.5 Gbps
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports Each SBB 2.0 I/O module has two SAS ports using mini SAS 4x wide port SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs
SAS Features
Compliance ANSI T10 SAS 2.0 and 2.1 compliant
Expander Management Features
  • Self configuring expander supports full SAS domain topology management
  • SMP - SAS management protocol
  • In-band access to expander and PHY information
  • Statistic counters and performance monitors
  • SES EM - SES enclosure management (ANSI T10 SES 2 compliant)
  • SCSI SES command set over virtual SSP device
System Management
Management Interfaces
  • LED status indicator support for drives, FRU and enclosure environmental
  • In-band SES enclosure management alerts you to out of spec operation: thermal condition, voltage condition or component failures, protects data and hardware
  • Full subsystem management CLI through out-of-band RS232 serial port
Enclosure Management Protocols SES over in-band SAS
Mechanical Specification
Voltage 100 - 240 VAC auto ranging
Current (Maximum) 15 A @ 110 VAC; 6 A @ 240 VAC
Power Conversion Efficiency >80% @ 110 V (>20% load), >80% @ 240 V (>20% load)
Temperature Range
  • Operational: 41 to 104°F (5 to 40°C)
  • Non-operational: -40 to 140°F (-40 to 60°C)
Humidity
  • Operational: 10 to 90% (non-condensing)
  • Non-operational: 5 to 95% (non-condensing)
Acoustic Noise Levels
  • 55 dB (typical)
  • 65 dB (maximum)
Shock
  • Operational: 5G, 11 mS duration
  • Non-operational: 10G, 11mS duration
Vibration
  • Operational: 0.3G, 5 to 500 Hz
  • Non-operational: 1G, 5 to 500 Hz
Safety CE, FCC Class A, UL/cUL, TUV, BSMI Class A, VCCI Class A, CB, KCC, NOM, GOST-R, IRAM, C-Tick, S-Mark
Environmental Standards RoHS, GreenPC, WEEE
Power Supply Dual 750 W, 100-240 VAC auto ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Dimensions (H x W x D) 6.9 x 17.6 x 19.96" (17.53 x 44.70 x 50.7 cm)
Weight 69 lb (31.30 kg)
The user manual for the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX can be downloaded in .pdf format if it did not come with your new nas enclosures, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Promise Technology users keep a unique electronic library for Promise Technology nas enclosuress, where you can use our link to download the user manual for the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX.

The user manual lists all of the functions of the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX, all the basic and advanced features and tells you how to use the nas enclosures. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Promise Technology service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay J830SSNX. User manuals are also available on the Promise Technology website under Computers & Solutions - Drives & Storage - NAS Enclosures.
