User manual for the Pulsar DFA75 Digital NVD Forward Attachment with 50mm PL78117

The user manual for the Pulsar DFA75 Digital NVD Forward Attachment with 50mm PL78117 provides necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Night Vision Riflescopes.

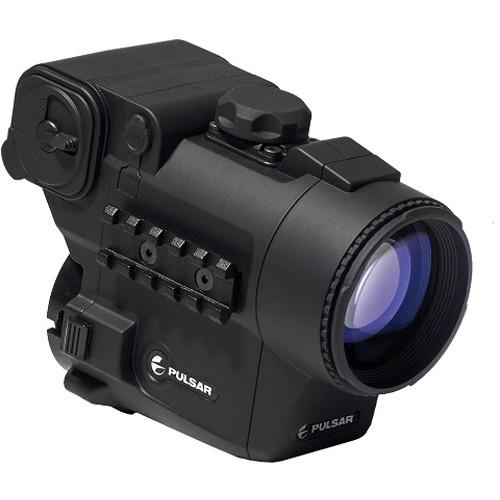

The DFA75 Night Vision Digital Forward Attachment from Pulsar is a digital night vision device that attaches to your riflescope objective and converts it to a night vision riflescope with a detection range of 437 yards. It is compatible with 50mm riflescope objectives and attaches directly to the objective using an included 50mm cover ring adapter. This NVD features a Sony ICX-255AL 0.33" CCD array which offers a resolution of 500x582 pixels and provides resistance to bright light. In addition to using the display, the video port and included cable allow to use an external monitor or a recording device.

The optical system features a 50mm f/1.1 lens system, a 1x magnification, a 5° angular field of view, a 16' minimum focus, and an exit pupil diameter of 30mm. If you are training or hunting in very low light conditions, use the included modular infrared laser to illuminate your target or game. The illuminator has three beam brightness settings, emits a 915 nm laser beam, and has a flood-beam focusing lens. If you need even more illumination, you can attach an optional illuminator to a Weaver-style mount on the right side of your DFA75.

On top of the housing, you will find an internal focusing knob for fine-tuning image sharpness. This night vision device has electronic windage and elevation adjustments and a crosshair to align its optical system with your riflescope. Additionally, to provide you with easy one-click activation, a wireless remote control is included.

The weather resistant housing is made of a very light and durable glass-nylon composite. Also included with this digital NVD attachment are one CR2032 battery for the remote control, four AA batteries, a carrying case, a protective lens cap, a spare battery container, a video cable, and a lens cloth.
If you own a Pulsar night vision riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pulsar DFA75 Digital NVD Forward Attachment with 50mm PL78117 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pulsar DFA75 Digital NVD Forward Attachment with 50mm PL78117:
Sensor Type CCD camera
CCD Type Sony ICX-255AL, 0.33"
Camera Resolution 500 x 582 pixels
Video Output CCIR / EIA
Resolution 50 lp/mm
Display Micro OLED MDP01A
VGA 640x480
Diagonal: 0.31"
Video Output Connector Pin type: 3.5mm jack
Laser 915 nm
Magnification 1x
Field of View Angular: 5°
Linear: (8.7 @ 100 m)
Lens Diameter: 50mm
Focal Length: 50mm
Exit Pupil Diameter 30 mm
Detection Range 437 yd (400 m)
Minimum Focus Distance 16' (5 m)
Battery / Runtime Main unit:
4 x AA / IR on: 1.5 hr max; no IR: 2 hr max
Remote: 1 x CR2032
External Power Supply DC output 15V, 3W
Operating Temperature -4 to 122°F (-20 to 50°C)
Weatherproofing Weather resistant
Dimensions 6.1 x 4.6 x 3.2" (155 x 117x 82 mm)
Weight 23 oz (653 g)
Packaging Info
Package Weight 5.35 lb
Box Dimensions (LxWxH) 11.2 x 9.3 x 6.2"
The user manual for the Pulsar DFA75 Digital NVD Forward Attachment with 50mm PL78117 can be downloaded in .pdf format if it did not come with your new night vision riflescopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pulsar users keep a unique electronic library for Pulsar night vision riflescopess, where you can use our link to download the user manual for the Pulsar DFA75 Digital NVD Forward Attachment with 50mm PL78117.

The user manual lists all of the functions of the Pulsar DFA75 Digital NVD Forward Attachment with 50mm PL78117, all the basic and advanced features and tells you how to use the night vision riflescopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pulsar service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pulsar DFA75 Digital NVD Forward Attachment with 50mm PL78117. User manuals are also available on the Pulsar website under Optics - Night & Thermal Vision - Night Vision Riflescopes.
