User manual Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100

Operating instructions and pdf manual for use - Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100 User manual, User manual Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100, Pyle, Pro, PQA3100, Rackmount, Stereo, Power, Amplifier, P


User manual for Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100
  • Manufacturer: Pyle Pro
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your Pyle Pro
  • Settings and expert assistance
  • Contact Pyle Pro service
  • Troubleshooting
  • Warranty information
  • Price: 130 USD
We recommend checking out our discussion threads on the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100, which address similar problems with connecting and setting up Power Amplifiers Pyle Pro.



User manual for the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100

The user manual for the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

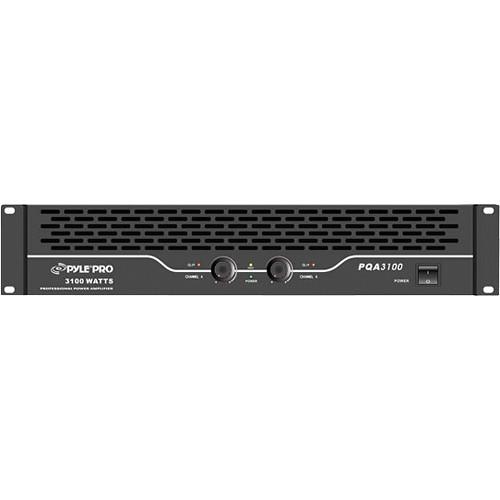

The PQA3100 Rackmount Stereo Power Amplifier (380W/Channel @ 8 Ohms) from Pyle-Pro is a professional-quality power amplifier that provides versatile operation in a compact and durable design. The amplifier has a strong metal chassis that fits into any standard 19" equipment rack. It can operate in stereo, bridged mono, or parallel modes to meet a variety of needs. A high-quality ring transformer delivers clean, clear audio.

The front panel offers individual volume controls for each channel to make convenient adjustments. The rear panel has dual RCA and 1/4" inputs, plus dual Speakon, binding post, and 1/4" outputs, allowing you to connect the amplifier to a variety of sound systems and devices. The amplifier has a soft start limiter, plus a ground-lift switch to eliminate hum. Protection circuitry keeps the amplifier running smoothly, while a variable-speed fan with an aluminum heatsink keeps internal components cool. LED indicators let you keep tabs on operating status at-a-glance.
If you own a Pyle Pro power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100:
Specifications
    Power Rating 1550W/Channel Peak, 775W/Channel RMS
    380W/Channel @ 8 Ohms Stereo
    760W/Channel @ 4 Ohms Stereo
    1520W/Channel @ 2 Ohms Bridged (2550W RMS)
    Damping Factor > 250
    Slew Rate 30V/µs
    Input Level 21dB/9V (Limiter On)
    Input Impedance 20 kOhms, Balanced
    Crosstalk > 70dB
    Frequency Response 10Hz - 50kHz (-1.5dB)
    Signal-to-Noise Ratio > 85dB
    Total Harmonic Distortion (THD) < 0.1%
    Input Connectors 2 x RCA Inputs
    2 x 1/4" Inputs
    1 x AC Power Input
    Output Connectors 2 x Speakon Outputs
    2 x 1/4" Outputs
    2 x Binding Post Outputs (2 Posts Each)
    Controls 1 x Power Switch
    2 x Volume Controls
    1 x Ground-Lift Switch
    1 x Voltage Selector Switch
    Indicators 1 x Green Power LED
    1 x Yellow Protection LED
    2 x Red Clip LEDs
    Cooling Variable-Speed Fan with Aluminum Heatsink
    Protection Short Circuit, Current Limiter, Thermal Cutoff, Slow Start Limiter, AC Line Fuse, DC Fault, Power Up/Down Transients
    Power Requirements 110-230VAC, 50/60Hz (Switchable)
    Power Consumption < 400W (Half Power @ 8 Ohms)
    Dimensions (WxDxH) 19 x 12.4 x 3.5" (482 x 314 x 88mm)
    Weight 20.9 lbs (9.5kg)
    Packaging Info
    Package Weight 18.0 lb
    Box Dimensions (LxWxH) 20.0 x 14.5 x 6.2"
    The user manual for the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Pyle Pro users keep a unique electronic library for Pyle Pro power amplifierss, where you can use our link to download the user manual for the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100.

    The user manual lists all of the functions of the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Pyle Pro service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100. User manuals are also available on the Pyle Pro website under Pro Audio - Live Sound - Power Amplifiers.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100

    Post new comment to Pyle Pro PQA3100 Rackmount Stereo Power Amplifier PQA3100

    Subject: Servicio tecnico
    Date: 04.01.2021 20:16:57Author: Salvador justicia castillo
    Hola encantado de hablar con bosotros espero que todo este bien,tengo un problema tengo 3 amplificadores modelo pyle PQA3100 y tengo los 2condensadores grandes rotos,solo pone 0004 no hay una referencia de voltajes ni nada porfavor haver si me podéis enviar alguna ayuda,o manual de componentes,estos están c27 y c26 gracias un saludo cordial
