User manual for the QSC CX-702 2 Channel Direct Output Power Amplifier CX702

The user manual for the QSC CX-702 2 Channel Direct Output Power Amplifier CX702 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Standard Amplifiers.

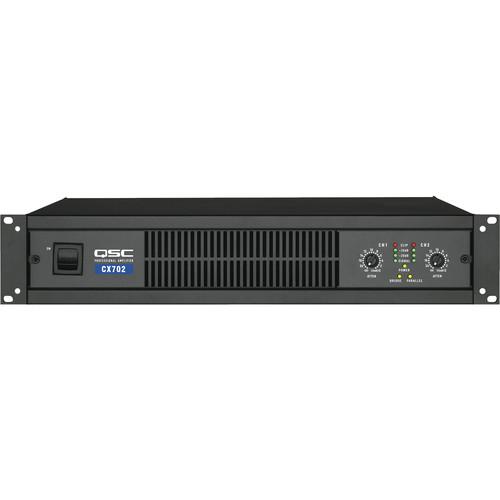

The CX-702 2 Channel Direct Output Power Amplifier from QSC is a 2 channel, low impedance 425W output amplifier. It features PowerLight switch-mode power supply technology for high performance and has an integrated security cover designed for tamper-proof installations. This unit has a variable speed fan to maintain low noise, and 1 dB detented gain controls for fast and accurate gain settings. The active inrush limiting is designed to eliminate AC inrush current, and a class H complementary bipolar output circuitry is integrated for high efficiency.

The CX-702 features XLR and detachable Euro style input connectors and a barrier strip output connector. It also has an HD15 DataPort connector for Q-Sys and QSControl computer control and monitoring, as well as a DIP switch control for clip limiters, high pass filters, bridge-mono, and parallel operation. The selectable high pass filters protect speakers and prevent speaker transformer saturation. The unit's front panel indicators include signal, clip, protect, bridge mono, and parallel input LEDs. A comprehensive protection circuitry with DC, infrasonic, thermal overload, and short circuit protection is also featured. This unit is rackmountable and 14" deep for reduced rack cost and floor space. It is RoHS compliant and cULus listed.
If you own a QSC standard amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the QSC CX-702 2 Channel Direct Output Power Amplifier CX702 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the QSC CX-702 2 Channel Direct Output Power Amplifier CX702:
Power Rating Stereo Mode (Both Channels Driven):
8 Ω: 425 W, 20 Hz - 20 kHz, 0.05% THD
4 Ω: 700 W, 20 Hz - 20 kHz, 0.05% THD
2 Ω: 1200 W, 1 kHz, 1% THD
Bridged Mono Mode:
16 Ω: 850 W, 20 Hz - 20 kHz, 0.1% THD
8 Ω: 1500 W, 20 Hz - 20 kHz, 0.1% THD
4 Ω: 2400 W, 1 kHz, 1% THD
Damping Factor >500
Input Sensitivity 1.16 V rms (+3.5 dBu) @ 8 Ω rated power
1.05 V rms (+2.6 dBu) @ 4 Ω rated power
Input Impedance Balanced: 12 kΩ
Unbalanced: 6 kΩ
Headroom 2 dB @ 4 Ω, dynamic
Input Clipping Level 10 V rms (+22 dBu)
Voltage Gain 34 dB
Output Circuit H, 2-tier
Frequency Response 20 Hz - 20 kHz, ± 0.2 dB
Noise 20 Hz - 20 kHz: >-106 dB
Distortion SMPTE-IM:
<0.02%
20 Hz - 20 kHz: 10 dB below rated power: <0.01% THD
<= 1.0 kHz: full rated power: <0.01% THD
Connectors 1 x 3-pin, power input
1 x 3-pin XLR, channel 1 input
1 x 3-pin XLR, channel 2 input
1 x 3-pin terminal block, channel 1 input
1 x 3-pin terminal block, channel 2 input
1 x HD15 15-pin, DataPort
Controls Front Panel:
1 x Channel 1 attenuation knob
1 x Channel 2 attenuation knob
1 x Power On/Off switch
Rear Panel:
1 x 10-position DIP switch, channel 1
1 x 10-position DIP switch, channel 2
1 x LF filter On/Off, channel 1
1 x LF filter On/Off, channel 2
1 x Mode selection switch (stereo / parallel / bridge)
LED Indicators 1 x Power, green
1 x Bridge, yellow
1 x Parallel, yellow
2 x Clip, red
2 x -10 dB, green
2 x -20 dB, green
2 x Signal, green
Cooling Variable-speed fan, rear-to-front air flow
Power Consumption Idle: 0.9 A
1/8 Power Pink Noise:
8 Ω: 5.0 A
4 Ω: 7.9 A
2 Ω: 11.8 A
1/3 Power Pink Noise:
8 Ω: 8.4 A
4 Ω: 13.5 A
2 Ω: 22.0 A
Dimensions (W x L x D) 19.0 x 3.5 x 14.0" (48.3 x 8.9 x 35.6 cm)
Weight 21 lb (9.5 kg)
Packaging Info
Package Weight 27.8 lb
Box Dimensions (LxWxH) 24.1 x 18.3 x 5.8"
The user manual for the QSC CX-702 2 Channel Direct Output Power Amplifier CX702 can be downloaded in .pdf format if it did not come with your new standard amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other QSC users keep a unique electronic library for QSC standard amplifierss, where you can use our link to download the user manual for the QSC CX-702 2 Channel Direct Output Power Amplifier CX702.

The user manual lists all of the functions of the QSC CX-702 2 Channel Direct Output Power Amplifier CX702, all the basic and advanced features and tells you how to use the standard amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from QSC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the QSC CX-702 2 Channel Direct Output Power Amplifier CX702. User manuals are also available on the QSC website under Pro Audio - Installation Sound - Standard Amplifiers.
