User manual QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit

Operating instructions and pdf manual for use - QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit User manual, User manual QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit, QSC, K8, 8, 2-Way, 1000, Watt, Powered, Speakers, Large, Kit,


User manual for QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit

QSC K8 8
  • Manufacturer: QSC
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your QSC
  • Settings and expert assistance
  • Contact QSC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit, which address similar problems with connecting and setting up PA Speakers QSC.



User manual for the QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit

The user manual for the QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

This Large B&H Kit features two QSC K8 8" 2-Way 1000 Watt Powered Speakers, a Mackie 802-VLZ4 8-Channel Ultra-Compact Audio Mixer, a Shure SM58-LC Dynamic Microphone, a pair of Professional DJ Headphones, three cables, two speaker tote bags, two speaker stands, a mixer bag, and a speaker stand carry bag. The speakers feature a stand-alone PA system, as well as flexible input and output mixing capabilities and two gain knobs that you can use to balance the mix. The back panel features switches that allow you to accentuate a person's speaking voice or add depth to the bass. There's even a tilting feature in its standard 35mm pole mounting socket that enables you to point the K8 down toward the audience. This large kit includes all the extra accessories you need to set up, use and transport two loudspeakers for an event or rehearsal.
If you own a QSC pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit:
Specifications

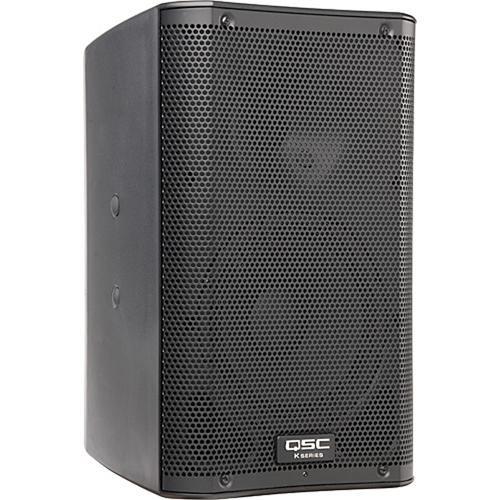

    • 2 x QSC K8 8" 2-Way 1000 Watt Powered Speaker
      Active or Passive Active
      Frequency Response 66 Hz - 18 kHz (-6 dB)
      Power Capacity 1000W Class D
      (500W LF, 500W HF)
      Maximum Sound Pressure Level (SPL) 127 dB peak (1 meter)
      Nominal Sensitivity 105° Conical (-6 dB)
      Impedance XLR & 1/4" : 40k Balanced / 20k Unbalanced
      XLR & 1/4" : Mic Mode: 2260 Balanced
      RCA : 10k
      Low Frequency Driver 8" Cone Transducer
      High Frequency Driver 1.75" Diaphragm Compression Driver
      Enclosure Material Impact Resistant ABS
      Input Connections Balanced Female XLR & 1/4" Combo, Line/Mic Level Input
      Balanced Female XLR & 1/4" Line Level Input
      Stereo RCA Line Level Input
      Dual Balanced Male XLR Full Range Line Level Output
      Balanced Male XLR "Mix" Output
      Dimensions 17.7 x 11 x 10.6" (450 x 280 x 269 mm)
      Weight 27 lbs (12.2 kg)
      Packaging Info
      Box Dimensions (LxWxH) 20.0 x 14.5 x 14.5"
    • 2 x Auray SS-4420 Steel Speaker Stand
      Height Range 46 - 76" (118 - 194 cm)
      Maximum Load Capacity 100 lb (45.36 kg)
      Mount Size 1-3/8", 1-1/2" with adapter
      Construction Steel
      Weight 8 lb (3.6 kg)
      Packaging Info
      Box Dimensions (LxWxH) 39.5 x 5.3 x 5.0"
    • 2 x Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black
      Cable Type 3-Pin XLR balanced microphone cable
      Length 25' (7.6 m)
      Shielding 98% coverage braided shield
      Gauge 24 AWG
      Contacts Silver
      Connector 1 XLR Male
      Connector 2 XLR Female
      Packaging Info
      Box Dimensions (LxWxH) 8.3 x 6.0 x 1.9"
    • Mackie 802VLZ4 8-Channel Ultra-Compact Mixer
      Noise Main Mix Noise:
      Main Mix Knob Down, Channel Level Knobs Down:
      XLR: -95 dBu
      TRS: -101 dBu

      Main Mix Knob at Unity, Channel Level Knobs Down:
      XLR: -90 dBu
      TRS: -96 dBu

      Main Mix Knob at Unity, Channel Level Knobs at Unity:
      XLR: -84 dBu
      TRS: -90 dBu

      (20 Hz to 20 kHz bandwidth, channels 1 to 3 gain at unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3 to 8 centered)
      Total Harmonic Distortion (THD) Microphone Pre at Insert: <0.001%
      (1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
      Crosstalk / Attenuation Main Mix Knob Down: -75 dBu
      Channel Alt / Mute Switch Engaged: -100 dBu
      Channel Level Knob Down: -100 dBu
      (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity)
      Frequency Response Microphone Input to Main Output (Gain at Unity):
      +0, -1 dB, 20 Hz to 50 kHz
      +0, -3 dB, <10 hz to>100 kHz
      Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
      Microphone input to insert send out, maximum gain
      Common Mode Rejection Ratio Better than -70 dB at 1 kHz
      Maximum Level Microphone In: +21 dBu
      Tape In: +22 dBu
      All Other Inputs: +22 dBu
      Main Mix XLR Out: +28 dBu
      All Other Outputs: +22 dBu
      Impedance Microphone In: 2.55 kΩ
      Channel Insert Return: 5 kΩ
      All Other Inputs: 17 kΩ or greater
      Tape Out: 1 kΩ
      Phones Out: 60 Ω
      All Other Outputs: 120 Ω
      Equalizer High Shelving: ±15 dB at 12 kHz
      Mid Peaking ±15 dB at 2.5 kHz
      Low Shelving: ±15 dB at 80 Hz
      Power Consumption 13 W, 100 to 120 VAC, 50 to 60 Hz
      Power Supply External (AC Connector): 2-Pin IEC 250 VAC
      Operating Temperature 32 to 104°F (0 to 40°C)
      Dimensions (H x W x D) 10.7 x 8.9 x 1.8" (273.0 x 227.0 x 47.0 mm)
      Weight 5.5 lb (2.5 kg) with power supply
      4.5 lb (2.0 kg) without power supply
      Packaging Info
      Box Dimensions (LxWxH) 15.8 x 12.2 x 4.3"
    • Shure SM58-LC Vocal Microphone
      Transducer Dynamic
      Polar Pattern Cardioid
      Frequency Range 50 Hz to 15 kHz
      Impedance 150 ohms
      Sensitivity -54.5 dBV @ 1 kHz
      Output Connectors 3-Pin XLR
      General
      Length 6.38" (162 mm)
      Diameter 2.01" (51 mm)
      Weight 0.656 lb (298 g)
      Packaging Info
      Box Dimensions (LxWxH) 10.158 x 4.961 x 3.465"
    • Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
      Cable Type 3-Pin XLR balanced microphone cable
      Length 6' (1.8 m)
      Shielding 95% Dual-Spiral Shielding
      Gauge 24 AWG
      Contacts Silver
      Connector 1 XLR Male
      Connector 2 XLR Female
      Packaging Info
      Box Dimensions (LxWxH) 3.5 x 0.9 x 0.2"
    • 2 x QSC K8 TOTE Soft Tote Bag
      Material Exterior: Weather-resistant, heavy-duty Cordura nylon
      Interior: Fully padded
      Type of Closure Zipper
      Exterior Dimensions Not Specified by Manufacturer
      Interior Dimensions 12.7 x 11 x 10.6" (45 x 28 x 26.9cm) (HxWxD)
      Carrying/Transport Options Carry straps
      Weight .0 lbs (1.81kg)
      Packaging Info
      Box Dimensions (LxWxH) 23.6 x 14.8 x 4.0"
    • Senal SMH-500 Professional Studio Headphones
      Type Closed back, circumaural
      Impedance 58 Ω @ 1 kHz
      Driver 40 mm, neodymium
      Maximum Input Power 1000 mW
      Distortion Less than 5% @ 1 kHz
      Sensitivity 101 dB ±3 dB (@ 1 kHz/mW)
      Packaging Info
      Box Dimensions (LxWxH) 10.9 x 7.0 x 4.5"
    • Gator Cases GPA-50 Speaker Stand Bag
      Material 600 denier nylon
      Type of Closure Zipper
      Exterior Dimensions 52 x 16 x 2.0" (132.08 x 40.64 x 5.08cm) (LxWxH)
      Carrying/Transport Options Carrying strap
      Web handles
      Weight 2.0 lbs (907g)
      Packaging Info
      Box Dimensions (LxWxH) 17.5 x 15.5 x 0.5"
    • Gator Cases G-MIXERBAG-1212 Padded Nylon Mixer/Equipment Bag
      Interior Dimensions 12.0 x 12.0 x 5.5" (305 x 305 x 140 mm)
      Exterior Dimensions 13.0 x 13.0 x 5.5" (330 x 330 x 140 mm)
      Weight 1.80 lb (0.82 kg)
      Packaging Info
      Box Dimensions (LxWxH) 17.0 x 13.8 x 3.6"
    The user manual for the QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other QSC users keep a unique electronic library for QSC pa speakerss, where you can use our link to download the user manual for the QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit.

    The user manual lists all of the functions of the QSC K8 8" 2-Way 1000 Watt Powered Speakers Large Kit, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from QSC service.
