User manual for the QSC KW152 1000W 15" Active 2-Way Loudspeaker KW152

The user manual for the QSC KW152 1000W 15" Active 2-Way Loudspeaker KW152 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

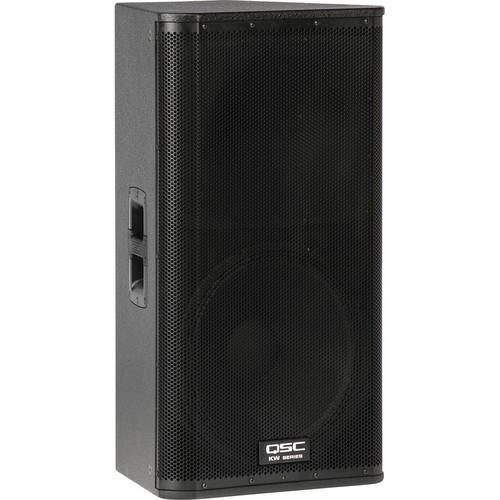

The KW152 from QSC is a professional-quality active 2-way PA loudspeaker. Ideal for music and speech applications, the lightweight and rugged birch cabinet houses a 15" woofer and a 1.75" compression tweeter to deliver crisp, natural audio with a wide frequency response. A pair of efficient Class-D amplifiers provide a combined power of 1000W for strong audio with low distortion. Directivity Matched Transition technology provides matched low and high frequency coverage across your entire listening area to eliminate "dead" and "hot" zones.

The speaker offers excellent connectivity, with XLR/TRS combo inputs and line-level RCA inputs for accepting a variety of sound sources. Up to 3 audio sources can be mixed internally and sent to the outputs. Direct XLR outputs are provided for each channel, as well as a mix output for daisy-chaining. Extensive internal DSP includes Intrinsic Correction, DEEP, and GuardRail technologies to provide terrific sonic clarity and component protection for reliable operation.

Onboard control options allow you to adjust EQ to perfectly match your surroundings and applications. You can also use the rear-panel Phoenix connector to connect an external potentiometer (not included) for remote gain control. The speaker has a standard 35mm pole socket with Tilt-Direct technology. This technology lets you simply turn a dial to give the speaker a 7.5° downward tilt to maintain maximum coverage from high mounting positions. The cabinet has integrated M10 suspension points for easy installation as well as ergonomic cast-aluminum handles for easy transport.
If you own a QSC pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the QSC KW152 1000W 15" Active 2-Way Loudspeaker KW152 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for QSC KW152 1000W 15Download user manual for QSC KW152 1000W 15" Active 2-Way Loudspeaker KW152
(PDF file, 5.11 MB)
Additional parameters of the QSC KW152 1000W 15" Active 2-Way Loudspeaker KW152:
Active or Passive Active
Frequency Response 47Hz - 18kHz (-6dB)
44Hz - 20kHz (-10dB)
Amplifier Class-D, 1000W Continuous, 2000W Peak
Maximum Sound Pressure Level (SPL) 133dB, Peak
Nominal Sensitivity Not Specified by Manufacturer
Coverage 60° Axisymmetric
Input Impedance XLR/TRS Channel A:
38 kOhms Balanced, 19 kOhms Unbalanced (0dB)
10 kOhms Balanced, 5 kOhms Unbalanced (+12dB)
2.66 kOhms Balanced, 1.33 kOhms Unbalanced (+24dB)
660 Ohms Balanced, 330 Ohms Unbalanced (+36dB)
XLR/TRS Channel B:
38 kOhms Balanced, 19kOhms Unbalanced
RCA Channel B:
10 kOhms
Crossover Not Specified by Manufacturer
Low Frequency Driver 15" Cone Woofer
High Frequency Driver 1.75" Compression Tweeter
Enclosure Material 15mm Birch Plywood, Black Textured Paint Finish, Black Powder Coated 16-Gauge Steel Grille
Controls Power
Gain A
Gain B
Channel A Input Gain (0/12/24/36dB)
LF Mode (Ext Sub/Norm/DEEP)
HF Mode (Flat/Vocal Boost)
Front LED (On/Off/Limit)
Connectors 2 x XLR/TRS Mic/Line Combo Inputs
1 x Stereo RCA Line Input
2 x XLR Line Outputs
1 x XLR Mix Output
1 x Phoenix Remote Connector
1 x Locking Power Connector
Indicators Power
Signal A
Signal B
Standby
Limit
Mic (24dB and 36dB Settings)
Cooling On Demand, 50mm Variable Speed Fan
Protection Amplifier: Thermal Limiting, Output Overcurrent, Overtemperature Muting, GuardRail
Transducer: Thermal Limiting, Excursion Limiting
Power 100-240VAC, 50/60Hz Universal Power Supply
Consumption 100VAC, 2.3A
120VAC, 2.01A
230VAC, 1.13A
Dimensions (HxWxD) 32.1 x 17.5 x 15.2" (816 x 445 x 386mm)
Weight 62 lbs (28kg)
Packaging Info
Package Weight 79.7 lb
Box Dimensions (LxWxH) 34.0 x 22.7 x 20.7"
