User manual for the QSC WL2102 WideLine-10 Line Array Speaker System WL2102-TG

The user manual for the QSC WL2102 WideLine-10 Line Array Speaker System WL2102-TG provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

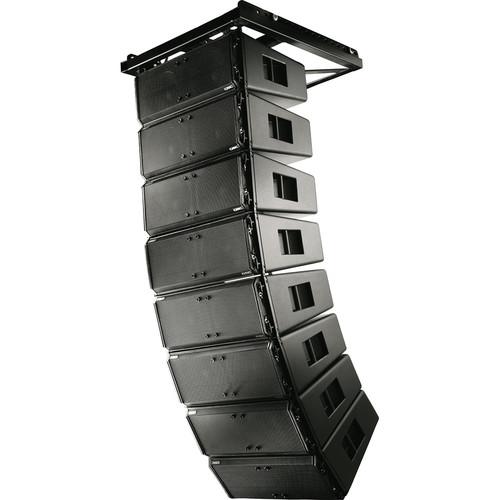

The WL2102 WideLine-10 Line Array Speaker System from QSC is a full range line array loudspeaker system designed for use in a wide variety of venues. The WideLine-10 features a wide 140° horizontal coverage pattern. It is a three transducer system and can be operated in either bi-amplified or tri-amplified modes. Both 10" diameter low frequency transducers are used to cover the lowest frequency range. One driver covers only low frequencies while the range of the other extends through the mid frequencies to the mid/high crossover point. The use of a single midrange transducer allows the horizontal coverage pattern to remain wide and to assure smooth response both on and off axis at the transition to the diffraction slot loaded high frequency section. Bi-amplification uses passive elements to affect the required frequency response shading of the low-frequency drivers and offers reduced amplifier channel counts and simplified wiring. Tri-amplification allows the required low-frequency shading to be controlled with greater precision via active electronics and is recommended where maximum output and high sound quality are required.

The WideLine-10's 16 ohm per transducer low-frequency impedance optimizes allocation of amplifier channels. In biamp mode the LF/ MF sections of up to four enclosures can be powered by one amplifier channel operating into a 2-ohm load. In tri-amp mode the LF and MF sections of up to eight enclosures can be powered by a single two channel amplifier. The high-frequency section consists of a 1.4" exit, 3" 16 ohm, neodymium compression driver, mounted on a proprietary multiple aperture diffraction slot waveguide. The mechanical design allows composite and plywood enclosures to be arrayed together. WideLine-10 features a unique 3-point suspension system allowing construction of arrays of up to 24 enclosures (5:1 design factor). A 12-enclosure hang will maintain a 10:1 design factor. Vertical splay angles between adjacent enclosures are adjustable in one degree increments from 0 to 10°.

All hardware required to construct an array is permanently attached to the enclosure. Two array frame models (sold separately) offer the user the flexibility to choose the right tool for the job. The AF2102, the larger of the two, can accommodate array sizes up 12 enclosures while maintaining a design factor of 10:1. The smaller AF2102-s does triple-duty; accommodating suspended arrays of up to six enclosures with a 10:1 design factor, acting as a base for ground-stacked arrays of up to six enclosures and as an attachment allowing WideLine-10s to be stacked atop QSC 215PCM and 215SB subwoofers.
If you own a QSC pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the QSC WL2102 WideLine-10 Line Array Speaker System WL2102-TG in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the QSC WL2102 WideLine-10 Line Array Speaker System WL2102-TG:
Configuration Bi-amp or Tri-amp mode
High Frequency Transducer 1.4" exit, 3" titanium diaphragm, neodymium magnet assembly
Low Frequency Transducer 2 x 400 W, 16 ohm 10" woofer, 3" voice coil, ceramic magnet assembly
Frequency Response 55 Hz to 18 kHz @ ±3 dB (with recommended DSP processing)
48 Hz to 20 kHz @ -10 dB (with recommended DSP processing)
Nominal Impedance HF: 16 ohms
LF Biamp Mode: 8 ohms
LF Triamp Mode: 16 ohms (x 2)
Power Capacity HF: 80 W (2 hours, AES1984-2 method, 1 to 10 kHz)
LF Biamp Mode: 600 W (2 hours, AES1984-2 method, 80 to 800 Hz)
LF Triamp Mode: 400 W (x2) (2 hours, AES1984-2 method, 80 to 800 Hz)
Recommended Power HF: 300 W @ 16 ohms
LF Biamp Mode: 1400 W @ 8 ohms
LF Triamp Mode: 700 W @ 16 ohms (x2)
Sensitivity HF: 107.5 dB (single cabinet measured in free space)
LF: 98 dB (single cabinet measured in free space. LF drivers connected in parallel)

Measured 1 W / 3.3' (1 m)

Maximum Output Continuous:
HF: 127 dB
LF: 127 dB
Peak:
HF: 133 dB
LF: 133 dB

SPL @ 3.3' (1 m)

Nominal Coverage Angle Horizontal: 140°
Vertical: Dependent on number of elements used
Cabinet Ported, trapezoidal
Enclosure Material Cored composite
Finish Black tour grade with LINE-X
Grille Perforated, formed powder coated steel
Connectors 2 x Neutrik Speakon NL8 in parallel
Attachment Integral, adjustable rigging system, vertical splay adjustable in 1° increments from 2° to 10° and 0°
Dimensions 10.75 x 27.5 x 20.25" (27.3 x 69.85 x 51.43 cm)
Weight 70 lb (31.8 kg)
The user manual for the QSC WL2102 WideLine-10 Line Array Speaker System WL2102-TG can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other QSC users keep a unique electronic library for QSC pa speakerss, where you can use our link to download the user manual for the QSC WL2102 WideLine-10 Line Array Speaker System WL2102-TG.

The user manual lists all of the functions of the QSC WL2102 WideLine-10 Line Array Speaker System WL2102-TG, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from QSC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the QSC WL2102 WideLine-10 Line Array Speaker System WL2102-TG. User manuals are also available on the QSC website under Pro Audio - Live Sound - PA Speakers.
