User manual for the Quested SM748 - Digital Crossover SM748
The user manual for the Quested SM748 - Digital Crossover SM748 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Crossovers.

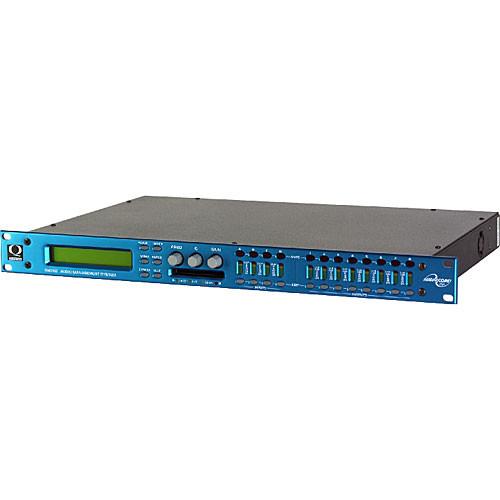

The SM748 from Quested is a four-in, eight-out digital crossover. With high-performance 24-bit digital converters and digital signal processing, the unit is able to capture and output program material with a high degree of accuracy. The converters run at 96kHz, a rate that yields a bandwidth of over 30kHz and a dynamic range in excess of 116dB.
|
If you own a Quested crossovers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Quested SM748 - Digital Crossover SM748 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Quested SM748 - Digital Crossover SM748:
Filter Type | Bessel/Butterworth/Linkwitz-Riley 12-24-48dB/8ve Bessel/Butterworth 18dB/8ve | Operating Modes | Input: 2/4 Output: 4/6/8 | Crossover Frequencies | Parametric EQ (8 per Input / 9 per Output): Gain: +15dB to -30dB in 0.1db steps Frequency: 19.7Hz to 32kHz, 136 octave steps Q/BW: 0.4 to 128 / 2.5 to 0.008 (Sections can be switched to shelving response)High and Low-pass Filters (1 of each per output): Frequency HPF: 10Hz to 16kHz, 1/36 octave steps Frequency LPF: 35Hz to 22kHz, 1/36 octave steps | Gain Range | Input: +6dB to -40dB in 0.1dB steps Output: +15dB to -40dB in 0.1dB steps and mute | Front Panel Switches | 12 x Mute buttons 12 x Channel edit buttons 6 x Utility buttons 3 x Rotary encoders | Inputs | Analog: 4 x XLRf Digital: Not specified by manufacturer | Outputs | Analog: 8 x XLRm Digital: Not specified by manufacturer | Maximum Input Level | Not specified by manufacturer | Maximum Output Level | +20dBm into 600Ω | Frequency Response | 20Hz to 20kHz, +1/2dB (-3dB @ 32kHz) | Dynamic Range | >116dB, 20Hz to 20kHz unweighted | Noise | Not specified by manufacturer | Display | 2 x 24 character LCD 2 x 6 point input and 8 x6 point output meters | Dimensions (WxDxH) | 19 x 11.8 x 1.75" (482 x 300 x 45mm) | Weight | 7.3 lbs (3.3 kg) | Specialties | Program limiter and look-ahead "D-Max" limiter per output Program Limiter: Threshold: +22dBu to -10dBu Attack: 0.3 to 90 mSec Release: 2/4/8/16/32 x Attack time D-Max Limiter: Attack: 60µS Release: Slow/Medium/Fast | |
The user manual for the Quested SM748 - Digital Crossover SM748 can be downloaded in .pdf
format if it did not come with your new crossovers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Quested users keep a unique electronic library
for Quested crossoverss,
where you can use our link to download the user manual for the Quested SM748 - Digital Crossover SM748.
The user manual lists all of the functions of the Quested SM748 - Digital Crossover SM748,
all the basic and advanced features and tells you how to use the crossovers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Quested service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Quested SM748 - Digital Crossover SM748. User manuals are also
available on the Quested website under Pro Audio - Live Sound - Crossovers.
Question and answer discussion forum concerning user instructions and resolving problems with the Quested SM748 - Digital Crossover SM748 - no comments have been made yet - be the first to add a comment
