User manual Radial Engineering PowerPre Microphone Preamplifier R700 0110

Operating instructions and pdf manual for use - Radial Engineering PowerPre Microphone Preamplifier R700 0110 User manual, User manual Radial Engineering PowerPre Microphone Preamplifier R700 0110, Radial, Engineering, PowerPre, Microphone, Preampl


User manual for Radial Engineering PowerPre Microphone Preamplifier R700 0110

Radial Engineering PowerPre Microphone Preamplifier R700 0110
  • Manufacturer: Radial Engineering
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Microphone Preamps
  • Safety instructions
  • Startup and operation of the microphone preamps
  • Tips for setting up your Radial Engineering
  • Settings and expert assistance
  • Contact Radial Engineering service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the Radial Engineering PowerPre Microphone Preamplifier R700 0110, which address similar problems with connecting and setting up Microphone Preamps Radial Engineering.



User manual for the Radial Engineering PowerPre Microphone Preamplifier R700 0110

The user manual for the Radial Engineering PowerPre Microphone Preamplifier R700 0110 provides necessary instructions for the proper use of the product Pro Audio - Recording - Microphone Preamps.

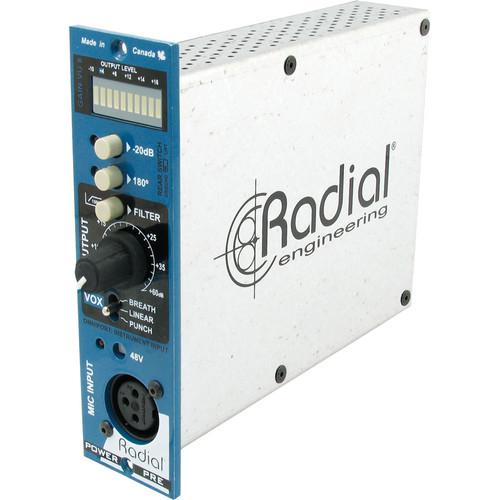

The Radial Engineering PowerPre Microphone Preamplifier is designed to be used with the Radial Workhorse and other 500 series modular racks. It features 100% discrete components for optimal signal transfer and employs a vintage Hammond broadcast output transformer for warmth and a smooth tone.
If you own a Radial Engineering microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Radial Engineering PowerPre Microphone Preamplifier R700 0110 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Radial Engineering PowerPre Microphone Preamplifier R700 0110:
Microphone Inputs
Circuit Type 100% discrete, transformer-coupled output
Microphone Input AccuState input fully variable gain control
Current Draw 130 mA (maximum draw)
Frequency Response 20 Hz to 20 kHz +0/-1 dB
Input Impedance 2.2 kΩ (1.5 kΩ with pad)
Gain Mic Preamp Gain: 55 dB
Maximum Gain 70 dB when used with Workhorse
Maximum Output 22 dBu
Output Impedance 750 at 1 kHz
Output Type Transformer isolated
Common Mode Rejection >75 dB
Equivalent Input Noise -122 dBu at maximum gain
Dynamic Range >97 dB
Total Harmonic Distortion 0.03% at mid gain with 10 dBu output
Intermodulation Distortion 0.012% at 50 dB gain with 10 dBu output
Instrument Inputs
Input Impedance 150 kΩ, unbalanced, when used with Workhorse
Gain Instrument Preamp Gain: 55 dB, unbalanced, when used with Workhorse
Equivalent Input Noise -95 dBu, unbalanced, when used with Workhorse
Total Harmonic Distortion 0.05% at mid gain with 10 dB output
Control Panel
Meter 10-segment peak indicator with hold
Pad -15 dB
Polarity Inverts pins 2 and 3 at XLR input, when used with Workhorse
General
High-Pass Filter 150 Hz cut off, -3 dB at 100 Hz
VOX Control: 3-position preset EQ
Phantom Power 48 VDC: 10 mA (as supplied by 500 frame)
Configuration XLR: AES spec: pin-1 ground, pin-2 (+), pin-3 (-)
Lift Ground Lift (Rear Panel): Lifts ground on front panel XLR input only
Mechanical
Compliance API & WHOS-Doc
Weight 1.5 lb (0.7 kg)
Packaging Info
Package Weight 1.75 lb
Box Dimensions (LxWxH) 8.9 x 6.7 x 1.4"
The user manual for the Radial Engineering PowerPre Microphone Preamplifier R700 0110 can be downloaded in .pdf format if it did not come with your new microphone preamps, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Radial Engineering users keep a unique electronic library for Radial Engineering microphone preampss, where you can use our link to download the user manual for the Radial Engineering PowerPre Microphone Preamplifier R700 0110.

The user manual lists all of the functions of the Radial Engineering PowerPre Microphone Preamplifier R700 0110, all the basic and advanced features and tells you how to use the microphone preamps. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Radial Engineering service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Radial Engineering PowerPre Microphone Preamplifier R700 0110. User manuals are also available on the Radial Engineering website under Pro Audio - Recording - Microphone Preamps.
