User manual RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1

Operating instructions and pdf manual for use - RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1 User manual, User manual RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1, RDL, Decora-Style, Active, Loudspeaker, D, Series,


User manual for RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1

RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1
  • Manufacturer: RDL
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your RDL
  • Settings and expert assistance
  • Contact RDL service
  • Troubleshooting
  • Warranty information
  • Price: 175 USD

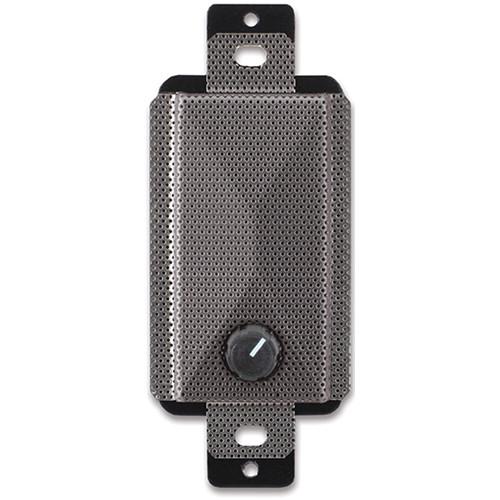

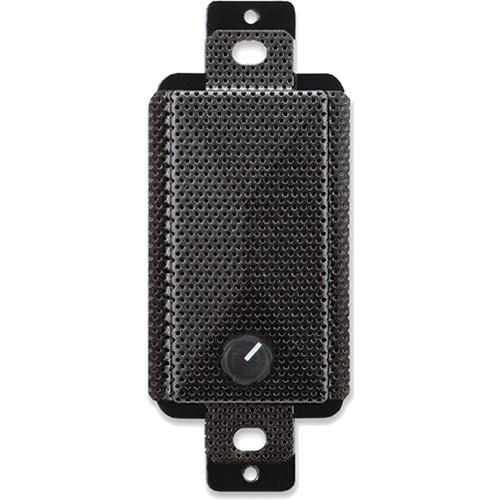

RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1 RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1 RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1 RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1
Click to enlarge image

We recommend checking out our discussion threads on the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1, which address similar problems with connecting and setting up Install Speakers RDL.



User manual for the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1

The user manual for the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

The RDL Active D-Series Loudspeaker features a black grill and is designed to deliver rich, detailed sound while in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block.

Amplification is provided by the built-in high-efficiency Class D power stage amplifier. The amplifier features audio filtering so the speaker will produce crisp quality audio. The high-efficiency Class D output stage amplifier produces negligible heat for all levels of voice or music modulation. The amplified output level is controlled by a front panel volume control. The loudspeaker includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.

The built-in driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. The benefit of this enclosure is that it's designed to provide sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.
If you own a RDL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1:
Specifications
    Inputs 30 kohm balanced or 10 kohm unbalanced
    Input Level +4 dBu nominal (balanced; -10 dBV nominal (unbalanced)
    Minimum Input Level -18 dBu (balanced, max. gain); -19 dBV (unbalanced, max. gain)
    Maximum Input Level +22 dBu
    Gain Adjustment Single turn audio taper (front panel)
    Maximum SPL 81 dB
    Frequency Range 150 Hz to 20 kHz, nominal
    CMRR > 50 dB (50 Hz to 120 Hz)
    Power Requirement 24 VDC @ 55 mA (idle); 100 mA (maximum), ground-referenced
    Ambient Operating Environment 0 to 40°F / -18 to 4°C maximum
    20°F / -7°C recommended
    Dimensions 3.6 x 4.6 x 2.1" / 9.2 x 11.7 x 5.4 cm
    Weight 0.4 lb / 0.2 kg
    The user manual for the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1 can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other RDL users keep a unique electronic library for RDL install speakerss, where you can use our link to download the user manual for the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1.

    The user manual lists all of the functions of the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from RDL service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the RDL Decora-Style Active Loudspeaker, D Series (Black) DB-PSP1. User manuals are also available on the RDL website under Pro Audio - Installation Sound - Install Speakers.
