User manual for the RDL HD-PA35UA 35W Single Input Power Amplifier HD-PA35UA

The user manual for the RDL HD-PA35UA 35W Single Input Power Amplifier HD-PA35UA provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Standard Amplifiers.

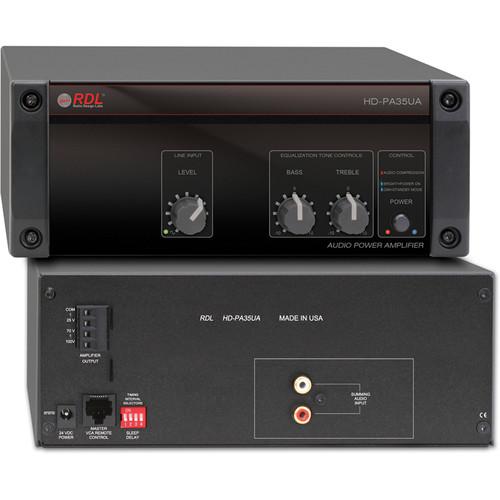

The HD-PA35UA 35W Single Input Power Amplifier from RDL provides a constant voltage output of 25V, 70V, or 100V, and is suitable for systems demanding high energy efficiency. It can be used as a single-zone amplifier fed from a variety of RDL or OEM mixers and is also suitable for providing one or more additional zones to a mix originating from another RDL HD series mixer amplifier.
If you own a RDL standard amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the RDL HD-PA35UA 35W Single Input Power Amplifier HD-PA35UA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the RDL HD-PA35UA 35W Single Input Power Amplifier HD-PA35UA:
Specifications
    Rated Power 35 W RMS
    Audio Input Unbalanced stereo summing input on RCA jacks
    Maximum Input Level +5 dBV (+11 dBV, one input); (for 1% THD+N at output)
    Input Level -15 dBV (180 mV), (to cross compressor threshold equaling 23 W amplified output, both input jacks driven)
    Noise <-75 dB (maximum gain)
    THD+N < 0.5% (1 kHz at compressor threshold)
    Compressor Threshold 2 dB below rated output, automatically adjusting attack and release times
    Frequency Response ±3 dB (50 Hz to 18 kHz)
    Tone Controls ±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front panel) with center detent
    Amplifier Power Output: 35 W RMS (25, 70, or 100 V); <1% THD+N
    Indicators Front Panel: Signal present (green), compressor activity (red), power (bright=on, dim=standby, blue)
    VCA Output level, 0 to 10 VDC control, RJ45 (compatible with RDL VCA wall controls)
    Front Panel Controls Input, EQ (bass and treble), power (momentary push button, toggle on/standby)
    Rear Panel Controls Sleep (standby) mode delay (4 binary switches)
    Efficiency Efficiency Standard Used: Energy Star requirements for audio/video version 2.0
    Sleep Mode Power Consumption <1 W (amplifier and included power supply)
    Sleep Mode Delay 10 minutes to 2 hours (switch-selectable in 10 minute increments)
    Sleep Mode Disable Selectable
    Active Mode Delay 2 sec (nominal) after input audio detected
    Audio Detector Threshold -42 dBV
    Power Supply 100 to 240 VAC, 50 to 60 Hz, 50 W; 24 VDC output to amplifier chassis
    Ambient Operating Temperature Maximum: 32 to 122°F (0 to 50°C) Recommended: 68°F (20°C)
    Dimensions (H x W x D) 3.5 x 8.5 x 10.0" (8.9 x 21.6 x 25.4 cm)
    Weight 7.3 lb (3.3 kg)
    Packaging Info
    Package Weight 9.33 lb
    Box Dimensions (LxWxH) 17.75 x 9.125 x 3.938"
    The user manual for the RDL HD-PA35UA 35W Single Input Power Amplifier HD-PA35UA can be downloaded in .pdf format if it did not come with your new standard amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other RDL users keep a unique electronic library for RDL standard amplifierss, where you can use our link to download the user manual for the RDL HD-PA35UA 35W Single Input Power Amplifier HD-PA35UA.

    The user manual lists all of the functions of the RDL HD-PA35UA 35W Single Input Power Amplifier HD-PA35UA, all the basic and advanced features and tells you how to use the standard amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from RDL service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the RDL HD-PA35UA 35W Single Input Power Amplifier HD-PA35UA. User manuals are also available on the RDL website under Pro Audio - Installation Sound - Standard Amplifiers.
