User manual for the Reloop RMX-80 Digital 4 1 Channel DJ Mixer RMX-80-DIGITAL

The user manual for the Reloop RMX-80 Digital 4 1 Channel DJ Mixer RMX-80-DIGITAL provides necessary instructions for the proper use of the product Pro Audio - DJ Equipment - DJ Mixers.

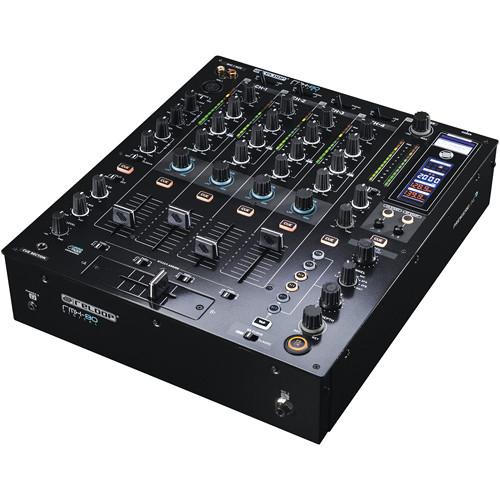

The Reloop RMX-80 Digital 4+1 Channel DJ Mixer with Built-in EFX is designed for live performance applications such as playing at parties or in the club. The fully digital mixer features 4+1 mix channels, a clear terminal panel for up to 9 signal sources, 7x line inputs, 2x phono inputs, 2x microphone inputs with active ducking technology, stereo 1/4" sends, and stereo 1/4" returns. For outputs it features two 1/4" phono headphone jacks with 1-knob headphone EQ, stereo 1/4" booth outputs, and stereo balanced XLR master outputs.

Steplessly adjustable fader and crossfader controls allow you to change the curves for scratching or mixing and the bipolar filter section with switchable kill/classic EQ controls enables extensive flexibility in adjusting the frequency spectrum. Two independent beat counters feature an intelligent tempo detect circuit to help you keep your mixes in time.

The thirteen performance effects were developed with the input of professional DJs and enable extensive live remix sessions. Globally unique time bar button allows you to directly modulate the effect parameters. Depending on the selected effect, the buttons can function to trigger loops, LFO, timing, or pitch changes. A large LCD display provides visual feedback.

For monitoring the mixer features both a classic solo cue mode as well as an extended mix cue mode that allows you to monitor several channels at the same time. A built in 3 port USB hub enables connection of an external USB soundcard or USB MIDI controller. The mixer's setup utility allows you to customize various settings including output zone routing, limiter threshold, talkover threshold, and EQ crossover frequencies.
If you own a Reloop dj mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Reloop RMX-80 Digital 4 1 Channel DJ Mixer RMX-80-DIGITAL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Reloop RMX-80 Digital 4 1 Channel DJ Mixer RMX-80-DIGITAL:
Specifications
    Type Club mixer
    Inputs
    7x RCA pairs (4 CD + 2 Line + 1 aux)
    4x phono RCA pairs with ground
    1x mic XLR and 1/4" combo jack
    1x RCA mic (switchable with aux)
    2x 1/4" return
    3x USB Type-A
    Outputs 2x XLR-3F master output
    2x 1/4" booth outputs
    2x 1/4" send outputs
    1x RCA stereo pair (left and right) master output
    1x RCA stereo pair (left and right) rec output
    1x USB Type-B
    EQ Controls EQ Range Classic: +12 dB/ < -26 dB
    EQ Range Isolator: +12 dB/ -8 dB (total kill)
    USB 1x Type B Port for connecting to computer
    3x Type A ports for connecting USB audio interfaces and MIDI controllers
    Input Impedances Line/CD: 10 kΩ / -14 dBV (200 mV)
    Phono: 47 kΩ / -50 dBV (3.16 mV)
    Aux: 10 kΩ / -14 dBV (200 mV)
    Mic 1: 6.8 kΩ / -54 dBV (1.99 mV), unbalanced
    Mic 2: 6.8 kΩ / -54 dBV (1.99 mV)
    Return: 10 kΩ / -10 dBV (316 mV), level VR at 100%
    Output Impedances Master: 1 kΩ / 0 dBV (1 V) ±2 dB
    Balanced: 600 Ω / 0 dBV (1 V) ±2 dB
    Booth: 600 Ω / 0 dBV (1 V) ±2 dB
    Rec: 1 kΩ / -10 dBV (316 mV) ±2 dB
    Send: 1 kΩ / -10 dBV (315 mV) ±2 dB
    Phones: 33 Ω / -3 dBV (708 mV) ±2 dB
    Frequency Range 20 to 20,000 Hz
    S/N Ratio Phono: 85 dB
    Line: 85 dB
    Aux: 85 dB
    DJ Mic: 90 dB
    Mic 2: 90 dB
    Kensington Lock Support Yes
    Power Supply 100 to 240 VAC at 50/60 Hz
    Dimensions (W x H x D) 12.6 x 4.3 x 15.1" (320.0 x 107.5 x 382.4 mm)
    Weight 15.2 lb (6.9 kg)
    Packaging Info
    Package Weight 18.05 lb
    Box Dimensions (LxWxH) 17.5 x 17.5 x 6.0"
    The user manual for the Reloop RMX-80 Digital 4 1 Channel DJ Mixer RMX-80-DIGITAL can be downloaded in .pdf format if it did not come with your new dj mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Reloop users keep a unique electronic library for Reloop dj mixerss, where you can use our link to download the user manual for the Reloop RMX-80 Digital 4 1 Channel DJ Mixer RMX-80-DIGITAL.

    The user manual lists all of the functions of the Reloop RMX-80 Digital 4 1 Channel DJ Mixer RMX-80-DIGITAL, all the basic and advanced features and tells you how to use the dj mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Reloop service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Reloop RMX-80 Digital 4 1 Channel DJ Mixer RMX-80-DIGITAL. User manuals are also available on the Reloop website under Pro Audio - DJ Equipment - DJ Mixers.
