User manual Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N

Operating instructions and pdf manual for use - Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N User manual, User manual Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N, Ricoh, PJ, X6180N, Installation, Projector, XGA, PJ, X6180N,


User manual for Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N

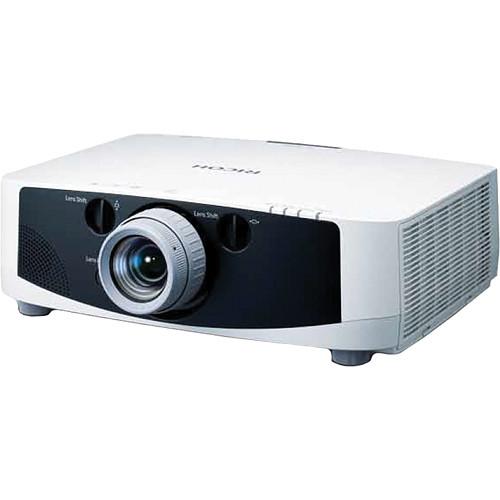

Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N
  • Manufacturer: Ricoh
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Ricoh
  • Settings and expert assistance
  • Contact Ricoh service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N, which address similar problems with connecting and setting up Multimedia Projectors Ricoh.



User manual for the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N

The user manual for the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The XGA PJ X6180N Installation Projector from Ricoh is a versatile installation projector that meets the need for bright, engaging multimedia content in lecture halls, classrooms, and conference rooms for 30 to 100 people. With an impressive 6000 lumens output, the XGA resolution delivers outstanding image quality under any lighting conditions and can project onto screens as large as 500” (diagonal).
If you own a Ricoh multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Ricoh PJ X6180N Installation Projector (XGA) PJ X6180NDownload user manual for Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N
(PDF file, 22.76 MB)
Additional parameters of the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N:
Image Display
Display System 3-Chip 0.79" / 2.01 cm Micro Lens Array (MLA) LCD
Native Resolution PC: XGA - 1024 x 768 @ 60Hz
Supported Resolutions WUXGA - 1920 x 1200
VGA - 640 x 480
Format NTSC 3.58, 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 480i
480p
576i
576p
720p
1080i
1080p
Pixels 786,432
Brightness Normal Mode: 6000 Lumens
Projection Angle 360.0°
Aspect Ratio Native: 4:3
Contrast Ratio 2000:1
DLP Link 3D Yes
Color Range 1.07 Billion
Scan Horizontal: 15 - 108 kHz
Vertical: 48 - 120 Hz
Lens
Focus Manual
Projection Size 30 - 500" / 762.00 - 12700.00 mm
Features
Keystone Correction Yes, Vertical: ± 30°
Yes, Horizontal: ± 40°
Picture-in-Picture Yes
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker Yes, 10 W (Mono)
Input/Output Connectors
Inputs/Outputs 2x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Output)
3x 1/8" (3.5 mm) Mini Audio (Input)
1x RCA Composite Video (Input)
1x 5-BNC Video (Input)
1x HDMI Audio/Video (Input)
1x DisplayPort Video (Input)
2x RCA Stereo (L/R) Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x S-Video Video
1x Mini DisplayPort Video
1x Ethernet LAN
1x USB Type-A Male (Output)
1x Proprietary Service
General
Watts Eco Mode: 264 W
Normal Mode: 330 W
Life Normal Mode: 3000 Hours
Eco Mode: 4000 Hours
Fan Noise Normal Mode: 38 dB
Eco Mode: 31 dB
Remote Control Yes
Security Cable Lock Slot
Password Protection
Security Bar
Languages Czech
Danish
Dutch
English
Finnish
French
Hungarian
Italian
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Power Requirements 100-240 VAC
Input Current 5.1 A / 2.1 A
Power Consumption Normal Mode: 464 W
Eco Mode: 372 W
Standby Mode: 16 W
Standby Mode (Network on): 6 W
Power Saving Mode: .2 W
Altitude 0 - 5500' (0 - 1676 m)
Temperature Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 20 - 80%
Dimensions (WxHxD) 19.7 x 5.7 x 14.1" / 0.5 x 0.1 x 0.4 m Not including lens
Weight 17 lb / 7.71 kg Not including lens
The user manual for the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ricoh users keep a unique electronic library for Ricoh multimedia projectorss, where you can use our link to download the user manual for the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N.

The user manual lists all of the functions of the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ricoh service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ricoh PJ X6180N Installation Projector (XGA) PJ X6180N. User manuals are also available on the Ricoh website under A/V Presentation - Projectors - Multimedia Projectors.
