User manual Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E)

Operating instructions and pdf manual for use - Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E) User manual, User manual Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E), Rokinon, Cine, DS, Wide-Angle, Lens, Kit, APS-C, Sony, E,


User manual for Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E)

Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E)
  • Manufacturer: Rokinon
  • Basic description and contents of package
  • Product classification: Professional Video - Lenses & Lens Accessories - Digital Cine Lenses
  • Safety instructions
  • Startup and operation of the digital cine lenses
  • Tips for setting up your Rokinon
  • Settings and expert assistance
  • Contact Rokinon service
  • Troubleshooting
  • Warranty information
Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E) Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E) Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E) Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E) Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E)
Click to enlarge image

We recommend checking out our discussion threads on the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E), which address similar problems with connecting and setting up Digital Cine Lenses Rokinon.



User manual for the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E)

The user manual for the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E) provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.

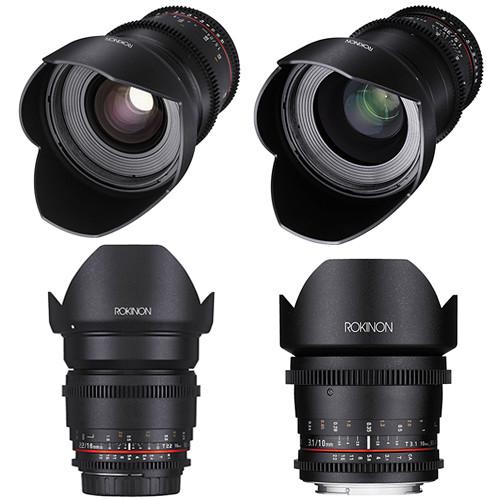

This Cine DS Wide-Angle Lens Kit for APS-C features Rokinon's 10, 16, 24, and 35mm focal length Cine DS lenses, all in a Sony E-mount. All four of the included lenses cover APS-C-sized sensors, with the 24 and 35mm lenses also covering full frame. The lenses all feature a multi-layer coating to improve contrast and reduce flare, and each lens is compared to a standard at the factory, minimizing differences in color that may arise from the multi-layer coating process. This makes for smoother intercutting between the lenses.

The internal focus design, common with cine-style lenses, means that the lens front does not rotate as you change focus. This enables the use of screw-in filters such as polarizers as well as clip-on matte boxes to be used, facilitating video shooting. The lenses feature a de-clicked iris, which is an important feature for a cine lens to have, as it allows you to pull the aperture and make smooth exposure adjustments in the shot. The lenses feature focus scales on both sides of the lens, which is a helpful aid for focus pullers, who can then pull focus from either side of the lens without having to spend time marking it up for operation from either side.
If you own a Rokinon digital cine lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E):
Specifications

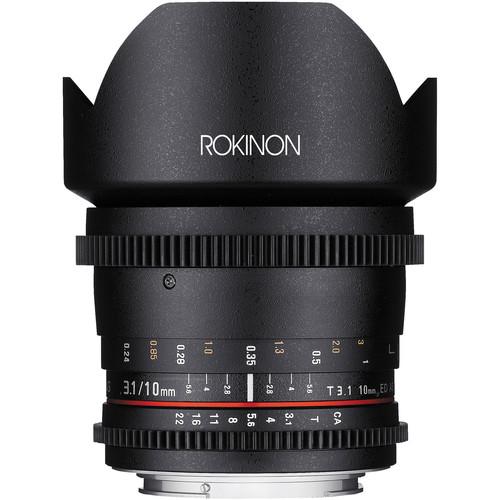

  • Rokinon 10mm T3.1 Cine DS Lens with Sony E Mount for APS-C
    Focal Length 10mm
    Aperture Maximum: T3.1
    Minimum: T22
    Lens Mount Sony E Mount
    Lens Construction 14 glass elements in 9 groups
    Iris Blades 6
    Minimum Focus Distance 9.45" / 24 cm
    Angle of View APS-C: 109.5°
    Dimensions 5.20" / 132.1 mm
    Weight 22.2 oz / 630 g
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 5.2 x 5.1"
  • Rokinon 16mm T2.2 Cine DS Lens for Sony E Mount for APS-C
    Focal Length 16mm
    Aperture Maximum: T2.2
    Minimum: T22
    Lens Mount Sony E Mount
    Lens Construction 13 glass elements in 11 groups
    Iris Blades 8
    Minimum Focus Distance 7.9" / 20.1 cm
    Angle of View APS-C: 83.1°
    Dimensions 4.54" / 115.4 mm
    Weight 21.9 oz / 620 g
    Packaging Info
    Box Dimensions (LxWxH) 7.1 x 5.1 x 5.1"
  • Rokinon 24mm T1.5 Cine DS Lens for Sony E-Mount
    Focal Length 24mm
    Aperture Maximum: T1.5
    Minimum: T22
    Lens Mount Sony E-Mount
    Lens Construction 13 glass elements in 12 groups
    Iris Blades 8
    Minimum Focus Distance 9.8" (25 cm)
    Angle of View Full-Frame: 84.1°
    APS-C: 61.8°
    Dimensions 3.27" / 83 mm, 4.86" / 123.5 mm
    Weight 22.6 oz / 640 g
    Packaging Info
    Box Dimensions (LxWxH) 7.1 x 5.3 x 5.2"
  • Rokinon 35mm T1.5 Cine DS Lens for Sony E-Mount
    Focal Length 35mm
    Aperture Maximum: T1.5
    Minimum: T22
    Lens Mount Sony E-Mount
    Lens Construction 12 glass elements in 10 groups
    Iris Blades 8
    Minimum Focus Distance 12" (30.5 cm)
    Angle of View Full-Frame: 63.1°
    APS-C: 43.2°
    Dimensions 5.36" / 137.5 mm
    Weight 25.4 oz / 720 g
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 5.2 x 5.2"
The user manual for the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E) can be downloaded in .pdf format if it did not come with your new digital cine lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rokinon users keep a unique electronic library for Rokinon digital cine lensess, where you can use our link to download the user manual for the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E).

The user manual lists all of the functions of the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E), all the basic and advanced features and tells you how to use the digital cine lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rokinon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rokinon Cine DS Wide-Angle Lens Kit for APS-C (Sony E). User manuals are also available on the Rokinon website under Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.
