User manual Roland FR-1x V-Accordion (Black) FR-1X-BK

Operating instructions and pdf manual for use - Roland FR-1x V-Accordion (Black) FR-1X-BK User manual, User manual Roland FR-1x V-Accordion (Black) FR-1X-BK, Roland, FR-1x, V-Accordion, Black, FR-1X-BK, Video


User manual for Roland FR-1x V-Accordion (Black) FR-1X-BK

Roland  FR-1x V-Accordion (Black) FR-1X-BK
  • Manufacturer: Roland
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Keyboards
  • Safety instructions
  • Startup and operation of the keyboards
  • Tips for setting up your Roland
  • Settings and expert assistance
  • Contact Roland service
  • Troubleshooting
  • Warranty information
Roland  FR-1x V-Accordion (Black) FR-1X-BK Roland  FR-1x V-Accordion (Black) FR-1X-BK

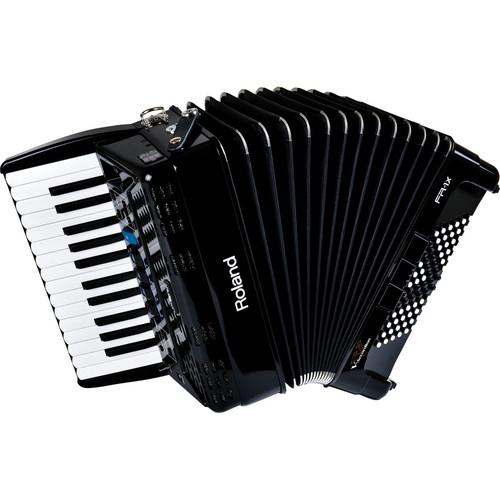

Click to enlarge image

We recommend checking out our discussion threads on the Roland FR-1x V-Accordion (Black) FR-1X-BK, which address similar problems with connecting and setting up Keyboards Roland.



User manual for the Roland FR-1x V-Accordion (Black) FR-1X-BK

The user manual for the Roland FR-1x V-Accordion (Black) FR-1X-BK provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Keyboards.

The FR-1x V-Accordion by Roland is a stylish, piano-style accordion with a professional look, sound and feel. With its compact, lightweight (14 lb) design, built-in speakers, USB functionality and advanced bellows-pressure circuitry, the FR-1x is ideal for both professionals and students alike. It comes loaded with thirty-two accordion and orchestral sounds plus four tone wheel organ presets with realistic rotary effects. As if that wasn't enough, it also includes drum/percussion sounds that can be played with the bass and chord buttons.
If you own a Roland keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Roland FR-1x V-Accordion (Black) FR-1X-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Roland FR-1x V-Accordion (Black) FR-1X-BK:
Keyboard, Bass and Bellows Right Hand

26 velocity sensitive keys (starting at B key)

Left Hand

72 bass buttons velocity sensitive

Bass & Chord Modes

2 Bs Rows
3 Bs Rows A-7th
3 Bs Rows A-5dim
3 Bs Rows B-7th
3 Bs Rows B-5dim
3 Bs Rows Bx-7th
3 Bs Rows Belgium

Free Bass Modes

Minor 3rd (37 notes Eb-Eb)
Bajan (37 notes D-D)
Fifth (36 notes C-C)
North Europe (37 notes D-C#)
Finnish (37 notes D-D)

Bellows

New pressure sensor for better sensitivity and Advanced Physical Behavior Modeling such as detection of bellows opening/closing, Bellows Resistant Regulator wheel with fine adjustment
Sound Generator Max. Polyphony

128 voices

Tones (Accordion Set)

16 Accordion Sets (including 4 User Sets)
Each one including: 14 Treble registers
7 Bass/Chord registers
7 Free Bass registers
7 Orchestra Free Bass registers
7 Orchestra Bass registers
7 Orchestra Chord registers

Reed Footages

7 Treble
5 Bass
3 Chord
2 Free Bass

Additional Sounds

Uploadable from USB memory and saved on 4 User sets
Sounds Orchestral Sounds

Strings
JazzScat1
JazzDoos
Str&Choir
Twin Trump
Trombone
FrenchHorn
Brass
Flute1
Tenor Sax2
Clarinet
Oboe
Ac Piano
Ac Guitar
Mandolin
HarpsStr

Organ Sounds

Jazz Slow/Fast
Latin Slow/Fast
HousPerc Slow/Fast
Theatre Slow/Fast

Orchestral Bass Sounds

Acoustic
Fingered
Bowed
Jazz Pedal VTW
Tuba Mix
Tuba
Fretless

Orchestral Chord Sounds

Strings
JazzDoos
Jazz VTW
R&B VTW
Steel Gtr
Ac Guitar
Ac Piano

Orchestral Free Bass Sounds

Strings
JazzDoos
Jazz VTW
Clarinet
Ac Guitar
Ac Piano
Oboe
Physical Behavior Modeling Noises

Stopping-reed growl
Closing valve noise
Left button noise

Individual Reed Simulation

Hysteresis threshold
Expression curve
Pressure variant filter
Pressure variant pitch deviation

Switching Reed Sound Wav

By bellows acceleration
By note repetition speed

Bellows Opening/Closing Sound Change

By bellows opening/closing detection
Musette Tuning Micro-Tuning Presets

Off
Dry
Classic
F-Folk
American L/H
North Europe
German L/H
D-Folk L/H
Alpine
Italian L/H
French
Scottish
Effects Reverb/Chorus 8 Types

8 types

Rotary for Organ Sound

Slow/Fast
Controls Knob Controls and Registers

Volume
4x Treble/Orchestra/Organ + Set

Switches

Drum On/Off
Orchestra On/Off
Organ On/Off
Free Bass On/Off
Orchestra Bass On/Off
Orchestra Chord/Free Bass On/Off
User Programs On/Off
Wave/MP3 player: Reset/Stop, Play/Pause, Power
Operation Modes User Programs

8 memories

Orchestra/Organ Mode

Solo
Dual

Octave

Down
0
Up for Treble
Orchestra/Organ

Metronome

On/Off

Bass&Chord with Drum/Percussion Sounds

On/Off for Bass/Orch Bass 2 rows
Chord/Orchestra Chord 4 rows

Audio Player


MP3/Wave player from USB memory

Bass to Treble Mode

On/Off
Display 7 segments, 3 characters (LED)
Rated Power Output 2 x 7 W
Speakers 2 x 9 cm
Wave Expansion 2 internal areas (8 MB each) to load new sounds
Power Supply AC adaptor (included)
Batteries (not included) AA-type rechargeable Ni-MH x 8
Expected Battery Life 5 hours (speaker ON mode)
8 hours (speaker OFF mode)

Using Ni-MH 2000mAh batteries

Connectors Output: L/Mono (Treble), R/Mono (Bass): 1/4"
Headphones: 1/4"
MIDI: Out
USB Memory: Type A
USB: Type B
DC IN
Color Black
Dimensions (WxDxH) 15.94 x 14.37 x 7.67" (40.5 x 36.5 x 19.5 cm)
Weight 14.6 lb (6.5 kg)
Packaging Info
Package Weight 21.5 lb
Box Dimensions (LxWxH) 22.5 x 20.3 x 14.0"
The user manual for the Roland FR-1x V-Accordion (Black) FR-1X-BK can be downloaded in .pdf format if it did not come with your new keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Roland users keep a unique electronic library for Roland keyboardss, where you can use our link to download the user manual for the Roland FR-1x V-Accordion (Black) FR-1X-BK.

The user manual lists all of the functions of the Roland FR-1x V-Accordion (Black) FR-1X-BK, all the basic and advanced features and tells you how to use the keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Roland service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Roland FR-1x V-Accordion (Black) FR-1X-BK. User manuals are also available on the Roland website under Pro Audio - Musical Instruments - Keyboards.
