User manual for the Roland S-1608 16x8 Stage Unit Digital Snake System S-1608

The user manual for the Roland S-1608 16x8 Stage Unit Digital Snake System S-1608 provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixer Accessories.

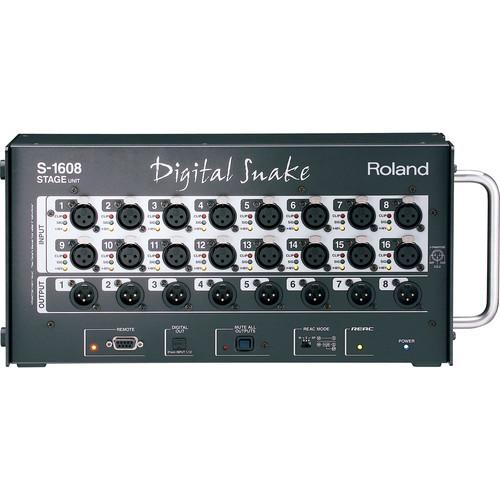

The S-1608 16x8 Stage Unit Digital Snake System from Roland is a small format audio snake solution that offers 24-bit/96 kHz audio quality. It can be used in applications for bands, corporate A/V events, seminars, rental and staging houses, and broadcasters who need the best possible sound quality from their audio without the high frequency losses and bulk of an analog snake.
If you own a Roland digital mixer accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Roland S-1608 16x8 Stage Unit Digital Snake System S-1608 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Roland S-1608 16x8 Stage Unit Digital Snake System S-1608:
Specifications
Number of Channels 16 in 8 out
AD/DA Conversion 24-Bit/96 kHz
Frequency Response -2 dB / +0 dB (@ +4 dBu, 20 Hz to 20 kHz)
Total Harmonic Distortion (THD) + N 0.05 % or less (Pad: On, Input Gain: +4 dBu, 22 Hz to 20 kHz)
Dynamic Range 110 dB
Cross Talk -80 dB or less (Input Gain: +4 dBu, typ.)
Nominal Input Level 65 to -10 dBu
PAD Off: -45 to +10 dBu
PAD On: 1 dB step, Max. +28 dBu)
Pad 20 dB On/Off
Input Impedance 14 kOhms
Nominal Output Level +4 dBu, max. +22 dBu
Output Impedance 600 ohms
Recommended Load Impedance 10 kOhms or greater
Residual Noise IHF-A, Typ: -80 dBu or less
Equivalent Input Noise -128 dB
Network Latency 375 ms when using REAC cable only (AD > REAC > DA Latency: approx 1.2 ms)
Input Connectors Analog: 16x XLR type, balanced, phantom power
Output Connectors Analog: 8x XLR type, balanced
Digital Output Connector: 1 (optical type)
REAC Connector: 1 RJ-45 EtherCon type
Remote Connector: RS-232C, DB-9 type
Indicators 1x Power
1x REAC
1x Remote
1x Mute all outputs indicator
Power Supply AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption 45 W
Phantom Power +48 V / 14 mA (each input, remote controlled)
Operation Temperature 32 to 104°F (0 to 40°C)
Dimensions (W x D x H) 15.8 x 5.31 x 6.97" (401 x 135 x 177 mm)
Weight 12.1 lb (5.5 kg)
Packaging Info
Package Weight 15.2 lb
Box Dimensions (LxWxH) 20.0 x 11.0 x 10.0"
