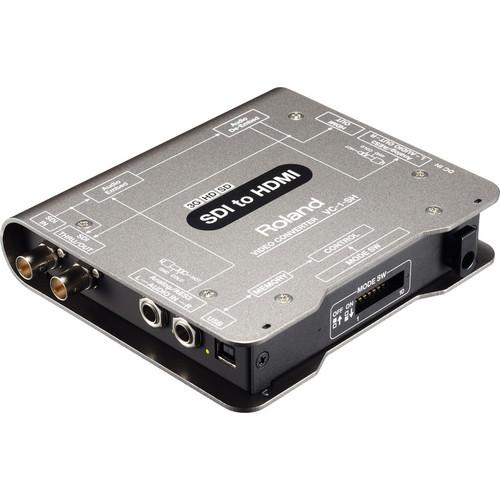

The Roland VC-1-SH SDI to HDMI Video Converter allows SDI video to be monitored using relatively inexpensive HDMI-equipped displays, and can also serve and an audio embedder and de-embedder. The internal processing has been designed to faithfully preserve the incoming SDI signal and frame rate without introducing interlacing artifacts, signal errors, or reducing the dynamic range of the image. The SDI signal is re-clocked before processing to help ensure best performance.

The VC-1-SH features an SDI input that supports 3G-SDI, HD-SDI, and SD-SDI. A hybrid balanced stereo analog and AES3 audio input allows additional audio sources to be embedded in the HDMI output. For local monitoring there is an HDMI out that can be used with standard, consumer-grade HDMI displays. In addition, the there is an SDI loop-out that also passes any newly embedded audio. A hybrid analog/AES audio output allows you to locally monitor any embedded audio in case audio output is not provided by the HDMI display--this includes audio embedded within the VC-1-SH.
If you own a Roland signal converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Roland VC-1-SH SDI to HDMI Video Converter VC-1-SH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Roland VC-1-SH SDI to HDMI Video Converter VC-1-SH:
Specifications
    Inputs 1 x 3G-SDI on BNC female
    2 x Analog audio on balanced 1/4" TRS female - L/R stereo pair
    1 x Digital audio on balanced 1/4" TRS female - shares input with "R" channel analog input
    Output 1 x 3G-SDI loop-out on BNC female
    1 x HDMI
    2 x Analog audio on balanced 1/4" TRS female - L/R stereo pair
    1 x AES/EBU digital audio on balanced 1/4" TRS female - shares input with "R" channel analog input
    SDI Standards SMPTE 424M (Level A and B), 425M-AB, 299M, 296M, 292M, 274M, 272M-C, 259M-C; ITU-R BT.601-5
    Audio Formats SDI: Linear PCM; 24-bit, 48 kHz, 16 channels
    HDMI: Linear PCM; 24-bit, 48 kHz, 8 channels AES/EBU: 110 ohm; AES3; 16 or 24-bit, 32 or 48 kHz, 2 channels
    Analog Input: 110 ohm; +4 to +24 dBu
    Analog Output: 600 ohm; +4 dBu
    Supported Resolutions 1920 x 1080: 60p, 59.94p, 50p, 30p/29.97p, 25p, 24p, 23.98p, 60i, 59.94i, 50i
    1280 x 720: 60p, 59.94p, 50p, 30p, 29.97p, 25p
    720 x 576: 50i
    720 x 480: 59.94i
    USB 1 x USB 2.0 type B
    Power Requirements 9 VDC
    Power Consumption 8 W
    Operation Temperature 32 to 104˚F / 0 to 40˚C
    Dimensions (W x D x H) 5.9 x 5.1 x 1.2" / 15.1 x 13 x 3 cm
    Weight 1.1 lb / 0.5 kg
    Packaging Info
    Package Weight 2.3 lb
    Box Dimensions (LxWxH) 11.0 x 10.2 x 2.8"
    The user manual for the Roland VC-1-SH SDI to HDMI Video Converter VC-1-SH can be downloaded in .pdf format if it did not come with your new signal converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Roland users keep a unique electronic library for Roland signal converterss, where you can use our link to download the user manual for the Roland VC-1-SH SDI to HDMI Video Converter VC-1-SH.

    The user manual lists all of the functions of the Roland VC-1-SH SDI to HDMI Video Converter VC-1-SH, all the basic and advanced features and tells you how to use the signal converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Roland service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Roland VC-1-SH SDI to HDMI Video Converter VC-1-SH. User manuals are also available on the Roland website under Professional Video - Signal Processing & Distribution - Signal Converters.
