User manual Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69

Operating instructions and pdf manual for use - Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69 User manual, User manual Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69, Rolls, RM69, MixMate, 3, 6-Channel, Stereo, Line


User manual for Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69
  • Manufacturer: Rolls
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Sound Mixers
  • Safety instructions
  • Startup and operation of the install sound mixers
  • Tips for setting up your Rolls
  • Settings and expert assistance
  • Contact Rolls service
  • Troubleshooting
  • Warranty information
  • Price: 150 USD
We recommend checking out our discussion threads on the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69, which address similar problems with connecting and setting up Install Sound Mixers Rolls.



User manual for the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69

The user manual for the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Sound Mixers.

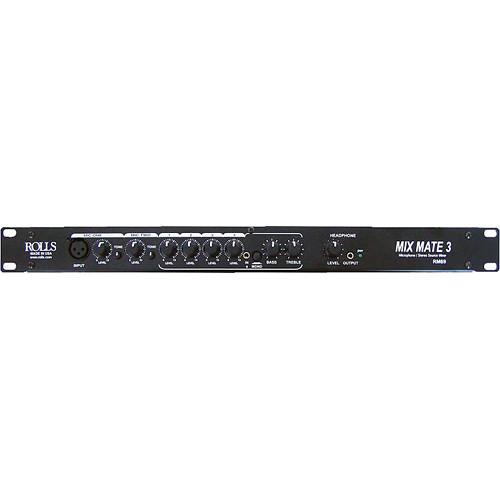

The Rolls RM69 MixMate 3 is a 6-channel stereo line mixer with 2 microphone inputs. The MixMate 3 is ideal for single-zone fixed installs where audio quality is a priority.

The MixMate 3 has four stereo RCA inputs for CD players, DVD audio, turntables, etc. The 4th RCA input has a paralleled 1/8" stereo input on the front panel for mp3 players. The 2-band EQ applies across all stereo inputs. The two microphone inputs each have a rotary tone control, attenuating lows in one direction and highs in the other. The 1st microphone channel has a paralleled XLR input on the front panel, allowing easy connection for a paging or karaoke mic.

The front panel of the MixMate 3 also includes a 1/8" headphone jack with volume control and a global mono switch.
If you own a Rolls install sound mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69Download user manual for Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69
(PDF file, 0.27 MB)
Additional parameters of the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69:
Inputs
Input Connectors Balanced XLR microphone x3
RCA stereo pair x4
1/8" stereo x1
Input Impedances Mic: 600 Ohms
RCA: 22K Ohms
1/4" TRS insert: 22K Ohms
Maximum Input Level Mic: -14 dBV
Source: 24 dBV
Phantom Power +15 VDC
Outputs
Outputs Balanced XLR x2
Unbalanced RCA stereo pair x1
Output Impedance 100 Ohms Balanced
Headphone Jack 1/8" Stereo
Impedance: > 8 Ohms
Output Level +17 dBV max
Performance
Maximum Gain Mic: 60 dB
Source: 26 dB
Equalization Source program EQ:
Bass @ 100 Hz, +/-12 dB
Treble @ 11 kHz, +/-12 dB
Noise Floor -80 dB
THD < 0.025%
S/N Ratio 96 dB
General
Current Drain 50 mA 15VDC
Dimensions (W x H x D) 19 x 1.75 x 4" (48.3 x 4.5 x 10 cm)
Weight 5 lbs (2.3 kg)
Packaging Info
Package Weight 4.6 lb
Box Dimensions (LxWxH) 21.6 x 8.0 x 3.8"
The user manual for the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69 can be downloaded in .pdf format if it did not come with your new install sound mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Rolls users keep a unique electronic library for Rolls install sound mixerss, where you can use our link to download the user manual for the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69.

The user manual lists all of the functions of the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69, all the basic and advanced features and tells you how to use the install sound mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Rolls service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Rolls RM69 MixMate 3 - 6-Channel Stereo Line / Microphone RM69. User manuals are also available on the Rolls website under Pro Audio - Installation Sound - Install Sound Mixers.
