User manual Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6

Operating instructions and pdf manual for use - Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6 User manual, User manual Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6, Samson, UM1, Portable, Wireless, Lavalier, Microphon


User manual for Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6

Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6
  • Manufacturer: Samson
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Samson
  • Settings and expert assistance
  • Contact Samson service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6, which address similar problems with connecting and setting up Wireless Systems Samson.



User manual for the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6

The user manual for the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

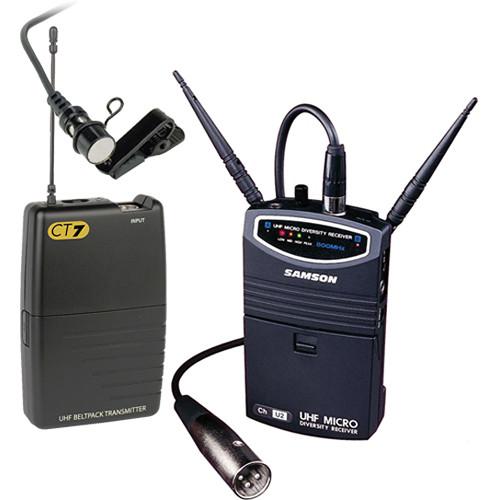

The Samson Micro / AirLine UM1 Wireless Lavalier Microphone System features the Samson QL5 lavalier microphone, CT7 body-pack transmitter, and UM1 portable true-diversity UHF receiver. The system is an ideal solution for all sorts of video professionals and operates on the less-cluttered 800MHz bandwidth.
If you own a Samson wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6Download user manual for Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6
(PDF file, 0.25 MB)
Additional parameters of the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6:
Microphone
Polar Pattern Cardioid
Frequency Response 60 Hz to 15 kHz
Sensitivity -44 dbV/Pa (6.3 mV/Pa)
Impedance 200 Ω
Maximum SPL 132 dB (THD ≤ 0.5% 1 kHz)
Dynamic Range 114 dB
Power Supply 9 to 52 Volt Phantom Power
Receiver
Frequency Response 50 Hz to 15 kHz (±3 dB overall)
Receiving Frequency Range 801 to 805 MHz or 863 MHz
Squelch Sensitivity: 17 dBμv ±4 dB
THD 1% maximum overall (@ AF1 kHz, RF56 dBuv)
Dimensions (WxDxH) 2.60 x 1.00 x 4.25" (6.58 x 2.60 x 10.70 cm)
Transmitter
Frequency Response 50 Hz to 15 kHz (± 3.5 dB)
Current Consumption 7 mA (typical)
Battery Life 1x 9 V battery
12 hours
RF Output -4 dB minimum, 3 dB maximum (@ 5 mW)
Frequency Stability ±20 kHz
Dimensions (WxDxH) 2.60 x 0.92 x 4.00" (66.15 x 23.40 x 102.50 mm)
General
Frequency N6- 645.750 MHz
Packaging Info
Package Weight 3.7 lb
Box Dimensions (LxWxH) 15.8 x 12.0 x 3.9"
The user manual for the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samson users keep a unique electronic library for Samson wireless systemss, where you can use our link to download the user manual for the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6.

The user manual lists all of the functions of the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samson service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samson UM1 Portable Wireless Lavalier Microphone SW87SQL5-N6. User manuals are also available on the Samson website under Pro Audio - Location Sound - Wireless Systems.
