User manual Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW

Operating instructions and pdf manual for use - Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW User manual, User manual Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW, Samsung, 256GB, 950, Pro, M.2, NVMe, Internal, SSD, MZ-V5P256B


User manual for Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 182 USD

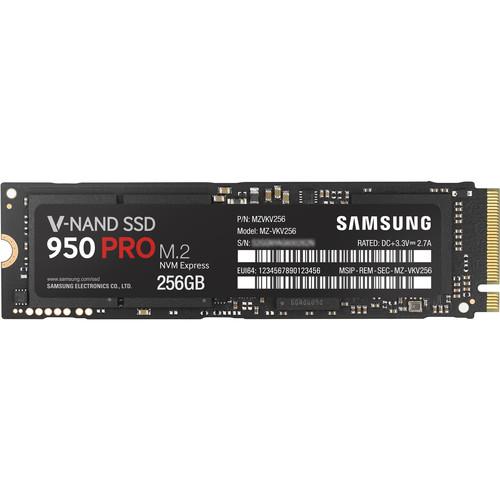

Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW
Click to enlarge image

We recommend checking out our discussion threads on the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW, which address similar problems with connecting and setting up Internal Drives Samsung.



User manual for the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW

The user manual for the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

Enhance the performance and data capacity of your system with the Samsung 256GB 950 Pro M.2 NVMe Internal SSD. It features an M.2 form-factor design and outperforms SATA-based SSDs with read and write speeds up to 2,200 MB/s and 900 MB/s, respectively. To achieve these speeds, Samsung has designed this SSD to utilize multiple PCI Express Gen 3.0 x4 lanes along with V-NAND technology. With these features, this NVMe SSD is well suited to handle intensive workloads such as computer-aided design, data analysis, and engineering simulations.

The 950 Pro comes built with a Samsung UBX controller and 512MB of low-power DDR3 SDRAM. This slim M.2 SSD is designed for workstations and high-end notebooks that allow a module length of 3.1" (80mm). For support, it is compatible with SMART technology as well as TRIM commands with a supported operating system. Other notable features include AES 256-bit data encryption along with TCG Opal to help protect your sensitive data.
If you own a Samsung internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW:
Specifications
Capacity 256 GB
Form Factor M.2 (2280)
Interface PCIe 3.0 x4 (up to 32 GB/s) NVMe 1.1
NAND Type Samsung V-NAND
Controller Samsung UBX controller
Cache Memory Samsung 512 MB low-power DDR3 SDRAM
TRIM Support Yes (requires OS support)
S.M.A.R.T. Support Yes
Garbage Collection Yes
Data Security AES 256-bit for User Data Encryption
TCG Opal Family Spec and eDrive(IEEE1667) to be supported by FW update
Sequential Read Up to 2,200 MB/s
Sequential Write Up to 900 MB/s
Random Read 4KB, QD 32, thread 4
Up to 270,000 IOPS
4KB, QD 1, thread 1
Up to 11,000 IOPS
Random Write 4KB, QD 32, thread 4
Up to 85,000 IOPS
4KB, QD 1, thread 1
Up to 43,000 IOPS
Power Consumption Active: average 5.1 W, maximum 6.4 W
Idle : 70 mW,
Device Sleep Mode Support (L1.2 mode): 2.5 mW
Reliability 1.5 Million Hours Reliability (MTBF)
Operating Temperature 32 to 158°F / 0 to 70° C (Measured by SMART Temperature. Proper airflow recommended)
Humidity 5 to 95%, non-condensing
Vibration 20 to 2000 Hz, 20 G
Shock 1500 G, duration 0.5 m sec, 3 axis
Dimensions 3.2 x 0.9 x 0.1" / 80.2 x 22.2 x 2.4 mm
Weight 0.4 oz / 10.0 g
Packaging Info
Package Weight 0.1 lb
Box Dimensions (LxWxH) 5.6 x 3.9 x 0.9"
The user manual for the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung internal drivess, where you can use our link to download the user manual for the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW.

The user manual lists all of the functions of the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung 256GB 950 Pro M.2 NVMe Internal SSD MZ-V5P256BW. User manuals are also available on the Samsung website under Computers & Solutions - Drives & Storage - Internal Drives.
