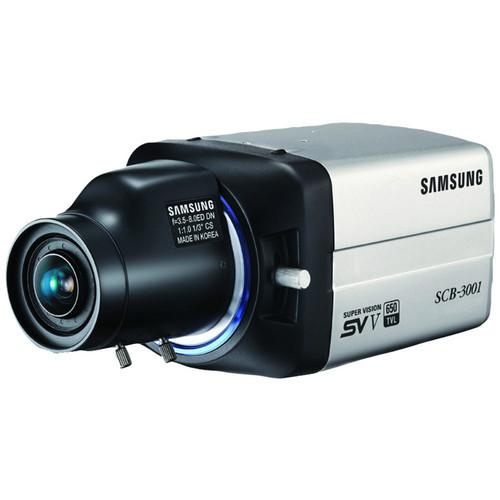

Samsung 650 TVL True Day/Night Box Camera (No Lens) SCB-3001
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Samsung 650 TVL True Day/Night Box Camera (No Lens) SCB-3001, which address similar problems with connecting and setting up Wired Analog & HD Cameras Samsung.



User manual for the Samsung 650 TVL True Day/Night Box Camera (No Lens) SCB-3001

The user manual for the Samsung 650 TVL True Day/Night Box Camera (No Lens) SCB-3001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

The Samsung 650 TVL True Day/Night Box Camera with a 1/3" vertical double density interline CCD image sensor delivers high-quality imagery at a resolution up to 650TVL in color and up to 700TVL in B&W. A minimum illumination of 0.1 lux at f/1.2 allows the camera to deliver detailed imagery in both day and night conditions.

With SSDR (Samsung Super Dynamic Range), the camera delivers clearly visible images in high-contrast light conditions. The WDR technology and backlight compensation address extreme-contrast visuals with backlit subjects, and balance the overall brightness of images. Using 2D/3D filtering noise reduction technology (SSNRIII), the SCB-3001 camera offers color images in dimly-lit areas with reduced noise in the picture, and helps saving storage space. Automatic gain control adjusts the signal strength to maintain a constant brightness level, and Auto White Balance feature adjusts the red and blue signals by taking a standard white color reference to get the most natural colors. DIS (Digital Image Stabilization) offers steady pictures by compensating for any camera movement caused by external stimuli.

Equipped with ICR (infrared cut filter removal), the camera offers picture with accurate colors during the daytime and B&W images with enhanced visibility during nighttime. Virtual Progressive Scan (VPS) technology helps in reproducing sharp visuals by clearly defining edges of moving objects. The camera features PIP (Picture-in-picture) for displaying 2 images simultaneously. The multi-language OSD (On-Screen Display) offers intuitive and convenient interface for easy operation. Camera control via a video coaxial cable allows you to remotely perform the camera setup, thus offering ease of installation and remote adjustment in real time. Featuring privacy masking, the SCB-3001 Super High-resolution Camera allows you to mask up to 12 programmable zones of a scene for privacy reasons.
If you own a Samsung wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung 650 TVL True Day/Night Box Camera (No Lens) SCB-3001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Samsung 650 TVL True Day/Night Box Camera (No Lens) SCB-3001Download user manual for Samsung 650 TVL True Day/Night Box Camera (No Lens) SCB-3001
(PDF file, 7.51 MB)
Additional parameters of the Samsung 650 TVL True Day/Night Box Camera (No Lens) SCB-3001:
Specifications
    Camera
    Imaging Device 1/3" Vertical double density interline CCD
    Pixels 1028(H) x 508(V)
    Effective Pixels 976(H) x 494(V)
    Scanning System 2 : 1 Interlace / Progressive
    Synchronization Internal / Line lock
    Frequency H : 15.734KHz / V : 59.94Hz
    Horizontal Resolution Color : 650TVL
    B/W : 700TVL
    Minimum Illumination Color : 0.1Lux (50IRE@F1.2), 0.0002Lux (Sens-up, 512x)
    B/W : 0.01Lux (50IRE@F1.2), 0.00002Lux (Sens-up, 512x)
    Signal to Noise Ratio 52dB (AGC off, Weight on)
    Video Output CVBS : 1.0 Vp-p / 75 composite
    Operational
    On Screen Display Languages English, Japanese, Spanish, French, Portuguese, Korean, Taiwanese
    Camera Titles On / Off
    Controls Day & Night: Auto (ICR) / Extern / Color / B/W
    SSDR: On / Off (Level adjustable)
    Backlight Compensation: Off / User BLC / HLC / SSDR / WDR)
    Wide Dynamic Range: 128X
    Digital Image Stabilization: On / Off
    Privacy Masking: On / Off (12 programmable zones)
    2D+3D Noise Filter (A1): On / Off
    Gain Control: Low / High / Off
    White Balance: ATW / AWC / Manual / Outdoor / Indoor (1,700°K ~ 11,000°K)
    Digital Zoom: On / Off (1x ~ 16x)
    Sharpness: On / Off (Level adjustable)
    Reverse: Off / H-REV / V-REV / HV-REV
    Electronic Shutter Speed Auto (NTSC : 1/60 ~ 1/120,000sec, PAL : 1/50 ~ 1/120,000) / Manual / A.FLK / External
    Communication RS-485, Coaxial control
    Protocol Samsung-T, Samsung-E, Pelco-D, Pelco-P, Bosch, Honeywell, Vicon, Panasonic
    Electrical
    Input Voltage Dual (12V DC / 24V AC)
    Power Consumption Max. 4.0W
    Environmental
    Operating Temperature +14 to +122° F (-10 to +50° C)
    Humidity Less Than 90% RH
    Mechanical
    Dimensions (WxHxD) 2.6 x 2.4 x 4.02" (66 x 61 x 102 mm)
    Weight 0.68lb (310g)
    Lens Mount C/CS
    Certifications FCC (Class A), UL
    Packaging Info
    Package Weight 1.15 lb
    Box Dimensions (LxWxH) 7.4 x 4.3 x 3.2"
