User manual Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730

Operating instructions and pdf manual for use - Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730 User manual, User manual Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730, Samsung, SMT-2730, 27, Full, HD, LED, Monitor, Black, SMT-


User manual for Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730

Samsung SMT-2730 27
  • Manufacturer: Samsung
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Surveillance Monitors
  • Safety instructions
  • Startup and operation of the surveillance monitors
  • Tips for setting up your Samsung
  • Settings and expert assistance
  • Contact Samsung service
  • Troubleshooting
  • Warranty information
  • Price: 714 USD
We recommend checking out our discussion threads on the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730, which address similar problems with connecting and setting up Surveillance Monitors Samsung.



User manual for the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730

The user manual for the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

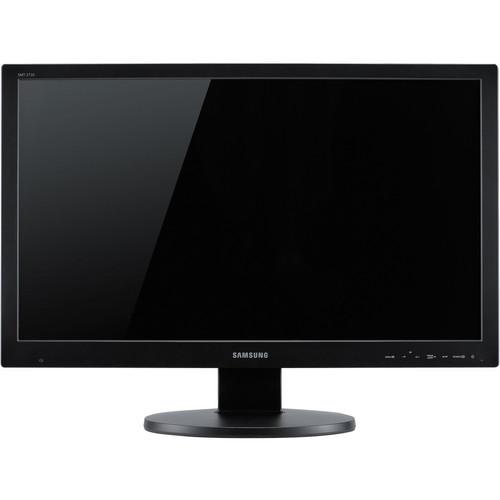

The black SMT-2730 27” LED Monitor from Samsung with Full HD native 1920 x 1080 panel resolution is optimized for CCTV applications and designed for 24/7 use. It features advanced LED panel technology that offers superior picture quality along with a fast 8 ms response time. This professional security monitor offers 600 TVL resolution and supports HDMI, VGA, and composite video output.
If you own a Samsung surveillance monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730:
Specifications
    General
    Type LED
    Screen Size 27.0" (68.6 cm)
    Maximum Resolution 1920 x 1080
    Brightness 300 cd/m2
    Contrast Ratio 1,000:1
    Aspect Ratio 16:9
    Viewing Angle (H/V) 170° / 160°
    Display Color 16.7 million
    Response Time 8 ms (G to G)
    Video System NTSC / PAL
    Panel Life 50,000 hours
    Filter Type 3D comb filter
    Interface
    Video Connector: CVBS, 2 x HDMI, Component (D-sub 15-pin)
    RGB / DVI Connector: Analog D-sub, DVI-D, Display port
    Input Signal: 0.7 Vpp ±5%
    Available Format:
    640 x 350 at 70 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60 / 72 / 75 Hz (VGA)
    800 x 600 at 56 / 60 / 72 / 75 Hz (SVGA)
    1024 x 768 at 60 / 70 / 75 Hz (XGA)
    1152 x 864 at 75 Hz
    1152 x 870 at 75 Hz
    1280 x 960 at 60 Hz
    1280 x 1024 at 60 / 75 Hz (SXGA)
    1360 x 768 at 60 Hz
    1600 x 1200 at 60 Hz
    1920 x 1080 at 60 Hz
    HDMI Connector: HDMI 1, HDMI 2
    Available Format:
    640 x 480p at 60 Hz
    720 x 480i at 60 Hz
    720 x 480p at 60 Hz
    720 x 576i at 50 Hz
    720 x 576p at 50 Hz
    1280 x 720p at 50 / 60 Hz
    1920 x 1080i at 50 /60 Hz
    1920 x 1080p at 50 /60 Hz
    Audio Connector: RCA (L/R), stereo mini jack
    Output Signal: Loop-through line level (PC only), Speakers : 2 x 5 W
    Application Support Remote controller
    OSD Menu
    Function VESA DPM compatible
    Language English, Spanish, French, German, Italian, Portuguese, Russian, Swedish, Turkish, Taiwanese, Chinese, Japanese, and Korean
    Electrical
    Input Voltage 100 to 240 VAC (50/60 Hz)
    Power Consumption Type 32 W
    Environmental
    Operating Temperature 32 to 104°F (0 to 40°C)
    Operating Humidity 0 to 90% (non-condensing)
    Mechanical
    VESA Mount 400 x 600 mm
    Bezel Size 0.96" (2.43 cm)
    Dimensions (W x H x D) With Stand: 25.51 x 18.86 x 8.35" (64.80 x 47.91 x 21.20 cm)
    Without Stand: 25.51 x 15.59 x 2.43" (64.80 x 39.60 x 61.70 cm)
    Weight 16.09 lb (7.30 kg)
    Packaging Info
    Package Weight 19.9 lb
    Box Dimensions (LxWxH) 29.0 x 18.5 x 5.5"
    The user manual for the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730 can be downloaded in .pdf format if it did not come with your new surveillance monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samsung users keep a unique electronic library for Samsung surveillance monitorss, where you can use our link to download the user manual for the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730.

    The user manual lists all of the functions of the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730, all the basic and advanced features and tells you how to use the surveillance monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samsung service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samsung SMT-2730 27" Full HD LED Monitor (Black) SMT-2730. User manuals are also available on the Samsung website under Surveillance - Surveillance Video - Surveillance Monitors.
