User manual Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C

Operating instructions and pdf manual for use - Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C User manual, User manual Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C, Samyang, 8mm, T3.8, UMC, Fish-Eye, CS, II, Lens, SYHD8MV-C,


User manual for Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C

Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C
  • Manufacturer: Samyang
  • Basic description and contents of package
  • Product classification: Professional Video - Lenses & Lens Accessories - Digital Cine Lenses
  • Safety instructions
  • Startup and operation of the digital cine lenses
  • Tips for setting up your Samyang
  • Settings and expert assistance
  • Contact Samyang service
  • Troubleshooting
  • Warranty information
  • Price: 299 USD
We recommend checking out our discussion threads on the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C, which address similar problems with connecting and setting up Digital Cine Lenses Samyang.



User manual for the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C

The user manual for the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.

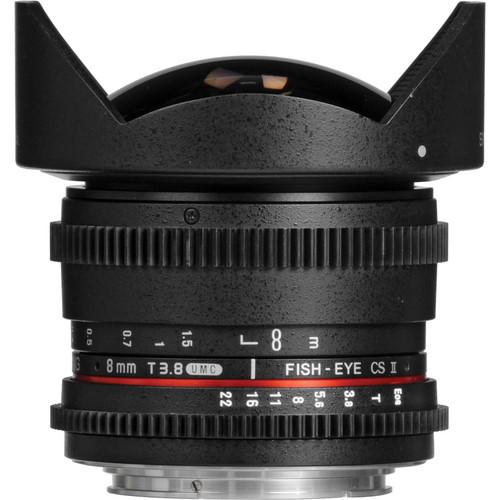

This Canon EF Mount Samyang 8mm T3.8 UMC Fish-Eye CS II Lens is a fish-eye cine lens designed for video capture on cameras with APS-C sized sensors. It features an 8mm focal length and a 180° ultra wide angle of view. This angle of view changes, however, to 167° on Canon cameras because Canon APS-C sized sensors are slightly smaller and have a crop factor of 1.6.

Fish-eye lenses aren't for common, everyday shots, but can be excellent for capturing sports stadiums, large halls, highly-packed city sights, and similar scenery in a warped, unconventional fashion. They're also useful in making small rooms look bigger and straight lines or bars appear more oval, in both scenarios as a result of warping the image.

The aperture ranges from T3.8 to T22. T3.8 being its fastest aperture, this lens is best used in environments with sufficient light or with a light source incorporated. The aperture is manually adjustable without click stops with a continuous, smooth aperture ring. Both the aperture ring and focus ring feature a 0.8 gear pitch in case you want to use a follow focus with either. The focus ring is also well-damped and very smooth. The lens doesn't offer auto-focus, but in fish-eye lenses objects appear mostly in focus anyway. The minimum focusing distance is 11.8" (30 cm).

The lens has 10 lens elements arranged in 7 groups. It's coated with Samyang's multi-layered, anti-reflection Ultra Multi Coating (UMC), which suppresses flaring and ghosting. The lens body is made of aluminum and is very robust. A removable, petal type lens hood, and front and rear lens caps are included with the lens.
If you own a Samyang digital cine lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-CDownload user manual for Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C
(PDF file, 5.77 MB)
Additional parameters of the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C:
Specifications
    Lens Mount Canon EF
    Focal Length 8mm
    Aperture T3.8 to T22
    Angle of View 180° diagonal (becomes 167° because Canon's APS-C sized sensor has a 1:1.6x crop factor)
    Minimum Focus Distance 11.8" (30 cm)
    Optical Construction 10 elements in 7 groups (1 aspherical element)
    Number of Aperture Blades 6
    Focus Adjustment Manual
    Filter Size None
    Front Diameter 75 mm
    Gear Pitch 0.8 (on both the focus and aperture rings)
    Length (Lens Mount to Front) 2.95" (75.1 mm)
    Weight 1 lb (455 g)
    Packaging Info
    Package Weight 1.8 lb
    Box Dimensions (LxWxH) 8.7 x 6.5 x 4.9"
    The user manual for the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C can be downloaded in .pdf format if it did not come with your new digital cine lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Samyang users keep a unique electronic library for Samyang digital cine lensess, where you can use our link to download the user manual for the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C.

    The user manual lists all of the functions of the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C, all the basic and advanced features and tells you how to use the digital cine lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Samyang service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Samyang 8mm T3.8 UMC Fish-Eye CS II Lens SYHD8MV-C. User manuals are also available on the Samyang website under Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.
