User manual Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP

Operating instructions and pdf manual for use - Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP User manual, User manual Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP, Sekonic, Litemaster, Pro, L-478D, Light, Met


User manual for Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP
  • Manufacturer: Sekonic
  • Basic description and contents of package
  • Product classification: Photography - Photo Accessories - Light Meters
  • Safety instructions
  • Startup and operation of the light meters
  • Tips for setting up your Sekonic
  • Settings and expert assistance
  • Contact Sekonic service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP, which address similar problems with connecting and setting up Light Meters Sekonic.



User manual for the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP

The user manual for the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP provides necessary instructions for the proper use of the product Photography - Photo Accessories - Light Meters.

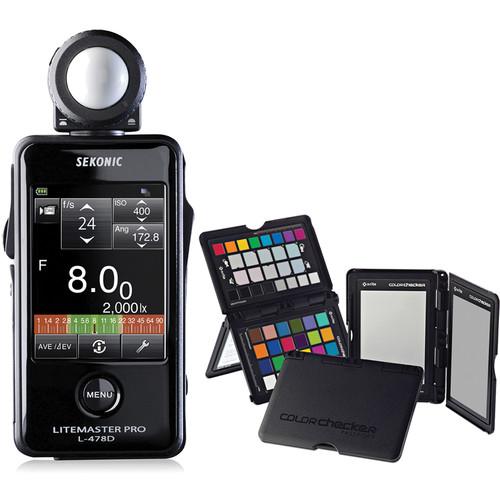

The Sekonic Litemaster Pro L-478D Light Meter and X-Rite ColorChecker Passport with Sekonic Gray Balance Card combines the innovative L-478D incident and flash meter with the ColorChecker Passport to simplify the process of calibrating your camera for accurate exposure levels and colors. Utilizing free software from Sekonic and X-Rite, photographers can easily create an exposure profile of their cameras, calibrate their meters and make profiles that will deliver optimal color and exposure settings for specific photo and cine applications.
If you own a Sekonic light meters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPPDownload user manual for Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP
(PDF file, 8.08 MB)
Additional parameters of the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP:
Light Meter
Metering Method Incident light and reflected light (with optional attachment)
Receptor Head Lumisphere convertible to flat diffuser (with retracted Lumisphere)
Receptor Element Silicon photo diodes
Measuring Modes Ambient: Aperture priority measuring, Shutter speed priority measuring, TF priority measuring, Cine measuring, HD Cine camera measuring, Illuminance measuring (lux, foot candle), Luminance measuring (foot-lambert, cd/m²)
Flash: Cord Mode (with/without multiple cumulative), Cordless Mode (with/without multiple cumulative)
Measuring Range Ambient- Incident: EV -2 to 22.9 (approx. f/2 at 15 sec. to f/22.9 at 1/8000 sec.) / Reflected: EV 3 to 19.9
Flash light- Incident: f/1.0 to f/128.9 / Reflected: f/2.8 to f/128.9
Illuminance- 0.63 to 2,000,000 lux / 0.10 to 180,000 fc (EV -2 to 19.6)
Luminance (Reflected Light)- 1 to 980,000 cd/m² (EV 3 to 22.9) / 0.29 to 290,000 fl (EV 1.5 to 22.9)
Repeat Accuracy +/- 0.1 EV or less
Calibration Constant Incident: Lumisphere C = 340, Flat C = 250
Reflected: K = 12.5
Power Source 2x AAA dry cell batteries (alkaline, manganese, lithium, nickel hydride, or nickel-based)
Operating Temperature 14-122°F / -10-50°C (no condensation)
Storage Temperature -4-140°F / -20-60°C (no condensation)
Dimensions 2.2 x 5.5 x 1" / 57 x 140 x 26 mm
Weight 4.6 oz / 130 g (without batteries)
ColorChecker
System Requirements Windows:
Microsoft Windows XP, Vista, or 7 (latest SP required, 32- and 64-bit versions supported)
512 MB RAM
Intel Pentium 4 or AMD Athlon XP or better CPU
200 MB of available disk space
Monitor resolution of 1024 x 768 or higher
Internet connection required for software update

Macintosh
Mac OSX 10.5.x, 10.6, 10.7, or 10.8 (with the latest updates installed)
G4 Processor or higher (Intel recommended)
512 MB RAM
350 MB of available disk space
Monitor resolution of 1024 x 768 or higher
Format DNG
Compatible Software Adobe Lightroom 2.0 or newer Adobe Photoshop Camera Raw 4.5 or newer Adobe Photoshop CS3 or newer Adobe Photoshop Elements 7 or newer Adobe Bridge CS3 or newer
Languages English, French, Italian, German, Spanish, Portuguese, Simplified Chinese, Japanese
Dimension (D x W x H) 4.9 x 3.5 x 0.4" (125 x 90 x 9 mm)
Weight 3 oz (80 g)
Environmental Requirements Temperature: 32-104°F (0-40°C) Humidity: 0-85% (non-condensing)
Packaging Info
Package Weight 1.1 lb
Box Dimensions (LxWxH) 8.4 x 6.0 x 3.0"
The user manual for the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP can be downloaded in .pdf format if it did not come with your new light meters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sekonic users keep a unique electronic library for Sekonic light meterss, where you can use our link to download the user manual for the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP.

The user manual lists all of the functions of the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP, all the basic and advanced features and tells you how to use the light meters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sekonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sekonic Litemaster Pro L-478D Light Meter and X-Rite 401-478CCPP. User manuals are also available on the Sekonic website under Photography - Photo Accessories - Light Meters.
