User manual for Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Sennheiser
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - Wireless Systems
- Safety instructions
- Startup and operation of the wireless systems
- Tips for setting up your Sennheiser
- Settings and expert assistance
- Contact Sennheiser service
- Warranty information
- Price: 650 USD
We recommend checking out our discussion threads on the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A,
which address similar problems with connecting and setting up Wireless Systems Sennheiser.
User manual for the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A
The user manual for the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

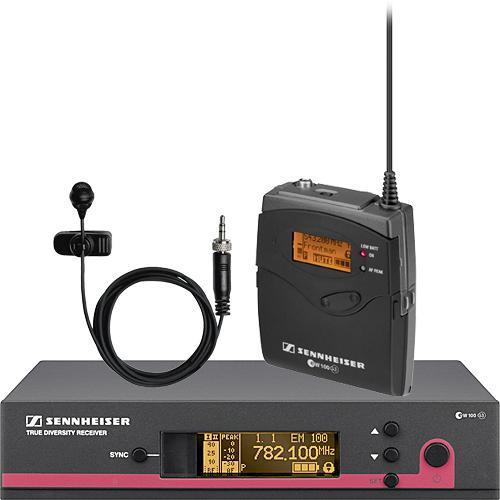

The Sennheiser ew 122 G3 Wireless Bodypack Microphone System provides dependable performance for both speech and performance applications and includes a UHF diversity receiver, bodypack transmitter and ME 4 lavalier microphone. The transmitter and receiver synchronize channel and frequency at the touch of a button.
If you own a Sennheiser wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A:
| Type of System || True Diversity UHF Wireless Lavalier Mic System |
| RF Carrier Frequency Range || A (516-558 MHz) |
| Approx. Working Range || Not Specified By Manufacturer |
| Overall Frequency Response || Line: 25Hz - 18kHz |
Mic: 80Hz - 18kHz
| Signal-to-Noise Ratio || > / - 110dBA |
| # Of Channels || 1680 |
20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each
| # Of Simultaneous Systems || Not Specified By Manufacturer |
| Type of Receiver || EM 100 G3 Rackmount Receiver |
| Type of Outputs || Balanced XLR |
Unbalanced 1/4" Phone
| Headphone Monitoring || 1/4" Phone (Front Panel) |
| Power Requirements || 12VDC |
| Battery Type/Approx. Life || Not Applicable |
| Display || Back-lit LCD Display |
| Mounting Options || Optional GA 3 Rackmount Kit (Not Included) |
| Antenna Type || BNC Type x2 |
| Dimensions || 7.48 x 8.35 x 1.69" (190 x 212 x 43mm) |
| Weight || 1.99 lb (900g) |
| Type of Transmitter || SK 100 Bodypack Transmitter |
| Type of Input Connector || Locking 1/8" (3.5mm) Mini |
| Type of Microphone || ME 4 Lavalier Microphone |
| Polar Pattern || Cardioid |
| Interchangeable Mic Heads || Not Applicable |
| Battery Type/Approx. Life || AA 1.5V Batteries x2 (8 Hours Typ.) |
| Mute Switch || Programmable Mute Function |
| Level Control || Yes |
| Antenna Type || 1/4 Wave |
| Display || Back-Lit LCD |
| Dimensions (WxDxH) || 3.23 x 2.92 x 0.94" (82 x 64 x 25mm) |
| Weight || 5.64 oz (160g) |
| Package Weight || 4.75 lb |
| Box Dimensions (LxWxH) || 17.953 x 15.118 x 3.071" |
The user manual for the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A can be downloaded in .pdf
format if it did not come with your new wireless systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sennheiser users keep a unique electronic library
for Sennheiser wireless systemss,
where you can use our link to download the user manual for the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A.
The user manual lists all of the functions of the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A,
all the basic and advanced features and tells you how to use the wireless systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sennheiser service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sennheiser ew 122 G3 Wireless Bodypack Microphone EW122G3-A. User manuals are also
available on the Sennheiser website under Pro Audio - Live Sound - Wireless Systems.
