User manual Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2

Operating instructions and pdf manual for use - Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2 User manual, User manual Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2, Sharp, PN-L703BPKG2, AQUOS, Board, Display, Package, P


User manual for Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2

Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2
  • Manufacturer: Sharp
  • Basic description and contents of package
  • Product classification: A/V Presentation - Whiteboards, Easels & Displays - Digital Whiteboards
  • Safety instructions
  • Startup and operation of the digital whiteboards
  • Tips for setting up your Sharp
  • Settings and expert assistance
  • Contact Sharp service
  • Troubleshooting
  • Warranty information
Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2 Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2
Click to enlarge image

We recommend checking out our discussion threads on the Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2, which address similar problems with connecting and setting up Digital Whiteboards Sharp.



User manual for the Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2

The user manual for the Sharp PN-L703BPKG2 AQUOS Board Display Package PN-L703BPKG2 provides necessary instructions for the proper use of the product A/V Presentation - Whiteboards, Easels & Displays - Digital Whiteboards.

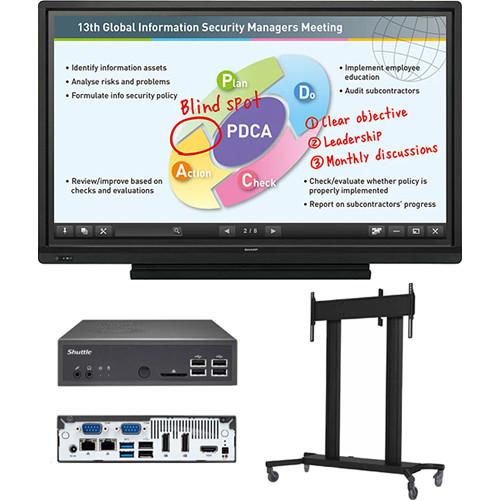

The PN-L703BPKG2 AQUOS Board Display Package from Sharp includes the AQUOS Board PN-L703B 70" Edge Lit LED Backlight Interactive Display System, the PN-SPCI5W7H AQUOS Board Computer, and the PN-SR763M Peerless Rolling Cart.

The AQUOS Board Display is designed for smooth and effortless communication in a wide range of contexts. The responsive touch pens allow several people to write on the same screen at the same time; the touch pen software is pre-installed in the LED. The Touch Display Link software enables multifaceted wireless communication. Onscreen content including handwritten notes and drawings made in real time can be viewed simultaneously on the AQUOS Board display and mobile devices such as PCs, tablets, and smart phones. Touch Display Link facilitates interactive presentations, lively discussions, and paperless meetings in both business and educational settings.

The PN-SPCI5W7H is designed for AQUOS Board Interactive Displays. This AQUOS Board computer has an Intel Core i5 processor, H61 Express chipset, and 4GB of RAM with 64-bit Windows 7 Professional. It comes pre-imaged with SHARP Golden Image, which includes Sharp Pen Software and Sharp Touch Display Link 2 Software. It also has built-in WiFi, supports direct mounting to the AQUOS Board, and also supports two Full-HD displays with its HDMI and DVI-I connectors.

The black PN-SR763M Flat-Panel Floor Cart is used for mounting the PN-L603A AQUOS Board Interactive LED Display. This cart offers a complete mobile solution for any large screen application. It comes with four durable 4" swivel casters (including 2 locking casters) that provide easy maneuverability over various flooring surfaces and through doorways. Two locking casters ensure complete stability wherever the cart is placed. The incremental tilt of -2°, 0°, and +5° and continuous vertical height adjustment assure that the display is positioned at the viewing angle suitable for the viewing audience.
