User manual for the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full SB-5669K

The user manual for the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full SB-5669K provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

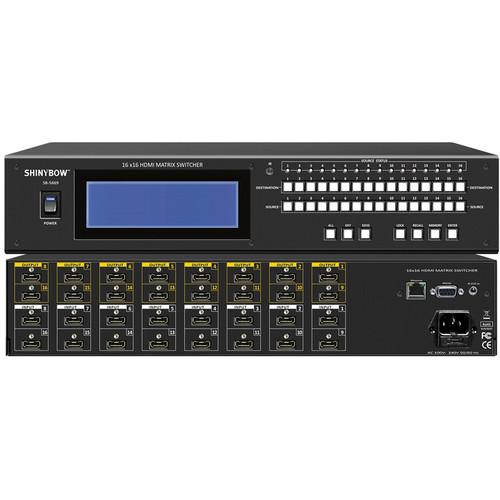

The Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full EDID Management / Learning is designed for multiple sources and displays features 16 HDMI connections for inputs and 16 HDMI connections for outputs located on the back panel. The unit has EDID management and EDID memory, including the Fast Speed Start feature. This feature permits switching between HDMI sources in as little as 2 seconds.

The switcher supports Ultra HD (3840x2160), 1080p, and 3D formats, and 36-bit Deep Color formats. The front panel includes a large LCD that shows current routing stations of all inputs to outputs, and allows for easy setup of EDID modes. Functional manual control is achieved through push buttons located on the front panel. External functional control is achieved through an RS-232 connection, IR remote control, or IP.

The RS-232 connection allows functions to be controlled by systems such as Control4 (drivers included) or any computerized software / hardware control system. The IP port supports serial commands from any device when using the included software that redirects COM ports to an IP address set in the switcher. The IP port has a built in Web server.

One-to-many or many-to-one connections can be established using the matrix routing switcher. You can easily connect any input device to any output device. You can also establish a single input device to many output devices, eliminating the need to constantly re-route video input and output cables.
If you own a Shinybow routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full SB-5669K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full SB-5669K:
Inputs 16 x HDMI, Type A
Outputs 16 x HDMI, Type A
Signals Supported HD 1080p at 60 Hz, H36-bit Deep color, 3D (1.4a) formats
Compliance HDCP 2.2 and CEC compliant
Bandwidth Double Data Rates (Video): 340 MHz, total 6.75 Gb/s bandwidth
Video Formats HDTV/DTV:
Ultra HD (3840x2160)
1080p
1080i
720p
480p
480i

PC
XGA to WUXGA (1920x1200)
Audio Support Multi Audio Formats 5.1 / 7.1, MAT(MLP)
Dolby Digital
Dolby TrueHD
Dolby Digital Plus
DTS, DTS-ES 6.1
DTS-HD, DTS-HD-HRA, DTS-HD Master
PCM-2CH
Controls IR Wireless Remote Controller
IR External port (OD 3.5 mm earphone jack)
Front panel buttons
Ethernet and RS-232 serial interface
IR Extender Port Distance: 1,000' (300 m)
IR Frequency 38 kHz
Safety Approvals CE, FCC, RoHS (2002/95/EC), REACH
EDID Embedded EDID Modes:
FSS (fast start speed
H24-3D
H24-3D-M (multi Audio)
H36-3D
H36-3D-M (multi Audio)
4K2K-3D PCM 2CH
DVI-D 1920x1200-60Hz

External modes:
Learning mode (learning destination EDID link to source device)
Operational Temperature 32 to 100°F (0 to 38°C)
Power Source Output: 12 VDC, 5 A
Input: 100 to 240 VAC, 50 to 60 Hz, 1.2 A
Rack Mountable 2 RU, 19" rack (with rack mount ears)
Dimensions (W x D x H) 17.4 x 11.9 x 3.5" (44.2 x 30.3 x 8.8 cm)
Weight 8.82 lb (4 kg)
Packaging Info
Package Weight 25.0 lb
The user manual for the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full SB-5669K can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shinybow users keep a unique electronic library for Shinybow routers & switcherss, where you can use our link to download the user manual for the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full SB-5669K.

The user manual lists all of the functions of the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full SB-5669K, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shinybow service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full SB-5669K. User manuals are also available on the Shinybow website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
