User manual for the Shinybow 16x2 HDMI Routing Switcher SB-5616

The user manual for the Shinybow 16x2 HDMI Routing Switcher SB-5616 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

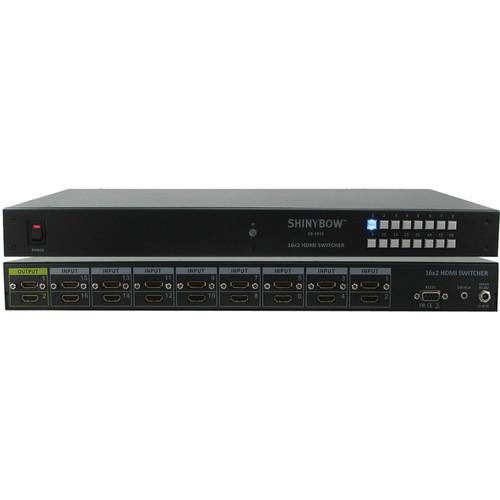

The Shinybow 16x2 HDMI Routing Switcher provides 16 HDMI inputs and 2 mirrored HDMI outputs. The switcher supports data rates up to 3.75 Gbps, enabling up to 1080p HDMI formats, including 3D, and PC resolutions up to WUXGA 1920 x 1200. Any of the 16 input signals can be sent to HDMI outputs using the buttons on the front panel, the IR Remote controller, or RS232 via a PC. An RS-232 Windows GUI interface is provided for matrix routing. The switcher is HDCP compliant, with RoHS, CE, and FCC safety certification. The switcher comes included with an IR remote controller, IR extender receiver connector with an approximate maximum distance of 1000' (300m), IR receiver cable, RS-232 cable, 12 VDC 50/60 Hz universal power supply, 19" ear mount bracket, and a CD-ROM with the Windows GUI interface.
If you own a Shinybow routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shinybow 16x2 HDMI Routing Switcher SB-5616 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shinybow 16x2 HDMI Routing Switcher SB-5616:
Inputs 16 x HDMI Type A
Outputs 2 x HDMI Type A, mirrored, simultaneously active
HDMI Support 1080p at 60Hz
36-bit Deep color
3D (1.4a) format compatible
Compliance HDCP 2.0
CEC
Video Bandwidth 225 Mhz
3.75 Gbps total bandwidth
Video Resolutions HDTV:
480i
480p
720p
1080i
1080p

PC:
XGA (1024 x 768) to WUXGA (1920 x 1200)
Audio Formats Supported 5.1 / 7.1
MAT(MLP)
Dolby Digital
Dolby TrueHD
Dolby Digital Plus
DTS
DTS-ES 6.1
DTS-HD
DTS-HD-HRA
DTS-HD Master
PCM-2CH
Control IR remote controller
1 x 3.5mm IR Extender port
1 x RS-232 serial interface
Select and Function buttons on front panel
Infrared Frequency 38 KHz
IR Extender Port Around 1000' (300 m) maximum distance
Safety Approvals CE, FCC, RoHs (2002/95/EC)
Temperature 32 to 100°F (0 to 38°C)
Power Supply 12 VDC, 3 A
Universal international type 50/60 Hz, 100 to 230 VAC
Power Consumption 1850 mA maximum
Rack Mount 1 RU, 19" rack
Dimensions 19.0 x 9.8 x 1.7" (48.2 x 25.0 x 4.4 cm)
Weight 4.74 lb (2.15 kg)
Packaging Info
Package Weight 10.6 lb
Box Dimensions (LxWxH) 20.236 x 11.496 x 3.78"
The user manual for the Shinybow 16x2 HDMI Routing Switcher SB-5616 can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shinybow users keep a unique electronic library for Shinybow routers & switcherss, where you can use our link to download the user manual for the Shinybow 16x2 HDMI Routing Switcher SB-5616.

The user manual lists all of the functions of the Shinybow 16x2 HDMI Routing Switcher SB-5616, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shinybow service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shinybow 16x2 HDMI Routing Switcher SB-5616. User manuals are also available on the Shinybow website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
