User manual for the Shinybow 4x4 VGA with Terminal Block 5-Pin Stereo SB-4144TB

The user manual for the Shinybow 4x4 VGA with Terminal Block 5-Pin Stereo SB-4144TB provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

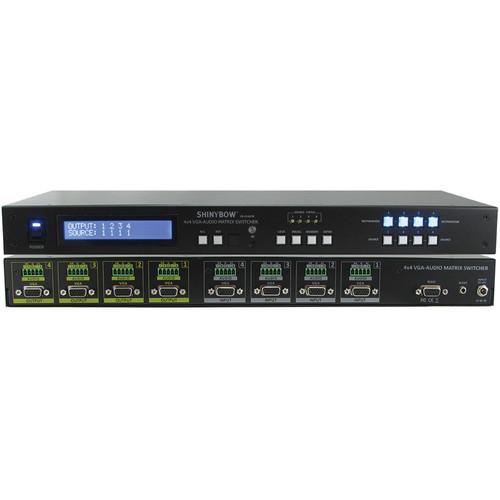

The 4x4 VGA with Terminal Block 5-Pin Stereo Analog Audio Matrix Routing Switcher features four individual VGA (RGBHV) video inputs with four stereo audio inputs, and four individual VGA (RGBHV) video outputs with four stereo audio outputs. The stereo audio inputs and outputs use terminal block 5-pin female sockets. Because it is a matrix router, any input may be routed to any output, or the same input may be routed to all outputs, or any combination thereof. This is useful for switching and sending signals from VGA source devices, such as personal computers, set top boxes, and satellite receivers, to VGA destination devices such as monitors, HDTVs, and projectors.

Control is provided via front push-buttons, IR remote control, or RS-232. A two-line LCD display gives real-time status information, such as signal routing. The RS-232 interface lets you control the switcher using the GUI interface or with a third party controller. Windows-based control software is included to provide complete remote control of the switcher from a PC. Also included is an IR remote, IR extender receiver, RS-232 cable, CD-ROM with RS-232 driver, 12 VDC power supply, and rack mount brackets.
If you own a Shinybow routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shinybow 4x4 VGA with Terminal Block 5-Pin Stereo SB-4144TB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shinybow 4x4 VGA with Terminal Block 5-Pin Stereo SB-4144TB:
Chassis Material Metal
Thickness: 0.04" (1 mm)
Inputs 4 x VGA, DB15F, female
4 x Stereo audio, 5-position terminal block, female
Outputs 4 x VGA, DB15F, female
4 x Stereo audio, 5-position terminal block, female
Video Support Analog VGA (75Ω), 1 Vp-p Output Signal (RGB) 0.7 Vp-p
Supported Resolutions VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920x1200)
Audio Supported Stereo audio
Video Bandwidth VGA (RGBHV): 425 MHz, (-3 dB) 200 mV p-p, 450 MHz, (-3 dB) 2V p-p
R=425 MHz, G=425 MHz, B=425 MHz, H=110 MHz, V=110 MHz
Audio Frequency Response 20 Hz to 20 KHz
LED Indicators Input status LEDs
Gain Flatness 90 MHz, 0.1 dB
Differential Gain Error 0.01%, 0.1 dB
Differential Phase Error 0.02, 0.1 dB (RL=150 W)
Fast Settling Time 15 ns to 0.1%
All Hostile Crosstalk -83 dB at 5 MHz
-54 dB at 50 MHz
Channel Crosstalk -56 dB at 100 MHz
Slew Rate 1000 V/us, G=+1.2 V Step
High OFF Isolation -100 dB at 10 MHz
Output Current 100 mA
Infrared Frequency 38 KHz
IR Extender Port Around 1000' (300 m) maximum distance
Control 1 x Function buttons on front panel (data status via LCM panel show out)
1 x IR Remote Controller
1 x IR External port
1 x RS 232 series interface
Safety Approvals CE, FCC, VCCl, Erp, WEEE
Power Supply 12 VDC, 2 A
Universal switch type 50/60 Hz, 100 to 230 VAC
Power Consumption 1.2 A, maximum
Rackmountable 1 RU, 19" rack (using included rack mount brackets)
Dimensions (L x W x H) 17.3 x 7.8 x 1.7" (44.0 x 20.0 x 4.4 cm)
Weight 5.95 lb (2.70 kg)
Packaging Info
Package Weight 9.0 lb
