User manual for the Shinybow SB-5645LCM-CT 4 x 4 HDMI & HDBaseT SB-5645LCM-CT

The user manual for the Shinybow SB-5645LCM-CT 4 x 4 HDMI & HDBaseT SB-5645LCM-CT provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

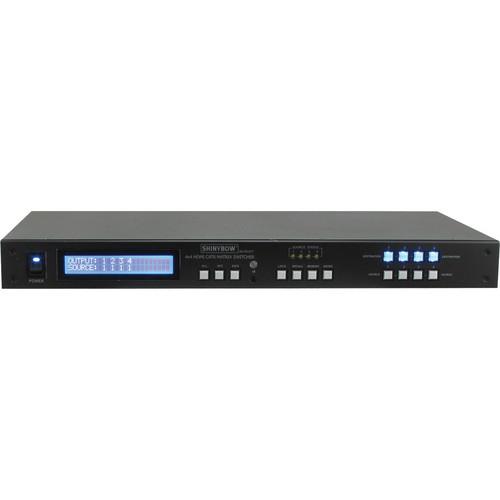

The Shinybow SB-5645LCM-CT 4 x 4 HDMI & HDBaseT Over Single CAT5e/6/7 Matrix Routing Switcher is high-performance 4 x 4 matrix routing switcher with 4 HDMI inputs and supports 4 HDMI and 4 CAT5e/6/7 outputs simultaneously.

It works with products designed using HDBaseT specifications. The switcher also supports full resolution HDMI video with embedded audio, RS-232, and bi-directional IR over a single CAT5e/6/7 cable (sold separately). With a signal bandwidth of 340 MHz, there is no signal degradation. High definition digital signals can be selected and distributed to any of the 8 outputs simultaneously (4 channels x 2).

The switcher is certified as being fully CEC and HDCP 2.0 compliant, and supports HDMI v1.4a 3D formats and data rates up to 6.75 Gb/s. It also supports UXGA/WUXGA/DVI 1920 x 1200 resolution for any HD display. It has 1 CAT5e/CAT6 and HDMI connector for each output, effectively making this a 4 x 8 switcher (same signal on both outputs). One RJ-45 connection on each output extends HDMI signals to remote location via the SB-6335R CAT5e/6 HDMI Receiver, a product designed using HDBaseT specifications. EDID can be selected between 8 different modes. Control is provided via the front panel push buttons, IR remote, or RS-232. An RS-232 Windows GUI interface is provided for matrix routing.

You can use the RS-232 port for RS-232 control and firmware update. Zone control with 4 independent remote controls (included) provides easy channel selection based on independent remotes.
If you own a Shinybow video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shinybow SB-5645LCM-CT 4 x 4 HDMI & HDBaseT SB-5645LCM-CT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shinybow SB-5645LCM-CT 4 x 4 HDMI & HDBaseT SB-5645LCM-CT:
Type 4x HDMI inputs to 4x HDMI and 8x CAT5e/6/7 Output Matrix Switcher
HDMI Support HD 1080p-60 Hz, H36-bit deep color, 3D HDMI v1.4a formats
Video Bandwidth Double Data Rates: 340 MHz, Total 6.75 Gb/s bandwidth
Video Support Digital: HD:480i / 480p / 720p / 1080i / 1080p up to 36-bit deep color
Input 4x HDMI Sources
1x IR Extender in (IR to switcher)
4x IRs (To 4x rooms)
1x ALL IR in (IR to room)
1x RS-232 (Command switcher)
4x RS-232 (To 8x rooms)
Output 4x HDMI Destinations
4x CAT5e/6/7
1x ALL IR out (IR from room)
4x IRs (From 4x rooms)
Control IR remote controller (remote switcher)
4x IR room remote controller
1x IR external port (OD 3.5 mm earphone jack)
Select and function buttons on front panel RS-232 series interface
Source Status: Automatically scans source inputs via LED show out
Function Controls Key: ALL/OFF/RECALL/ENTER/MEMORY/LOCK/EDID
Frequency Infrared: 38 kHz
Distance IR External: Maximum: 1,000' (300 m)
CAT5e/6 Extender: Maximum: 100' (300 m)
Connector HDMI I/O: HDMI Type A: SMD 19-pin female type
Operating Temperature 32 to 100°F (0 to 32°C)
Rack Mount 1 RU high, 1U-440L 19.0" (482.6 mm) rack mount

Rack mount sold separately.

Power Supply 12 VDC, 5 A, Power 100 to 240 VAC, 50/60 Hz
Power Consumption Maximum: 5 A
Safety Approvals CE, FCC, RoHS (2002/95/EC)
Dimensions (L x W x H) 19.00 x 9.85 x 1.75" (482 x 250 x 44 mm)

With included rack-mount bracket.

Weight 9.5 lb (4.3 kg)
Packaging Info
Package Weight 12.4 lb
Box Dimensions (LxWxH) 20.8 x 13.8 x 6.6"
