The user manual for the Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual SB-6320T provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

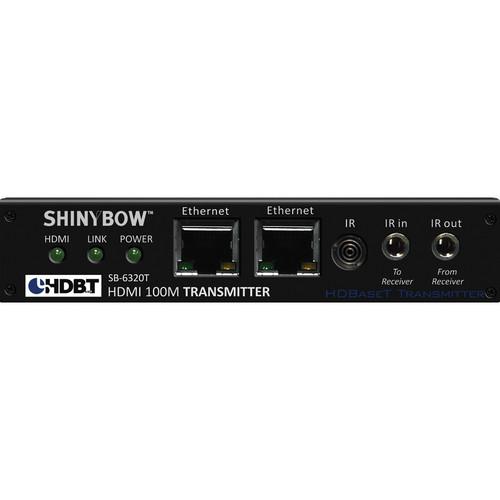

The SB-6320T HDMI HDBaseT Transmitter from Shinybow supports audio formats such as Dolby TrueHD and DTS-HD Master Audio and all seven types of 3D. This transmitter is compatible with CAT5/5e/6/6a/7 cables and supports transmitting 3D Full HD video signal at up to 330' (100m). In addition, it supports bi-directional IR, RS-232 signals, and Ethernet.
If you own a Shinybow video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual SB-6320T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual SB-6320T:
Specifications
    Input Signals HDMI with digital video (TMDS) / audio 0.5 to 1.0 Vpp, DDC 5 Vpp
    Signal Support HDBaseT HDMI 1.4a format, DVI and HDCP compliant
    Video Support HDMI and DVI TMDS format for 1920 x 1200 resolution up to 10.2 Gb/s (340 MHz), digital RGB 48 bits/pixel, deep color, 3D
    HDMI Audio Input Supported Formats: Multi audio formats 5.1 / 7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
    Extra DVI Audio Input HDBaseT Transmitter Input Signal: Stereo audio (3.5 mm OD Jack)
    Cable Support CAT5, CAT5e, CAT6, CAT6a, CAT7 UTP/STP cable
    HDMI Resolutions 480p, 720p, 1080i / 1080p, and Ultra HD
    Scan Rate HDMI resolution; frequency 24 to 240 Hz
    Controls 1 x IR in, 1 x IR out, 1 x RS-232 I/O, and 2 x LAN series interface
    Transfer Distance Up to 330' (100 m)
    HDMI Input Connectors HDMI type A (SMD 19-pin female)
    Output Connectors HDBaseT RJ-45, 8p8c female socket
    Safety Approvals CE, FCC, VCCI, REACH
    Power Consumption Maximum 750 mA at full load (1080p @ 60 Hz signal with 12 VDC power input)
    Power Supply Type: Universal 100 to 240 VAC, 50 / 60 Hz
    Power Input: 12 VDC, 2 A
    Dimensions (L x W x H) 5.31 x 5.11 x 1" (135 x 130 x 26 mm)
    Weight 2.0 lb (0.9 kg)
    Packaging Info
    Package Weight 3.0 lb
    The user manual for the Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual SB-6320T can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shinybow users keep a unique electronic library for Shinybow video extenders & repeaterss, where you can use our link to download the user manual for the Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual SB-6320T.

    The user manual lists all of the functions of the Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual SB-6320T, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shinybow service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shinybow SB-6320T HDMI HDBaseT Transmitter with Dual SB-6320T. User manuals are also available on the Shinybow website under Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.
