User manual for the Shure BLX24 Handheld Wireless System With Beta 58A BLX24/B58-H9

The user manual for the Shure BLX24 Handheld Wireless System With Beta 58A BLX24/B58-H9 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

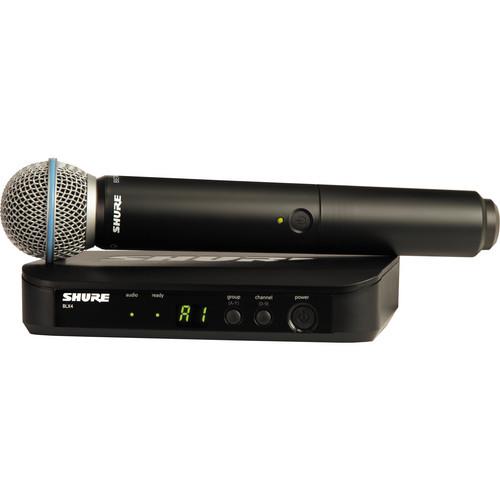

The BLX24 Handheld Wireless System with Beta 58A Mic from Shure includes a BLX4 wireless receiver and a BLX2 handheld transmitter with a Beta 58A microphone. This system is set to Shure's H9 frequency band between 512 to 542 MHz. The system has up to a 300' line-of-sight range of operation and is designed for easy setup.

The BLX4 receiver's one-touch QuickScan frequency selection finds the clearest available channel and tunes the unit to it. Its front-panel LCD display indicates the group and channel it is tuned to, allowing you to set the BLX2 transmitter to match. A dual-colored LED indicator displays green for normal audio levels and red to alert you if your levels are clipping. The unit has a microprocessor-controlled internal diversity antenna to prevent interference and dropouts.

Two included AA batteries provide The BLX2 transmitter with up to 14 hours of operation. You can use up to 12 compatible BLX systems simultaneously per frequency band.
If you own a Shure wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure BLX24 Handheld Wireless System With Beta 58A BLX24/B58-H9 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure BLX24 Handheld Wireless System With Beta 58A BLX24/B58-H9:
Specifications
  • BLX4 Single-Channel Wireless Receiver (H9: 512 - 542 MHz)
    Output 1x XLR Output
    1x 1/4" (6.35 mm) Output
    Output Impedance XLR: 200 ohms
    1/4": 50 ohms
    Audio Output Level XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
    1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
    RF Sensitivity -105 dBm for 12 dB SINAD, Typical
    Image Rejection >50 dB, Typical
    Housing Molded ABS
    Power Requirement 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive)
    Dimensions (H x W x D) 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm)
    Weight 8.5 oz (241 g)
    Packaging Info
    Box Dimensions (LxWxH) 13.5 x 12.0 x 3.8"
  • BLX2 Handheld Transmitter with SM58 Microphone (H9: 512 - 542 MHz)
    Transmitter
    Audio Input Level 0 dB Gain: -20 dBV Maximum
    -10 dB Gain: -10 dBV Maximum
    Gain Adjustment Range 10 dB
    RF Output 10 mW, Typical (Varies by Region)
    Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline
    Housing Molded ABS
    Dimensions (Ø x L) 2.1 x 8.8" (53 x 224 mm)
    Weight 7.7 oz (218 g)
    Microphone
    Frequency Response 50 Hz to 15 kHz
    Polar Pattern Cardioid
    Output Level -54.5 dBV/PA (1.85 mV)
    Packaging Info
    Box Dimensions (LxWxH) 11.1 x 5.2 x 3.1"
The user manual for the Shure BLX24 Handheld Wireless System With Beta 58A BLX24/B58-H9 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless systemss, where you can use our link to download the user manual for the Shure BLX24 Handheld Wireless System With Beta 58A BLX24/B58-H9.

The user manual lists all of the functions of the Shure BLX24 Handheld Wireless System With Beta 58A BLX24/B58-H9, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.
