User manual Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50

Operating instructions and pdf manual for use - Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50 User manual, User manual Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50, Shure, QLXD2/SM87A, Handheld, Wireless, Transm


User manual for Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50

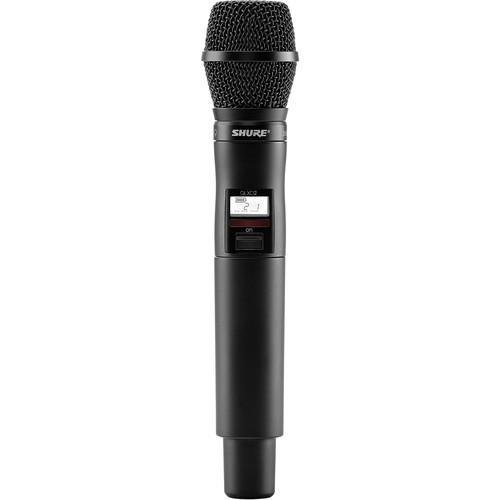

Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Transmitters
  • Safety instructions
  • Startup and operation of the wireless transmitters
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 488 USD
We recommend checking out our discussion threads on the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50, which address similar problems with connecting and setting up Wireless Transmitters Shure.



User manual for the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50

The user manual for the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Transmitters.

For capturing audio, the QLXD2/SM87A Handheld Wireless Microphone Transmitter by Shure is a good choice to get the job done. Featuring transparent 24-bit digital audio quality, it is used for wireless vocals in presentation spaces, music venues, houses of worship, DJ setups, and more. It features a 20Hz to 20kHz frequency response and has more than 60 available channels per frequency band. Powered by 2 AA batteries, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (328 ft.) range. All-metal construction ensures durability, and a wide selection of compatible microphone choices is ideal for your presentation.
If you own a Shure wireless transmitters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50:
Specifications
    RF Carrier Frequency Range H50: 534 to 598
    Working Range 328' (100 m)
    RF Tuning Step Size: 25 kHz, varies by region
    Image Rejection Better than 70 dB, typical
    RF Sensitivity −97 dBm at 10−5 BER
    Latency Less than 2.9 ms
    Frequency Response 20 Hz to 20 kHz
    Audio Dynamic Range System Gain @ +10: Better than 120 dB, A-weighted, typical
    Total Harmonic Distortion (THD) −12 dBFS input, System Gain @ +10: Less than 0.1%
    Polarity System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
    Operating Temperature Range 0° to 122°F (-18° to 50°C)
    Note: Battery characteristics may limit this range.
    Storage Temperature Range -20° to 165°F (-29° to 74°C)
    Note: Battery characteristics may limit this range.
    Mic Offset Range 0 to 21 dB (in 3 dB steps)
    Battery Type Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V
    Battery Runtime At 10 mW
    Shure SB900: up to 10 hours
    Alkaline: up to 9 hours
    Audio Input Configuration: unbalanced
    Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
    Note: Dependent on microphone type
    Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical
    Note: Dependent on microphone type
    Capsule SM87A
    RF Output Antenna Type: Integrated single band helical
    Occupied Bandwidth: Less than 200 kHz
    Modulation Type: Shure proprietary digital
    Power: 1 mW or 10 mW (varies by region)
    Housing Machined aluminum
    Dimensions (L x Diam) 10.1 x 1.5" (256 x 37 mm)
    Weight 12.2 oz (347 g) without batteries
    Shure QLX-D Wireless System: Hands On Review
    The user manual for the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50 can be downloaded in .pdf format if it did not come with your new wireless transmitters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless transmitterss, where you can use our link to download the user manual for the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50.

    The user manual lists all of the functions of the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50, all the basic and advanced features and tells you how to use the wireless transmitters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure QLXD2/SM87A Handheld Wireless Transmitter QLXD2/SM87=-H50. User manuals are also available on the Shure website under Pro Audio - Location Sound - Wireless Transmitters.
