User manual Shure SLX Series Wireless Microphone System SLX14/85-G4

Operating instructions and pdf manual for use - Shure SLX Series Wireless Microphone System SLX14/85-G4 User manual, User manual Shure SLX Series Wireless Microphone System SLX14/85-G4, Shure, SLX, Series, Wireless, Microphone, System, SLX14/85-G4,


User manual for Shure SLX Series Wireless Microphone System SLX14/85-G4

Shure SLX Series Wireless Microphone System SLX14/85-G4
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 659 USD
We recommend checking out our discussion threads on the Shure SLX Series Wireless Microphone System SLX14/85-G4, which address similar problems with connecting and setting up Wireless Systems Shure.



User manual for the Shure SLX Series Wireless Microphone System SLX14/85-G4

The user manual for the Shure SLX Series Wireless Microphone System SLX14/85-G4 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

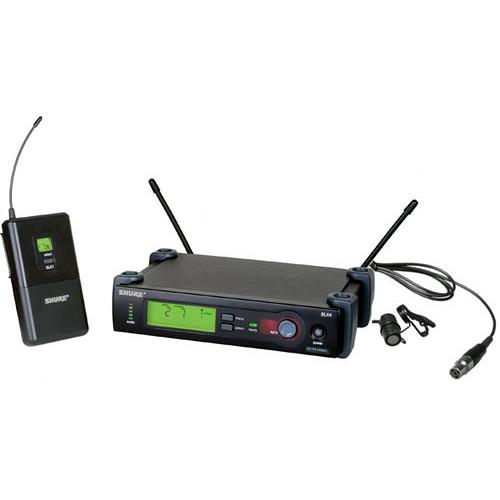

The Shure SLX Series wireless microphone system provides the performance and reliability needed for use in venues, sound reinforcement etc. The UHF system is available in up to 8 different bands, over a 24MHz spectrum. This system includes the SLX4 receiver, SLX1 bodypack transmitter and WL185 lavalier microphone.
If you own a Shure wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure SLX Series Wireless Microphone System SLX14/85-G4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure SLX Series Wireless Microphone System SLX14/85-G4:
System
Type of System Rack/Table Top Mountable UHF Diversity Wireless Lavalier System
RF Carrier Frequency Range G4/470 - 494MHz
Approx. Working Range 300' (100m)
Overall Frequency Response 45Hz - 15kHz, +/-2dB
Signal-to-Noise Ratio > 100dB A-weighted
# Of Channels 960 Selectable Frequencies
# Of Simultaneous Systems 12 (20 in regions where additional frequency bands are available)
Receiver
Type of Receiver SLX4 Rack/Table Top Mountable UHF Diversity Receiver
Type of Outputs XLR 3-pin male - 200 Ω
1/4" Phone - 1 kΩ
Headphone Monitoring No
Power Requirements 12 - 18VDC @ 150mA, supplied by external power supply
Battery Type/Approx. Life Not Applicable, Unit Does Not Operate on Batteries
Display LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status
Mounting Options Rack / Table Top Mount 1/2 Rack Space
Antenna Type Dual 1/4 wave antennas
Dimensions (HxWxD) 1.65 x 7.76 x 5.28" (42 x 197 x 134mm)
Weight 1lb 13oz (816g)
Transmitter
Type of Transmitter SLX1 UHF Bodypack
Type of Input Connector TA4 Input
Type of Microphone WL185 Lavalier Included with this Set
Polar Pattern Cardioid
Interchangeable Mic Heads Yes, Any of the Shure 'WL' Lavaliers, Headsets, or Instrument Cables (Optional) Can Be Used with this Transmitter
Battery Type/Approx. Life (2) AA size alkaline or rechargeable - approx 8 hours
Mute Switch Integrated On-Off / Mute Switch
Level Control 0dB & 10dB Gain Adjust switch
Antenna Type Flexible 1/4 Wave Whip Antenna
Display LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status
Dimensions (HxWxD) 4.25 x 2.50 x 0.75" (108 x 64 x 19mm)
Weight 3oz (81g)
Packaging Info
Package Weight 6.75 lb
Box Dimensions (LxWxH) 18.2 x 14.6 x 3.7"
The user manual for the Shure SLX Series Wireless Microphone System SLX14/85-G4 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless systemss, where you can use our link to download the user manual for the Shure SLX Series Wireless Microphone System SLX14/85-G4.

The user manual lists all of the functions of the Shure SLX Series Wireless Microphone System SLX14/85-G4, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure SLX Series Wireless Microphone System SLX14/85-G4. User manuals are also available on the Shure website under Pro Audio - Live Sound - Wireless Systems.
