User manual Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3

Operating instructions and pdf manual for use - Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3 User manual, User manual Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3, Shure, SLX1, Bodypack, Transmitter, Shure, SLX, Seri


User manual for Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Transmitters
  • Safety instructions
  • Startup and operation of the wireless transmitters
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 199 USD
We recommend checking out our discussion threads on the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3, which address similar problems with connecting and setting up Wireless Transmitters Shure.



User manual for the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3

The user manual for the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Transmitters.

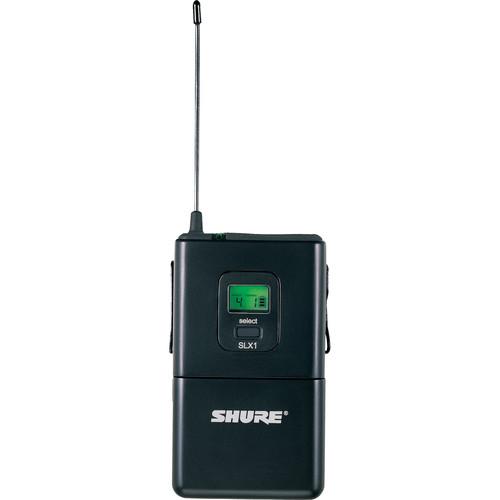

The Shure SLX1 Bodypack Transmitter is a designed for use with the Shure SLX series wireless microphone system. The transmitter is powered up to 8 hours on 2 AA size batteries. A 4-pin microphone input jack, accommodates any Shure microphone featuring a TA4 connection. The SLX1 features an infrared sensor, allowing the transmitter to remotely sync frequency settings with the receiver. An adjustable mic / 0 dB / -10 dB switch allows input from guitars, instruments and microphones.
If you own a Shure wireless transmitters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3:
Type of Transmitter SLX1 UHF Bodypack
# Of Channels 960 selectable frequencies
Type of Input Connector TA4-female input
Type of Microphone Not included
Polar Pattern Not applicable
Interchangeable Mic Heads Compatible with lavalier or headset microphones featuring TA4-female connection
Frequency Response 45 Hz - 15 kHz, +/-2 dB
Audio Input Level Mic: -10 dBV maximum
0 dB: +10 dBV maximum
-10 dB: + 20 dBV maximum
Gain Adjustment 30 dB
Input Impedance 1 MOhm
RF Output Power 10 - 30 mW
varies by region
Battery Type/Approx. Life 2 x AA size alkaline or rechargeable - approximately 8 hours
Mute Switch Integrated On-Off / Mute Switch
Level Control 0 dB & 10 dB Gain Adjust switch
Antenna Type Flexible 1/4 Wave Whip Antenna
Display LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status
Dimensions 4.25 x 2.50 x 0.75" (108 x 64 x 19 mm) HxWxD
Weight 3 oz (81 g)
Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 10.9 x 5.3 x 3.3"
The user manual for the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3 can be downloaded in .pdf format if it did not come with your new wireless transmitters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless transmitterss, where you can use our link to download the user manual for the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3.

The user manual lists all of the functions of the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3, all the basic and advanced features and tells you how to use the wireless transmitters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure SLX1 Bodypack Transmitter for Shure SLX Series SLX1-J3. User manuals are also available on the Shure website under Pro Audio - Live Sound - Wireless Transmitters.
