User manual Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4

Operating instructions and pdf manual for use - Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4 User manual, User manual Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4, Shure, SLX4, Diversity, UHF, Wireless, Microphone,


User manual for Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

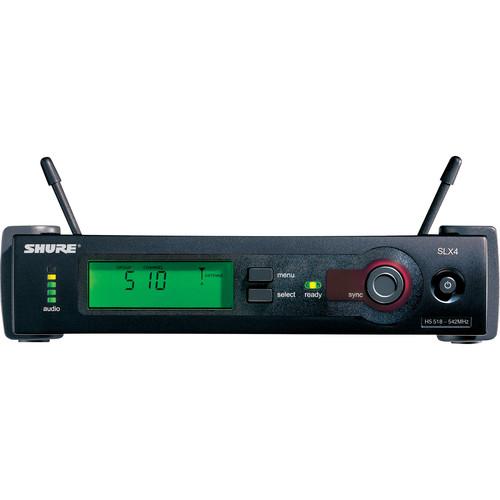

Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Receivers
  • Safety instructions
  • Startup and operation of the wireless receivers
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 380 USD
Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4 Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4 Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4
Click to enlarge image

We recommend checking out our discussion threads on the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4, which address similar problems with connecting and setting up Wireless Receivers Shure.



User manual for the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4

The user manual for the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Receivers.

The Shure SLX4 is a UHF wireless microphones receiver designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as transmitter battery status, audio level, and more.
If you own a Shure wireless receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4:
Type of Receiver UHF Diversity Half-Rack Mountable
RF Carrier Frequency Range L4: 638 - 662 MHz
Approx. Working Range 300' (100 m)
Overall Frequency Response 45 Hz to 15 kHz +/-2 dB
Sensitivity -105 dBm for 12 dB SINAD, typical
Dynamic Range > 100 dB A-weighted
# Of Channels 960 operating frequencies across a 24 MHz
Configuration Impedance balanced
Type of Output(s) XLR connection: 200 ohms
1/4" connection: 1 kOhm
Image Rejection > 70 dB, typical
Headphone Monitoring No
Power Requirements 12-18 VDC at 150 mA, supplied by external power supply
Battery Type/Approx. Life not applicable - external power only
Display Backlit LCD
Mounting Options Short and Long Rack-Mount Hardware Included
Antenna Type Dual 1/4 wave BNC type
Dimensions 1.65 x 7.76 x 5.26" (42 x 197 x 134 mm)
Weight 1.8 lb (816 g)
Packaging Info
Package Weight 6.35 lb
Box Dimensions (LxWxH) 18.2 x 14.5 x 3.7"
The user manual for the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4 can be downloaded in .pdf format if it did not come with your new wireless receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless receiverss, where you can use our link to download the user manual for the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4.

The user manual lists all of the functions of the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4, all the basic and advanced features and tells you how to use the wireless receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure SLX4 Diversity UHF Wireless Microphone Receiver SLX4-L4. User manuals are also available on the Shure website under Pro Audio - Live Sound - Wireless Receivers.
