User manual Shure ULX Series - Wireless Instrument Microphone ULXS14-G3

Operating instructions and pdf manual for use - Shure ULX Series - Wireless Instrument Microphone ULXS14-G3 User manual, User manual Shure ULX Series - Wireless Instrument Microphone ULXS14-G3, Shure, ULX, Series, Wireless, Instrument, Microphone,


User manual for Shure ULX Series - Wireless Instrument Microphone ULXS14-G3

Shure ULX Series - Wireless Instrument Microphone ULXS14-G3
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Guitar Accessories - Guitar Wireless
  • Safety instructions
  • Startup and operation of the guitar wireless
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
  • Price: 629 USD
We recommend checking out our discussion threads on the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3, which address similar problems with connecting and setting up Guitar Wireless Shure.



User manual for the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3

The user manual for the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar Accessories - Guitar Wireless.

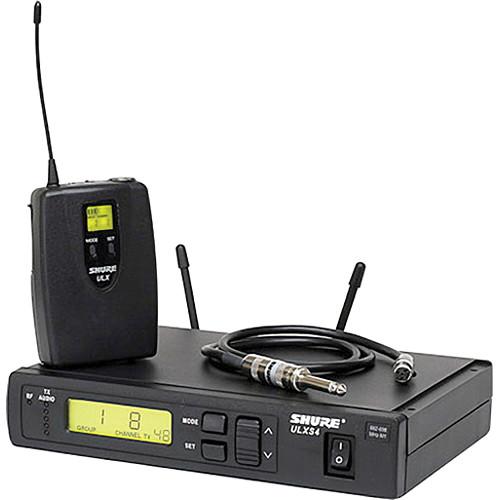

The Shure ULX Series wireless systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools, and businesses. The system includes the ULXS4 diversity receiver, ULX1 body-pack transmitter and WA302 instrument connecting cable.
If you own a Shure guitar wireless and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3:
System
Type of System Rack/Table Top Mountable UHF Diversity Wireless Instrument System
RF Carrier Frequency Range 554.000 to 865.000 MHz
Approx. Working Range 300 Feet (100m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference
Overall Frequency Response 25 Hz - 15 kHz, (±2 dB)
Signal-to-Noise Ratio Greater Than 90 dB
# Of Channels Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz)
# Of Simultaneous Systems Up to 20
Receiver
Type of Receiver ULXS4 Rack/Table-Top Mount Standard UHF Diversity Receiver
Type of Outputs Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection)
Headphone Monitoring No
Power Requirements 14 - 18 Vdc (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector!
Battery Type/Approx. Life Not Applicable, Unit Does Not Operate on Batteries
Display Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
Mounting Options Rack / Table Top Mount 1/2 Rack Space
Antenna Type Wire Type
Dimensions 1.72 x 8.56 x 6.52" (43 x 214 x 163mm) HxWxD
Weight 2.8 oz. (79 g) without Battery
Transmitter
Type of Transmitter ULX-1 Body-pack UHF Transmitter
Type of Input Connector TAF4 4-Pin Mini Connector
Type of Microphone Not Applicable, Microphone Not Included System Includes a WA-302 Guitar/Bass-to-Transmitter (TA4F-to-1/4" (TS) Jack) Connecting Cable
Polar Pattern Not Applicable, See Above
Interchangeable Mic Heads Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector.
Battery Type/Approx. Life Non-Rechargeable Type
9v Lithium Battery / 21 Hours (Recommended)
9v Alkaline Battery / 8 - 9 Hours (Recommended)
9v Carbon-Zinc Battery / 5 Hours (NOT Recommended)

Rechargeable Type
9v Ni-Cad Battery / 2 Hours (NOT Recommended)
9v Ni-MH Battery / 2.5 Hours (NOT Recommended)
Mute Switch Yes
Level Control Yes, 25 dB Gain Adjustment Range
Antenna Type Removable 1/2 Wave, Rear Mounted
Display Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Dimensions (WxDxH) 3.86 x 2.68 x 1.10" (96.5 x 67 x 26.7mm) HxWxD
Weight 2 lbs., 5 oz. (1049 g)
Packaging Info
Package Weight 4.4 lb
Box Dimensions (LxWxH) 18.3 x 14.6 x 3.7"
The user manual for the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3 can be downloaded in .pdf format if it did not come with your new guitar wireless, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure guitar wirelesss, where you can use our link to download the user manual for the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3.

The user manual lists all of the functions of the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3, all the basic and advanced features and tells you how to use the guitar wireless. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure ULX Series - Wireless Instrument Microphone ULXS14-G3. User manuals are also available on the Shure website under Pro Audio - Musical Instruments - Guitar Accessories - Guitar Wireless.
