User manual Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50

Operating instructions and pdf manual for use - Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50 User manual, User manual Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50, Shure, ULXD24D, Dual, Channel, Handheld, Wireles


User manual for Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50

Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50
  • Manufacturer: Shure
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Shure
  • Settings and expert assistance
  • Contact Shure service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50, which address similar problems with connecting and setting up Wireless Systems Shure.



User manual for the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50

The user manual for the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

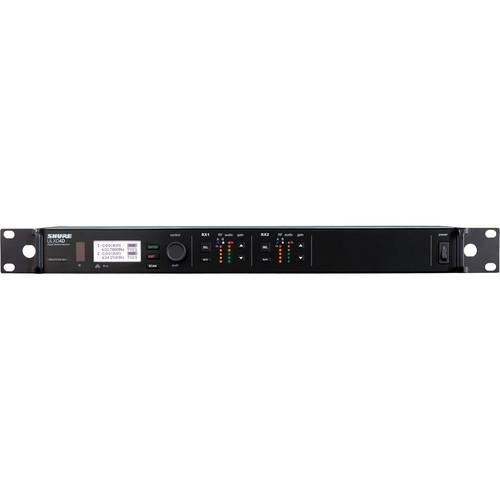

The Shure ULXD24D Dual Channel Handheld Wireless System with Beta 87A Mics L50 is designed for professional live sound reinforcement applications. The system consists of a dual-channel ULXD4D RF receiver and two ULXD2 handheld microphone transmitters with Shure Beta 87A capsules.

The receiver features 24-bit 48 kHz digital audio with 60 dB of adjustable gain per channel, a flat frequency response of 20 to 20,000 Hz and a dynamic range greater than 120 dB. A 64 MHz region-dependent overall tuning range ensures you will have ample channels on which to transmit. A single 6 MHz TV RF channel can accommodate up to 17 active transmitters at one time in regular mode or up to 47 transmitters in high-density mode. The receiver will automatically scan and prioritize the best frequencies on which to receive signal and will change frequencies to avoid RF interference.

For security, the system includes AES 256-bit encryption, which ensures that a receiver must be paired to a particular transmitter in order to decode the audio from that transmitter. Multiple receivers may be connected together via the unit's RF cascade ports, and advanced signal routing is available through Dante digital networked audio over Ethernet. The system comes with Shure's Wireless Workbench 6 software for controlling, coordinating, and monitoring multiple wireless systems. For connections, the receiver utilizes balanced XLR jacks and includes a mic/line output level switch.

The ULXD2 wireless handheld transmitter is a machined aluminum microphone body with a frequency response of 30 to 20,000 Hz, depending upon the attached interchangeable microphone cartridge. The device features frequency and power lockout. It includes a backlit LCD for easy controls, a 5 segment battery power gauge, and a selectable RF output power of 1, 10, or 20 mW. Using an integrated single-band helical antenna, the transmitter has an effective operating range of 300 feet, provided there are no physical obstacles or RF interference. You can obtain up to 11 hours of continuous use from two AA alkaline batteries. Alternatively, you can purchase Shure's SB900 lithium-ion battery pack which will last up to 12 hours on a single charge. The transmitter works with a selection of Shure's interchangeable microphone cartridges such as the SM58, SM58 Beta, and SM86, among others. This particular system includes Beta 87A microphone cartridges.
If you own a Shure wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50:
Specifications
    • Shure ULXD4D Dual-Channel Wireless Receiver (L50)
      RF Input Specs
      Spurious Rejection >80 dB, typical
      Connector BNC
      Impedance 50 Ω
      Bias Voltage(s) 12-13 V DV, 150 mA maximum, per antenna
      Audio Output
      Gain Range -18 to 42 dB in 1 dB step (plus mute setting)
      Configuration XLR: Balanced (1= ground, 2= audio +, 3= audio -)
      Impedance 100 Ω
      Full Scale Output Line: 18 dBV
      Mic: -12 dBV
      Switch Mic/Line: 30 dB pad
      Phantom Power Protection Yes
      Networking
      Network Interface Dual port Ethernet 10/100 Mbps, 1 Gbps
      Network Addressing Capability DHCP or Manual IP
      Ethernet Maximum Cable Length: 328' (100 m)
      Cascade Output Connector Type: BNC
      Configuration: Unbalanced, passive
      Impedance: 50 Ω
      General
      Power Requirements 100 to 240 V AC, 50-60 Hz, 0.26 A maximum
      Dimensions (H x W x D) 1.73 x 18.97 x 10.79" (44 x 482 x 274 mm)
      Weight 7.4 lb (3.36 kg)
      Packaging Info
      Box Dimensions (LxWxH) 27.25 x 17.25 x 3.5"
    • 2 x Shure ULXD2 Handheld Transmitter with Beta 87A Microphone Capsule (L50)
      Transmitter
      Mic Offset Range 0 to 21 dB (in 3 dB Steps)
      Frequency Band L50: 632 to 696 MHz
      Audio Input Configuration: Unbalanced
      Maximum Input Level 1 kHz @ 1% THD
      RF Output Antenna Type: Integrated Single-Band Helical
      Occupied Bandwidth: < 200 kHz
      Modulation Type: Shure Proprietary Digital
      Power: 1 mW, 10 mW, 20 mW (Varies by Region)
      Battery Type 2x LR6 AA Batteries 1.5 V
      Shure SB900 Rechargeable Li-Ion
      Battery Life Shure SB900: > 11 Hours @ 10 mW
      Alkaline Batteries: > 11 Hours @ 10 mW
      Housing Machined Aluminum
      Dimensions (Ø x L) 2 x 10.1" (51 x 256 mm)
      Weight 12 oz (340 g)
      Microphone
      Type Condenser (Electret Biased)
      Frequency Response 50 Hz to 20 kHz
      Polar Pattern Supercardioid
      Sensitivity −52.5 dBV/Pa (2 mV), 1 Pascal=94 dB SPL @ 1kHz, open circuit voltage
      Maximum SPL 140.5 dB @ 1 kHz @ 1% THD, 1 kΩ load
      Signal to Noise Ratio 70.5 dB referenced @ 94 dB SPL @ 1 kHz (S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted)
      Dynamic Range 117 dB @ 1 kHz @ 1 kΩ load
      Clipping Level -6 dBV (0.5 V), @ 1 kHz @ 0.25% THD, 1 kΩ load
      Self Noise 23.5 dB (typical, equivalent SPL; A-weighted)
      Packaging Info
      Box Dimensions (LxWxH) 12.756 x 4.803 x 3.465"
    How to Set Up a system
    The user manual for the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50 can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Shure users keep a unique electronic library for Shure wireless systemss, where you can use our link to download the user manual for the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50.

    The user manual lists all of the functions of the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Shure service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Shure ULXD24D Dual Channel Handheld Wireless ULXD24D/B87A=-L50. User manuals are also available on the Shure website under Pro Audio - Live Sound - Wireless Systems.
