User manual for the Shure ULXD4Q Quad-Channel Digital Wireless Receiver ULXD4Q-X52
The user manual for the Shure ULXD4Q Quad-Channel Digital Wireless Receiver ULXD4Q-X52 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Receivers.

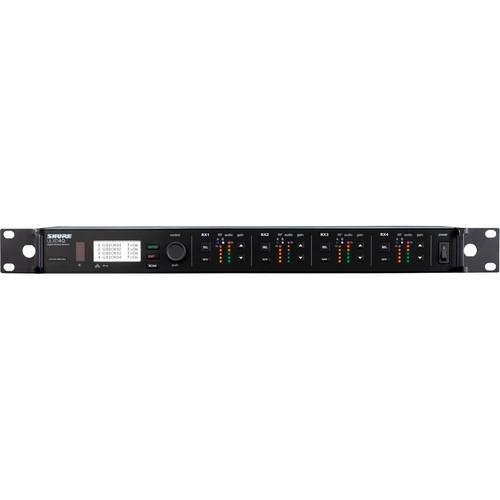

The ULXD4Q Quad-Channel Digital Wireless Receiver from Shure features 4 wireless channels with independent gain control, LED meters, and XLR outputs. It is tuned to Shure's X52 band and operates between 902 to 928 MHz. The ULXD4Q is capable of handling 24-bit/48 kHz audio and can provide AES-256-bit encryption to assure your wireless signal is kept secure.
The dual Ethernet ports allow multiple units to share RF signal as well as be networked together and controlled via Shure's Wireless Workbench 6 Software. The Ethernet ports also provide compatibility with the Dante digital networking system. Each of the four channels can provide up to 60 dB of adjustable gain. The dual antennas are capable of digital predictive switching diversity to reduce interference and signal dropouts. The unit can be rack mounted with the included rack hardware.
|
If you own a Shure wireless receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Shure ULXD4Q Quad-Channel Digital Wireless Receiver ULXD4Q-X52 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Shure ULXD4Q Quad-Channel Digital Wireless Receiver ULXD4Q-X52:
| RF Input | Spurious Rejection: > 80 dB, Typical
Connector Type: BNC
Impedance: 50 Ω
Bias Voltage: 12 to 13 V DC, 150 mA Maximum, Per Antenna | | Cascade Output | Connector Type: BNC (For Connecting of One Additional Receiver in the Same Band)
Configuration: Unbalanced, Passive
Impedance: 50 Ω
Insertion Loss: 0 dB | | Audio Output | Gain Adjustment Range: -18 to 42 dB (in 1 dB Steps, Plus Mute Setting)
4x Balanced XLR Outputs
Impedance: 100 Ω
Line Setting: 18 dBV
Mic Setting: -12 dBV
Mic/Line Switch: 30 dB Pad
Phantom Power Protection: Yes | | Network | Network Interface: Dual Port Ethernet 10/100 Mbps, 1 Gbps, Dante Digital Audio
Network Addressing Capability: DHCP or Manual IP Address
Maximum Cable Length: 328' (100 m) | | Power Requirement | 100 to 240 V AC, 50 to 60 Hz, 0.32 A Maximum | | Dimensions (H x W x D) | 1.7 x 18.9 x 10.7" (44 x 482 x 274 mm) | | Weight | 7.6 lb (3.45 kg) | |
