User manual Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT

Operating instructions and pdf manual for use - Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT User manual, User manual Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT, Sightmark, Laser, Dual, Shot, Reflex, Sight, Dovetai


User manual for Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT

Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT
  • Manufacturer: Sightmark
  • Basic description and contents of package
  • Product classification: Optics - Riflescopes & Sights - Red Dot/Holographic Sights
  • Safety instructions
  • Startup and operation of the red dot/holographic sights
  • Tips for setting up your Sightmark
  • Settings and expert assistance
  • Contact Sightmark service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
We recommend checking out our discussion threads on the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT, which address similar problems with connecting and setting up Red Dot/Holographic Sights Sightmark.



User manual for the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT

The user manual for the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT provides necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Red Dot/Holographic Sights.

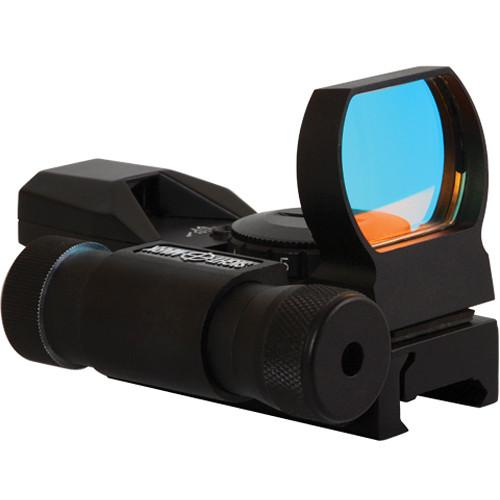

The Laser Dual Shot Reflex Sight from Sightmark is a lightweight and rugged aiming system for hunting rifles and carbines. The unmagnified optics and wide viewing angle help the operator maintain situational awareness. An integrated dovetail mount is designed to seamlessly attach the Laser Dual Shot to an 11mm rail-equipped rifle. Four reticle patterns and seven brightness settings enable operators to customize the reticle for the target and ambient lighting condition. The 5mW red dot laser delivers additional aiming performance and target designation capability. Adjustable windage/elevation, multicoated lens, and parallax free optics make the Laser Dual Shot a full-featured weapon sight ready for recreational applications.
If you own a Sightmark red dot/holographic sights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT:
Laser Type 5 mW, 635 nm red dot (2" dot diameter at 100 yd)
Magnification 1.0x
Objective Lens Diameter 34 x 24 mm
Field of View 105.2 ft (32 m) at 100 yd
Eye Relief Infinite
Exit Pupil Diameter 32 x 24mm
Reticle 3 MOA dot, crosshair, 10 MOA dot crosshair, 65 MOA circle with 3 MOA dot
Mounting System 11mm dovetail
Maximum Windage/Elevation Adjustment 1 MOA clicks
Weatherproofing Water resistant
Power Source Sight: (1) CR2032 battery

Laser: (3) AG13 batteries

Runtime Sight: Up to 25 hours of continuous operation at room temperature

Laser: Up to 2 hours of continuous operation at room temperature

Operating Temperature 14 to 122°F (-10 to 50°C)
Dimensions 3.16 x 2.1 x 1.4" (8 x 5.3 x 3.5 cm)
Weight 5.7 oz (161.6 g)
The user manual for the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT can be downloaded in .pdf format if it did not come with your new red dot/holographic sights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sightmark users keep a unique electronic library for Sightmark red dot/holographic sightss, where you can use our link to download the user manual for the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT.

The user manual lists all of the functions of the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT, all the basic and advanced features and tells you how to use the red dot/holographic sights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sightmark service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sightmark Laser Dual Shot Reflex Sight (Dovetail) SM13002-DT. User manuals are also available on the Sightmark website under Optics - Riflescopes & Sights - Red Dot/Holographic Sights.
